Beckhoff KL3202 BUS Terminal
Used
In stock15 unitsReady to ship
Bus Terminal
A compact and reliable bus terminal for resistance temperature measurement, supporting multiple RTD sensor types and offering high accuracy, electrical isolation, and seamless integration into Beckhoff K-bus automation systems.AutomationBeckhoffBUSI/OIndustrialInputK-BusKL3202MeasurementModulePLCResistanceRTDTemperatureterminal
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

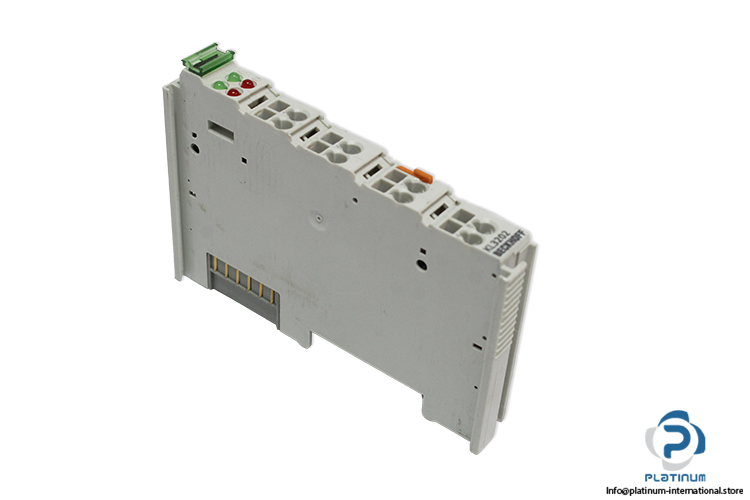

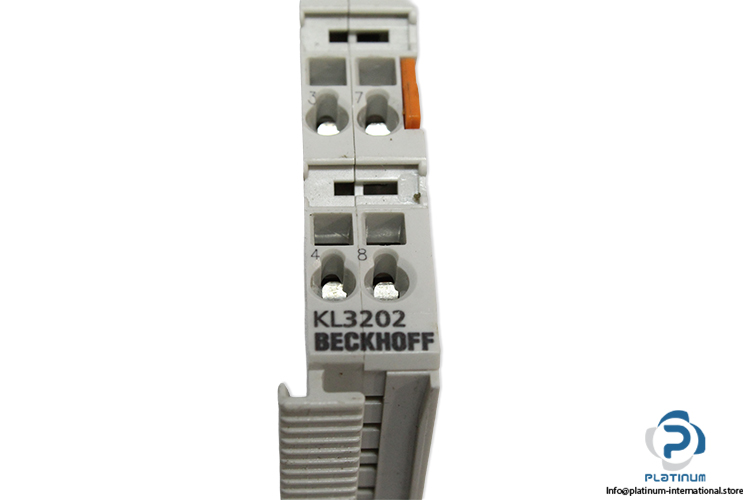

BECKHOFF KL3202 Bus Terminal
A high-precision bus terminal designed for resistance temperature measurement in industrial automation systems. The KL3202 supports a wide range of RTD sensors and resistance measurements, providing accurate data acquisition and reliable performance in demanding environments. Manufacturer: BECKHOFF
Type: Bus Terminal
Model: KL3202

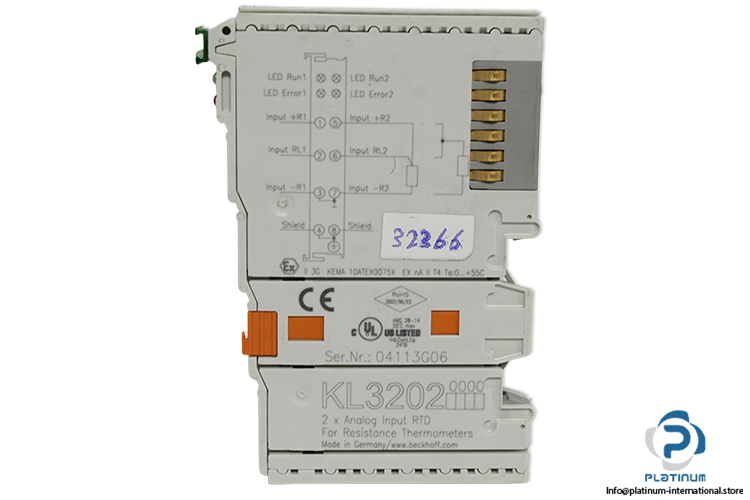

Serial No.: 04113006
| Number Of Inputs | 2 |
| Power Supply | Via the K-bus |
| Technology | 2-/3-wire |
| Sensor Types | Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120, Ni1000, Resistance Measurement (e.g. Potentiometer, 10 Ω / 1.2/5 kΩ) |
| Measuring Range | -200 / +850°C (Pt Sensors); -60 / +250°C (Ni Sensors) |
| Connection Method | 2- or 3-wire (Default: 3-wire) |
| Conversion Time | 250 ms |
| Measuring Current | Typ. 0.5 mA |
| Electrical Isolation | 500 V (K-bus / Signal Voltage) |
| Current Consumption Power Contacts | “ (No Power Contacts) |
| Current Consumption K-bus | Typ. 60 mA |
| Bit Width In Process Image | Input: 2 × 16 Bit Data (2 × 8 Bit Control/Status Optional) |
| Configuration | No Address Setting, Configuration via Bus Coupler or Controller |
| Special Features | Open-Circuit Recognition |
| Operating Temperature | -25 to +60°C |
| Protection Rating / Installation Position | IP20 / Variable |
| Approvals / Markings | CE, CCC, UL, ATEX, IECEx, DNV |
| Plug-in Wiring Level | For All KSxxxx Bus Terminals |
