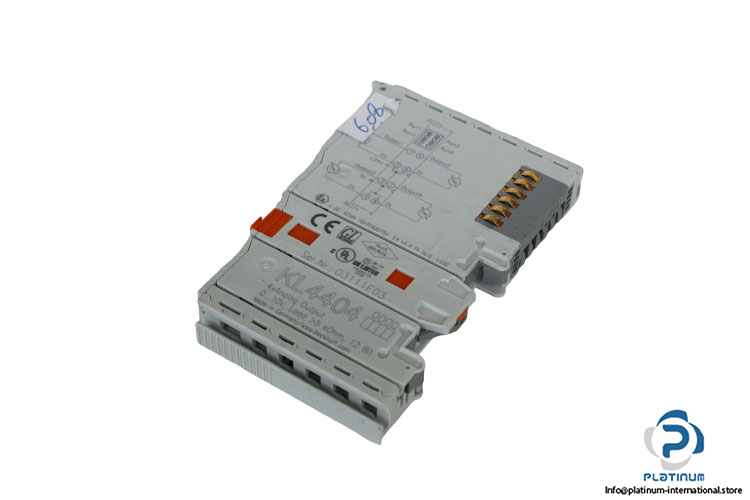

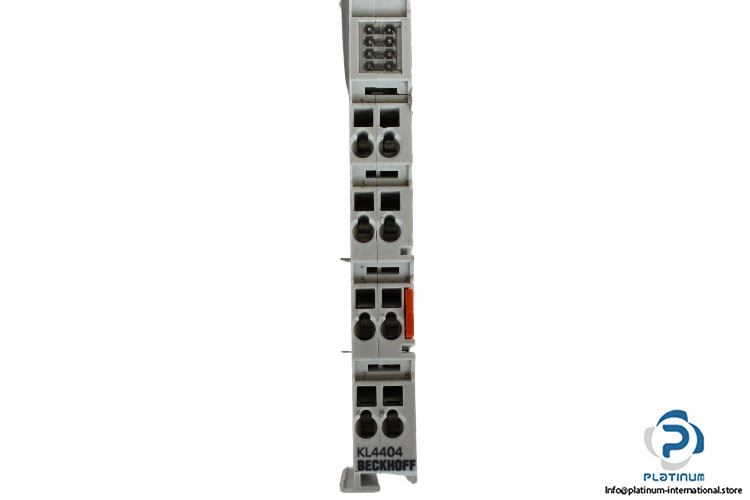

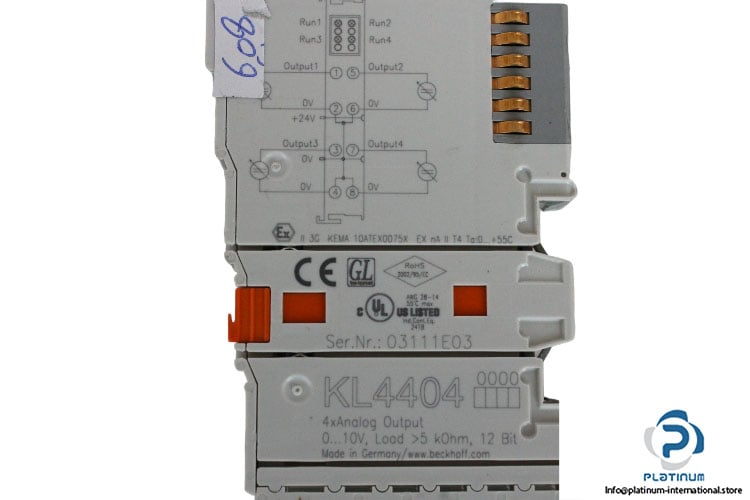

Beckhoff KL4404 BUS Terminal

Manufacturer: Beckhoff

Type: Bus Terminal

Model: KL4404

Signal voltage: 0 … 10 V

Load: > 5 kΩ (short-circuit proof)

Resolution: 12 bit

Electrical isolation: 500 V (K-bus/signal voltage)

Current consumption K-bus: typ. 20 mA

Number of outputs: 4 Analog output

Technology: single-ended

Operating Temperature: 0 … +55 °C

Degree of Protection: IP20

Type of protection: Explosion protection EX

Housing material: polycarbonate

Dimensions: 12 x 100 x 68 mm
