Beckhoff KS 9186 Potential Distribution Terminal
Used
In stock2 unitsReady to ship
Potential Distribution Terminal
Beckhoff KS9186 potential distribution terminal with 12 mm housing, 8 x 24 V outputs, DIN rail installation, and ATEX/IECEx certified for reliable automation power distribution.24vAtexAutomationBeckhoffBlockCertifiedDINDistributionIECExIndustrialKS9186PotentialPowerrailterminal
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

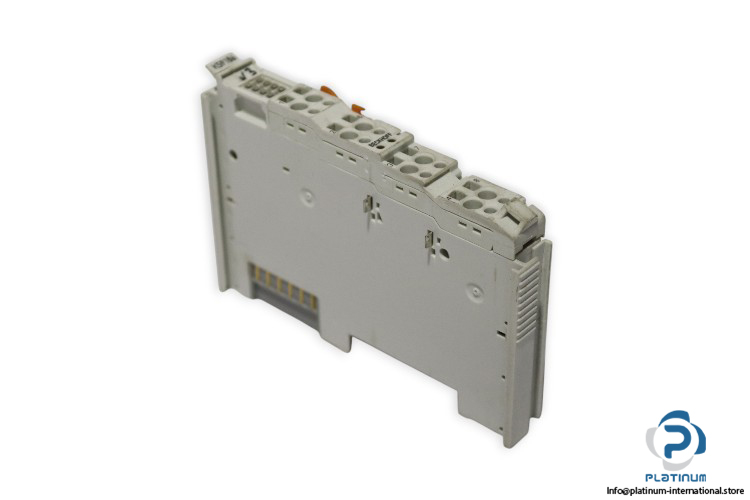

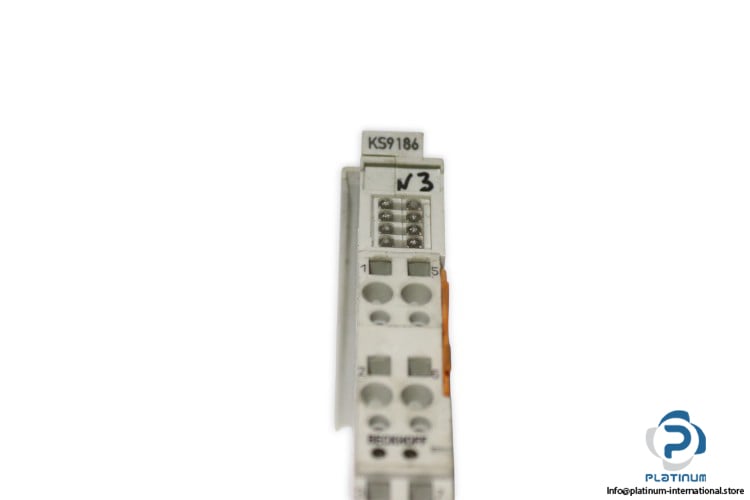

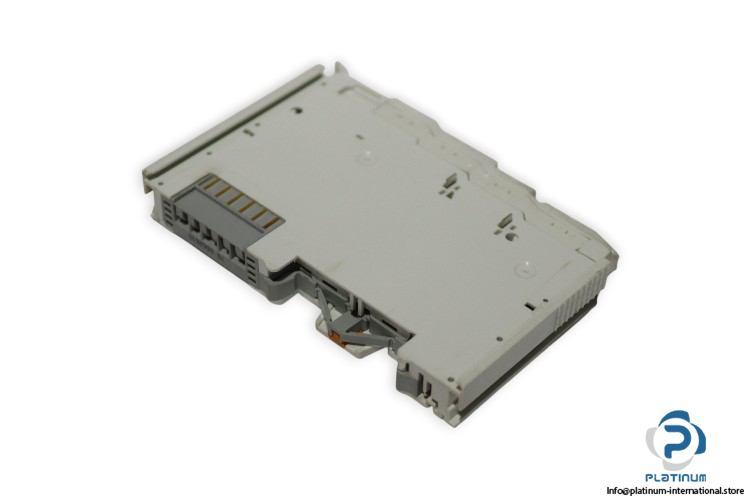

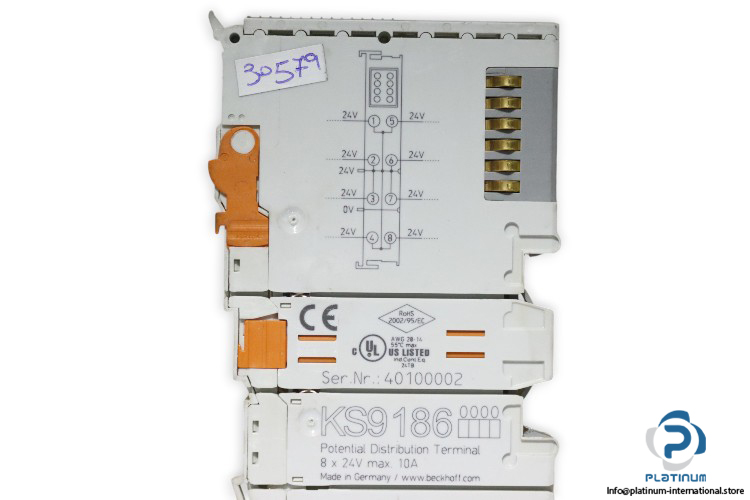

Beckhoff KS9186 Potential Distribution Terminal
The Beckhoff KS9186 is a compact potential distribution terminal designed for efficient and reliable distribution of 24 V power in automation systems. With a slim 12 mm housing and multiple connection options, it is built for space-saving installation and dependable operation.
Manufacturer: BECKHOFF
Type: Potential Distribution Terminal
Model: KS9186
SN: 40100002
| Housing Width | 12 mm |
| Number of Outputs | 8 x 24 V contact |
| Connection Facility to Additional Power Contact | 8 |
| Special Features | 8 x 24 V connection |
| Operating Temperature | -25 / +60°C |
| Ex Marking ATEX | II 3 G Ex ec IIC T4 Gc |
| IECEx | Ex ec IIC T4 Gc |
| Material | Polycarbonate |
| Installation | On 35 mm DIN rail, conforming to EN 60715 with lock |
| Side by Side Mounting | Double slot and key connection |
| Current Load Power Contacts | Imax: 10 A |
| Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm |
