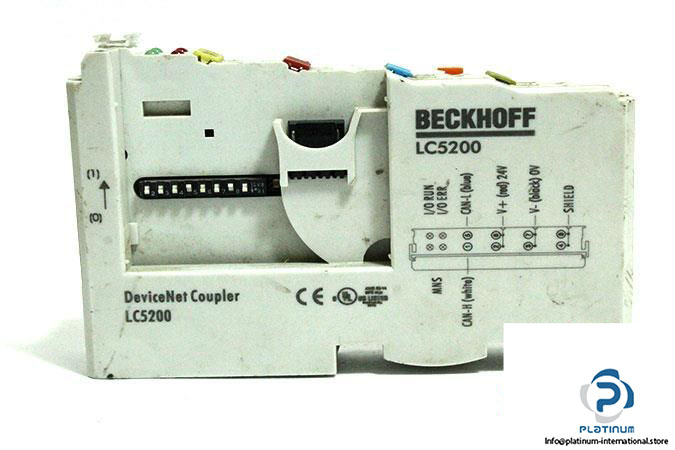

Beckhoff LC 5200 BUS Coupler

Manufacturer: BECKHOFF

Type: DEVICENET Bus Coupler

Model: LC 5200

Its functions correspond to those of the BK5210 DeviceNet Bus Coupler in relation to operation with Bus Terminals and to the fieldbus properties. Its particularly suitable for use in small, low-price stations.

Number of I/O stations: 64

Data transfer rate/cable length: 125 kbaud/500m, 250 kbaud/250m, 500 kbuad/100m.

No. of bus terminals: 64

Power supply: 24 V DC

Current supply K-bus: 500 mA

Bus interface: connection via bus terminal

Power contacts: max. 24 V DC/ max. 10 A

Operating temp.: 0…+55 °C

Weight: 100 g

Protection: IP2

Condition: Used
