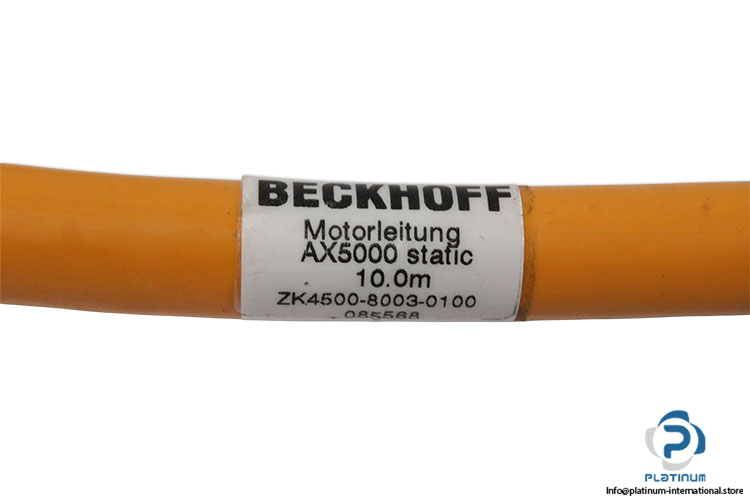

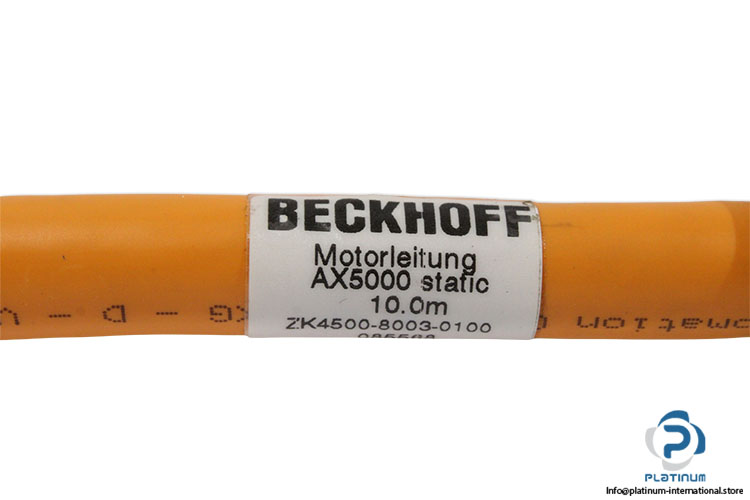

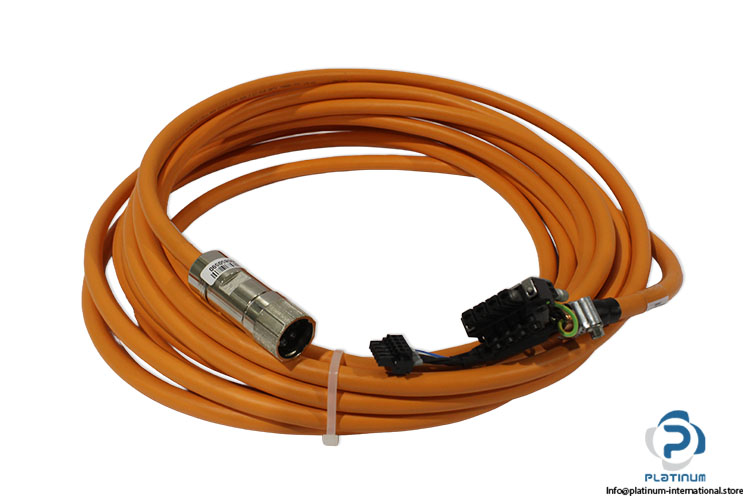

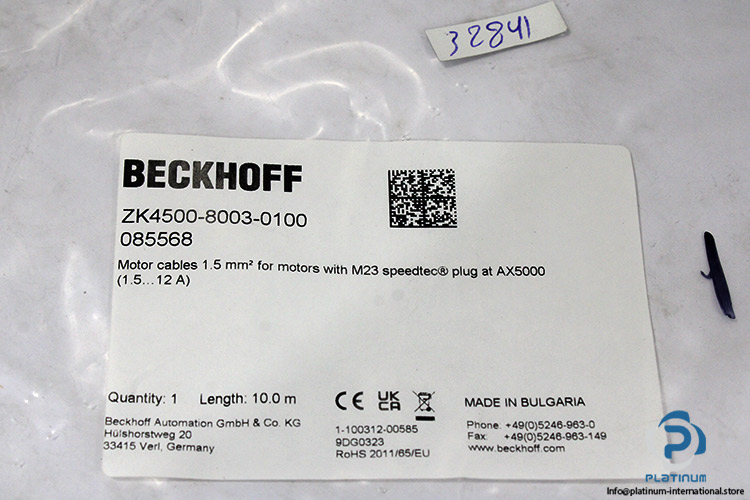

Beckhoff ZK4500-8003-0100 Motor Cable
New
In stock10 unitsReady to ship
BECKHOFF ZK4500-8003-0100 Motor Connection Cable Industrial motor connection cable with M23 female connector, 10 m cable length, PVC jacket, and integrated power and signal transmission for BECKHOFF servo motor applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Part No. | 085568 |
| Cable length | 10 m |

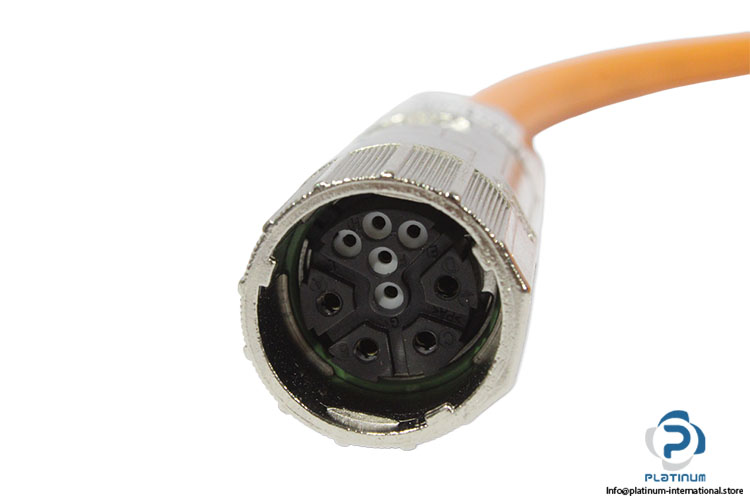

| Connector 1 | 9-Pins |Female,M23 |
| Connector 2 | 4- Wires / Male |

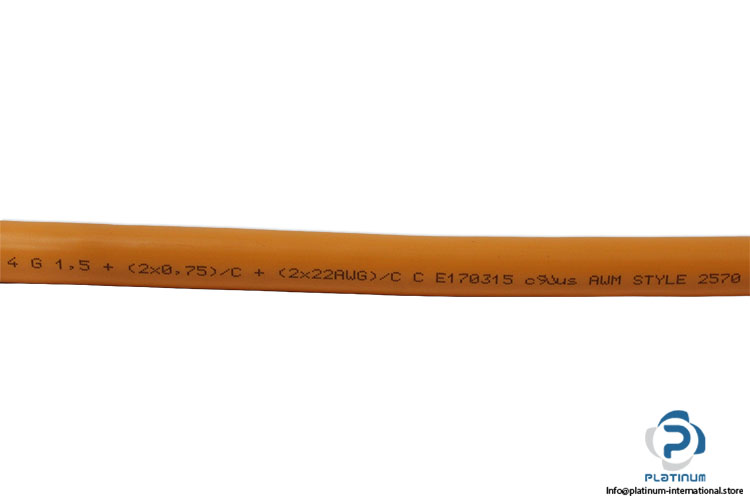

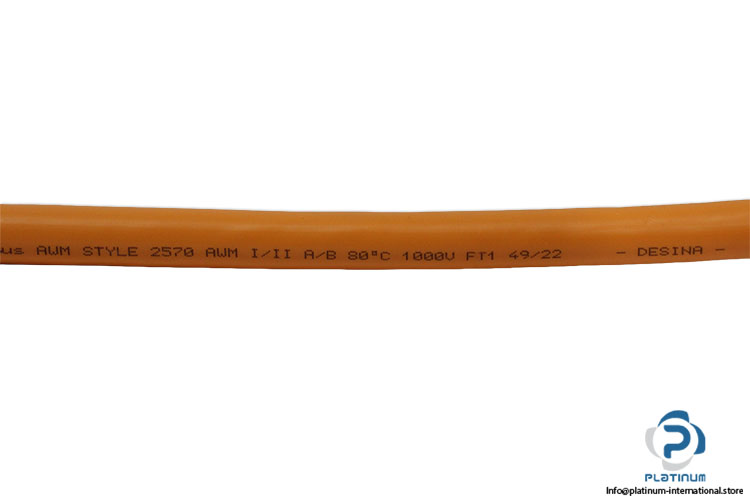

| Cable information | (2x0,75)/C + <2x22AWG)/C C E170315 cSous AWM |
| Motor cables Used for | motors with M23 speedtec® plug at AX5000 |
| Connector type, Head A | plug |
| Contact type, Head A | female |
| Number of positions (face), Head A | Power: 3+PE, Signal: 5 |
| Mating cycles, Head A | 500 |
| Wire termination, Head A | crimp connection |

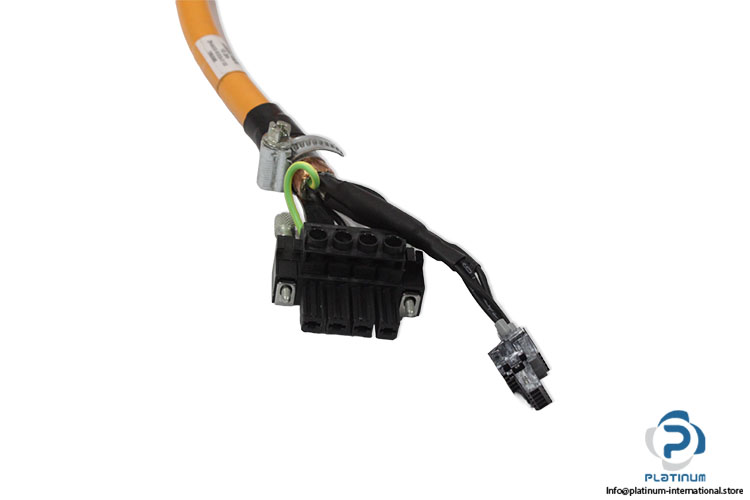

| Installation size, Head B | Pitch dimension 7.62 mm |
| Connector type, Head B | plug |
| Contact type, Head B | female |
| Number of positions (face), Head B | 4-pin |
| Mating cycles, Head B | 25 |
| Installation size, Head D | Pitch dimension 3.50 mm |
| Connector type, Head D | plug |
| Contact type, Head D | female |
| Number of positions (face), Head D | 5-pin |
| Mating cycles, Head D | 25 |
| Wire termination, Head D | Clamping yoke connection |
| Max. wire cross-section , Head D | AWG28…AWG14 (0.2 mm²…1.5 mm²) |
| Operating voltage, Head D | max. 1000 V AC (UL) |
| Cross-section (power), Head D | 1.50 mm² (approx. AWG16) |
| Cross-section (signal), Head D | AWG22 (approx. 0.34 mm²) |
| Use | fixed installation |
| Material jacket | PVC (polyvinyl chloride) |
| Min. bending radius, fixed installation | 5 x outer cable diameter |
| Suitable for | AM883x,AM8x4x up to AM8x6x (up to winding code P),AL8000,ALxxxx at AL2250-0002,AX8108,AX8206 |
| Stock Key | JO-004 |
| Condition | New |
| SKU | 1099454 |
| Weight | 2,54 |
