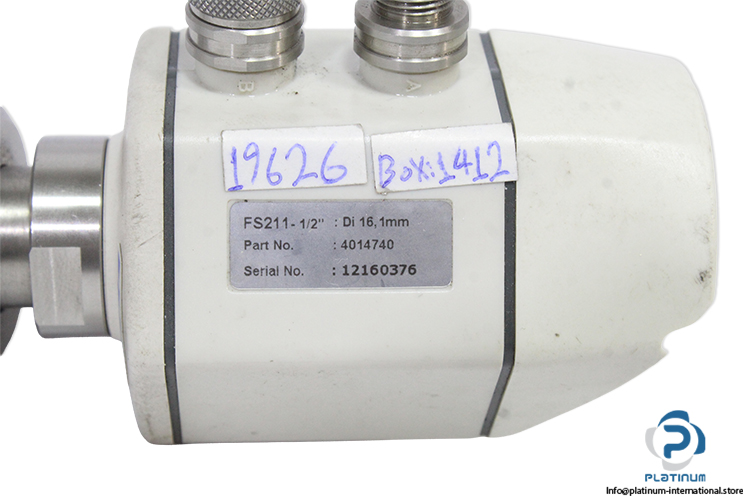

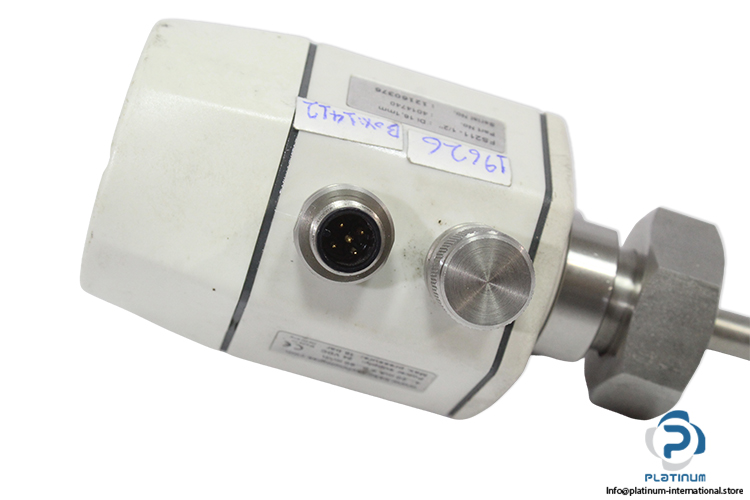

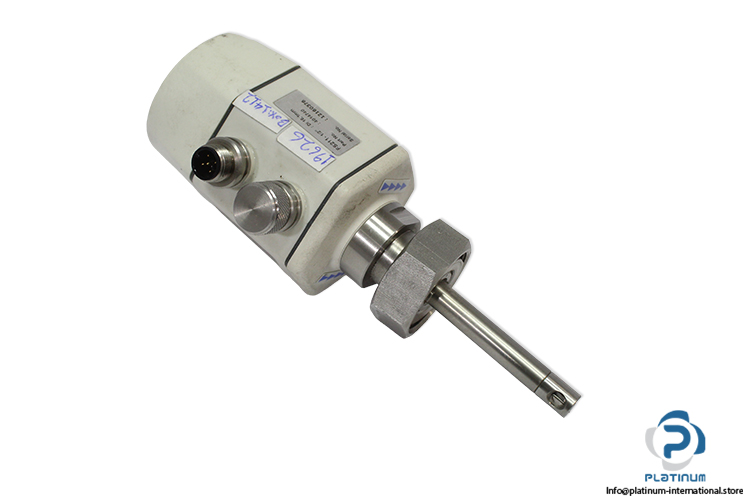

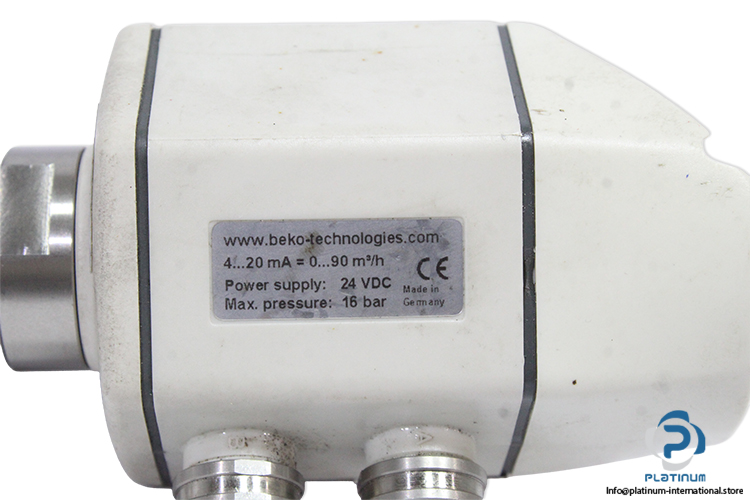

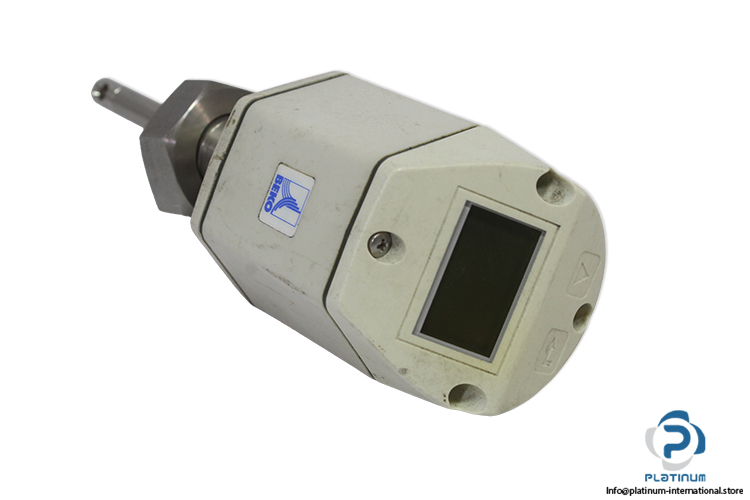

Beko FS 211-1/2” Flow Sensor
Used
In stock2 unitsReady to ship
Flow Sensor The BEKO FS 211-1/2” flow sensor provides accurate calorimetric measurement of air and gas flow, consumption, and velocity with a 4–20 mA output and 24 VDC supply.
211-1/224VDC4-20mAAirBekoCalorimetricDeviceflowFSGasIndustrialIP65MeasurementmonitoringOutputSensorSensorsSystem
New
In stock
This product is also available brand new
View New Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Part No. | 4014740 |
| Serial No. | 12160376 |
| Internal Diameter | 16.1 mm |
| Media | Air, gases |
| Measured Parameters | Flow, consumption and velocity |
| Measuring Range | 0.12 … 52.98 cfm |
| Max. Pressure | 16 bar |
| Measuring principle | Calorimetric measurement |
| Sensor | Pt45,Pt1000 |
| Sealing measuring unit/measuring Section | O-ring (0.08 x 0.83 inches |
| Mounting Thread Connection | G ½ |
| Supply Voltage | 24 VDC |
| Analogue output | 4…20 mA |
| Application Temperature Range | 32… 122 °F |
| Protection class | IP65 |
| Material housing | PlasticsPC+ABS |
| Material sensor tube | Stainlesssteel 1.4301 |
| Condition | Used |
| SKU | 1096815 |
| Weight | 0,3 |
