Belden RKC 8/9 Sensor Actuator Connector
New
In stock25 unitsReady to ship
Sensor Actuator Connector

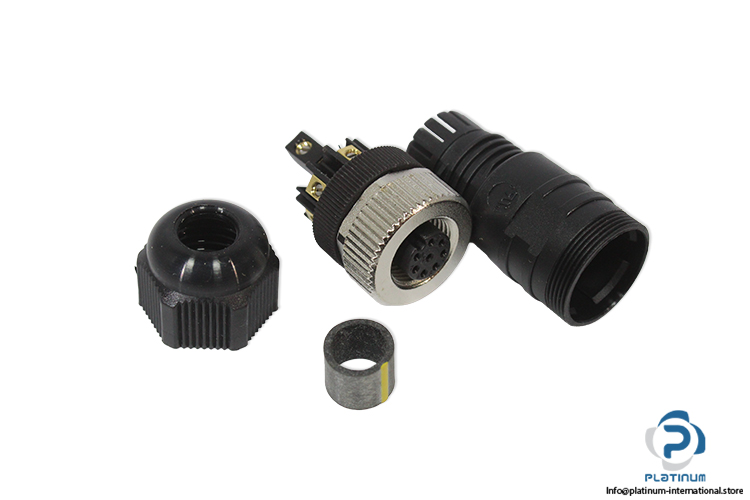

BELDEN RKC8/9 M12 field attachable female connector with 8 pins, A-coding, screw terminal connection, IP65/IP67 protection, and 30 V AC/DC rating for industrial automation applications.8aActuatorAttachableAutomationBeldenCodedConnectorFieldHirschmannIndustrialLumbergM12pinRKC8/9Sensor
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

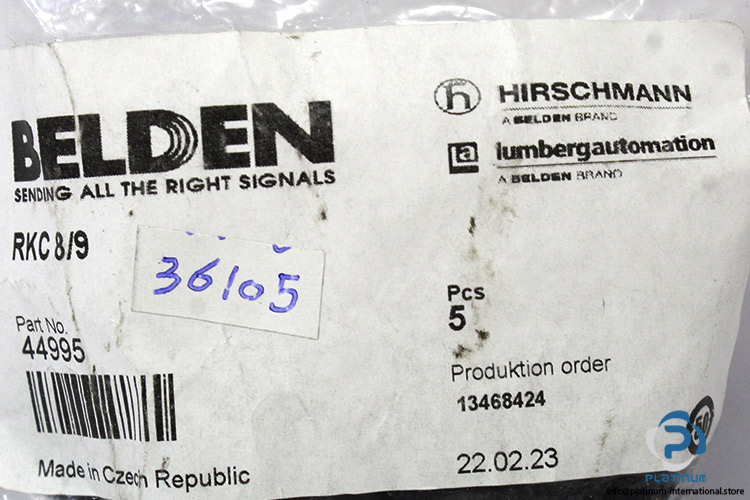

| Part No. | 44995 |
| Code | 13468424 |
| Product Family | Sensor / Actuator Connectors |
| Side 1 Product Sub Family | M12 Standard |
| Connector Type | Field Attachable |
| Side 1 Type of Contact / Gender | Female |
| Connector Design | Straight |
| Number of Pins | 8 |
| Coding, Side 1 | A |
| Attachment Type | Coupling Nut |
| Type of Connection | Screw Terminal |
| Voltage Rating | 30 V |
| Rated Impulse Voltage | 0.8 kV |
| Operating Voltage | 30 V AC/DC |
| Current Rating | 2 A |
| Contact Resistance | ‰¤ 10 mOhm |
| Insulation Resistance | ˃ 10^9 Ohm |
| Mating Cycles | ‰¤ 100 |
| Maximum Wire Cross Section | max. 0.50 mm² |
| Cable Gland | PG9 |
| Strain-Relief | Clamping Cage |
| Suitable Cables | Ø6 “ Ø8 mm |
| Ambient Temperature (Operation) | -25°C to +90°C |
| Operating Temperature (UL) | max. 65 °C |
| Protection Degree / IP Rating | IP65, IP67 |
| Design Standard | IEC 61076-2-101 |
| Pollution Degree | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Clearance / Creepage Distance | DIN EN 60664-1 (2008/01); VDE 0110-1 |
| Overvoltage Category | III acc. to DIN EN 60664-1 (VDE 0110-1) |
| Contact Base Material | CuZn |
| Side 1 Contact Plating | Cu/Au |
| Contact Bearer Material | PA-GF |
| Items per Set | 5 |
| Condition | New |
| Stock Key | JO-004 |
