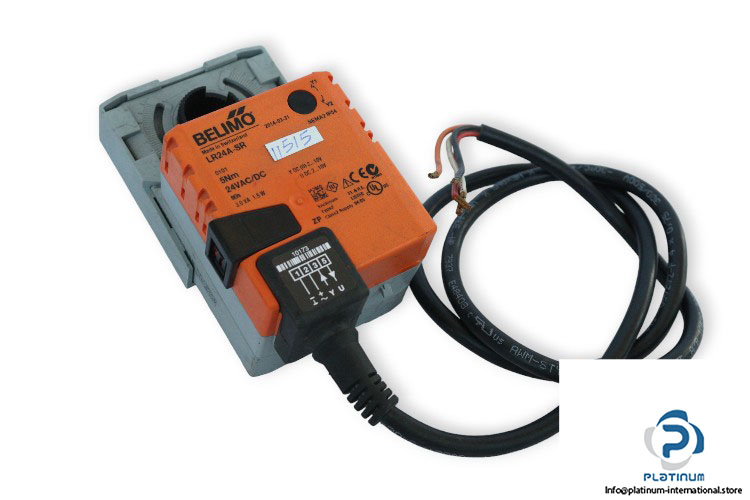

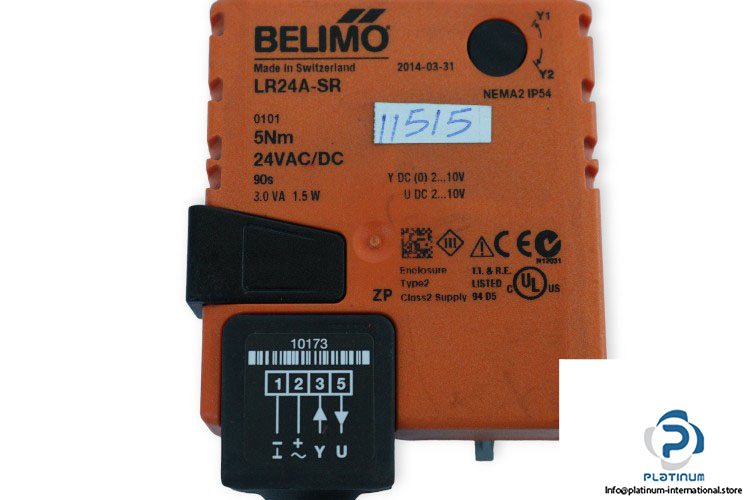

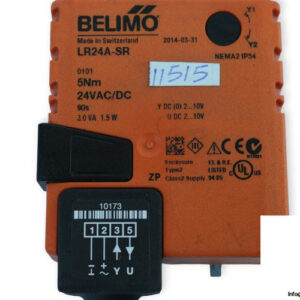

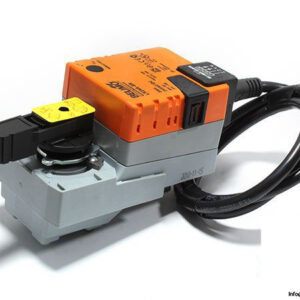

Belimo LR24A-SR Modulating Rotary Actuator

Manufacture: Belimo
Type: Modulating rotary actuator for ball valves
Model: LR24ASR

Application: For use in stationary heating, ventilation and air conditioning systems
Torque: 5 Nm
Nominal Voltage: 24 V AC/DC (19.2…28.8 V AC / 19.2…28.8 V DC)
Frequency: 50/60 Hz
Power consumption in operation: 1.5 W
Power consumption in rest position: 0.4 W
Power consumption for wire sizing: 3 VA
Operating Range Y: DC 2 … 10 V
Position Feedback U: DC 2 … 10 V
Running Time: 90 s / 90°

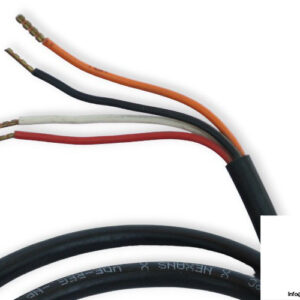

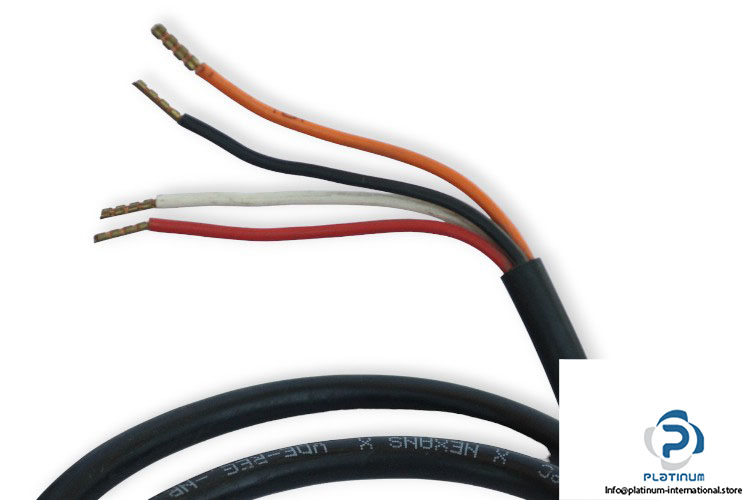

Connection: Cable 1 m, 4x 0.75 mm²
Degree of Protection: IP54
Ambient Temperature: -30 … +50 °C
Dimensions: 71 x 85 x 160 mm
