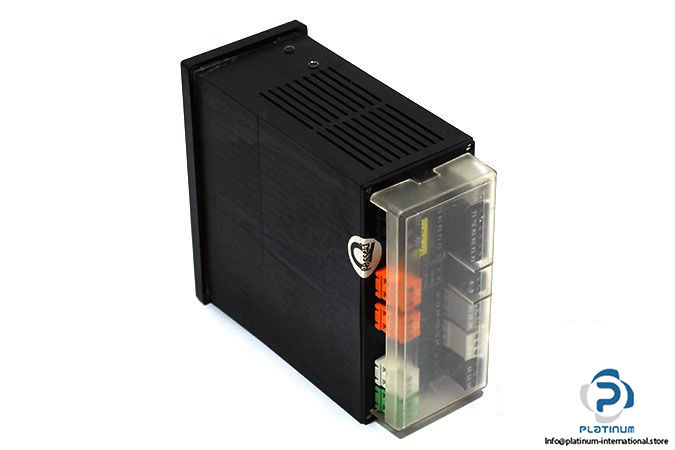

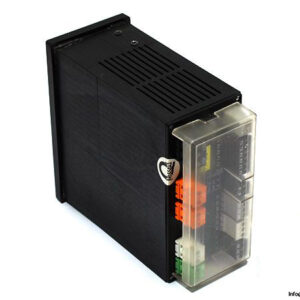

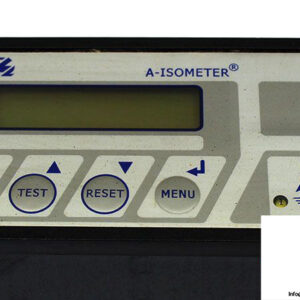

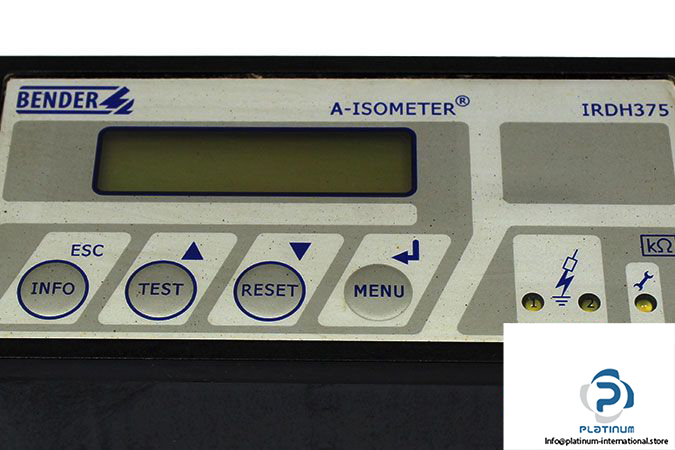

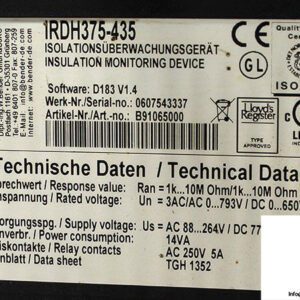

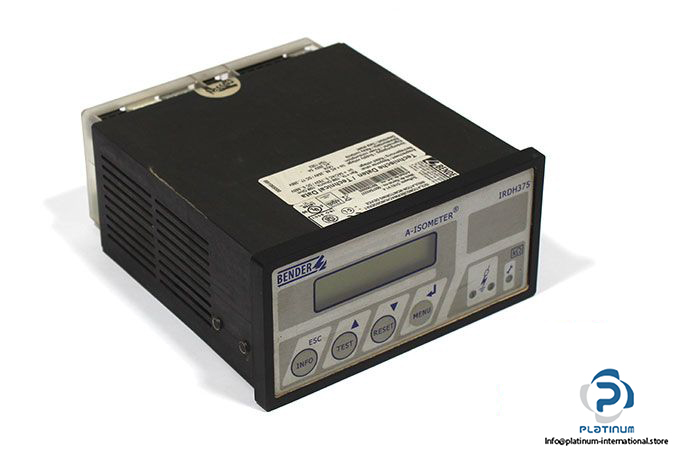

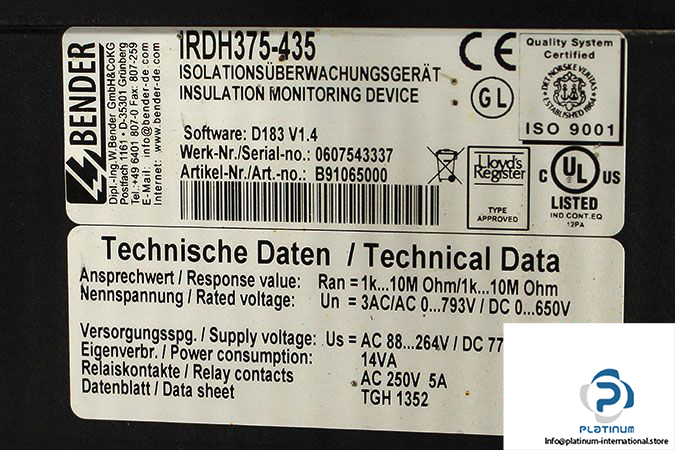

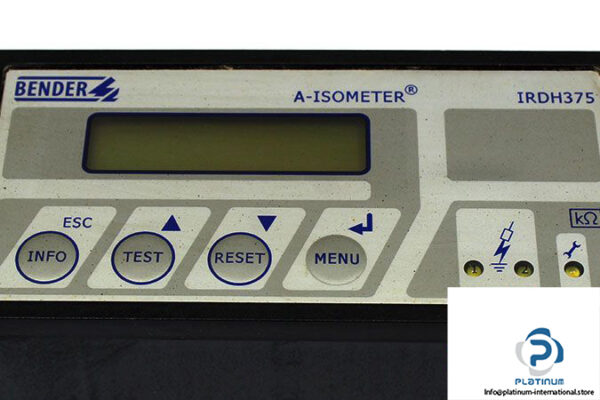

Bender IRDH375-435 Insulation Monitoring Device FOR Unearthed

Manufacturer: Bender

Type: Insulation Monitoring Device for Unearthed

Model: IRDH375-435

Art No: B91065000

Supply Voltage

• AC: 88…264 V
• DC: 77…286 V

Rated Voltage

• AC: 3 Phase 0…793 V
• DC: 0…650 V

Output External kΩ Indication: 0…400 µA

Response Value: 1k…10M Ω

Power Consumption: 14 VA

Relay Contacts: 250 V AC / 5 A

Ambient Temperature: -10…50 °C

Dimensions: 162 x 72 x 143 mm

Weight: 0.61 kg
