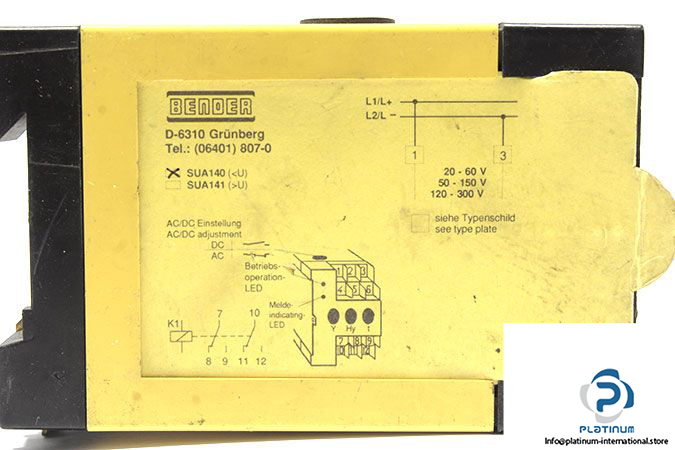

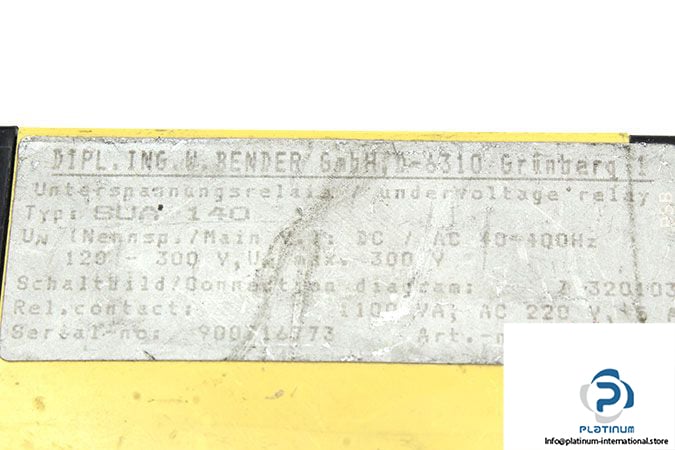

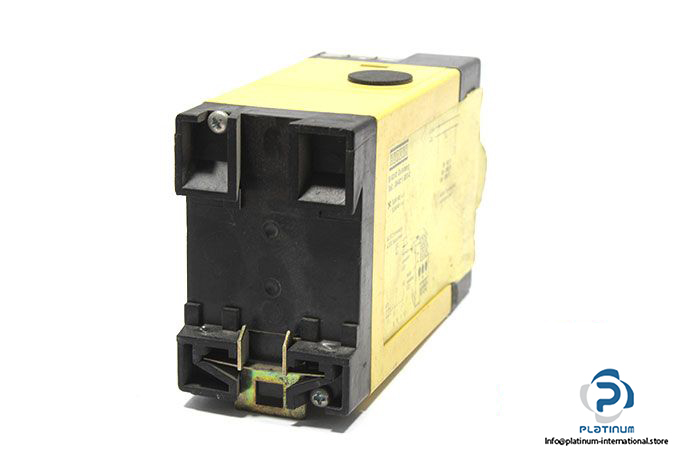

Bender SUA140 Undervoltage Relay

Manufacturer: BENDER ‎

Type: Under voltage relay

Model: sua140

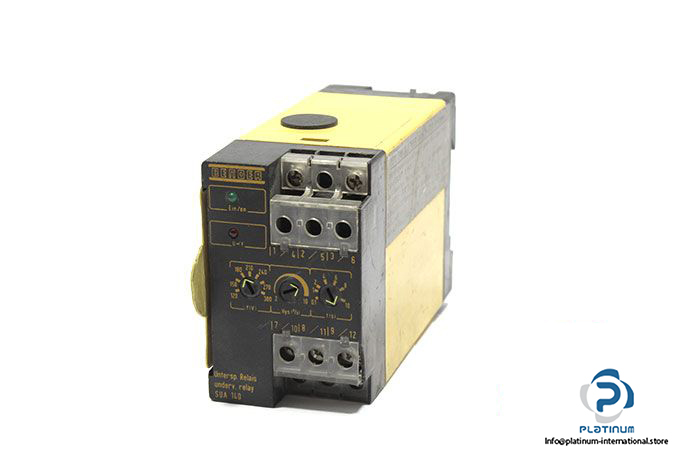

If the monitored voltage falls below the adjusted response value “Y” the red indication-LED signals “V<Y” and at the end of the adjusted response time "t" the output relay K1 reacts.

If the adjusted response value together with the adjusted hysteresis “Hy” is exceeded, the output relay reacts and the red indication-LED extinguishes at the end of the switch-back delay of approx. 200 ms

Nominal insulation voltage: AC 380 V

Contact circuits: AC 250 V

Insulation group: C

Test voltage: 2500 V

Switch capacity: max. 33 W, 1100 VA

Nominal contact voltage: 230 V

Permanent current: 5 A

Break capacity

at AC 230 V and cos. phi = 0,4: 3 A

 at DC 110 V and L/R = 0:  0.3 A

Weight: 0.17 kg
