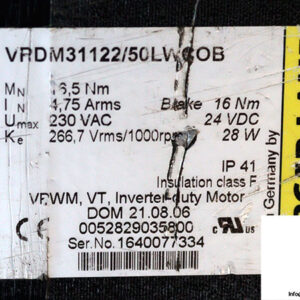

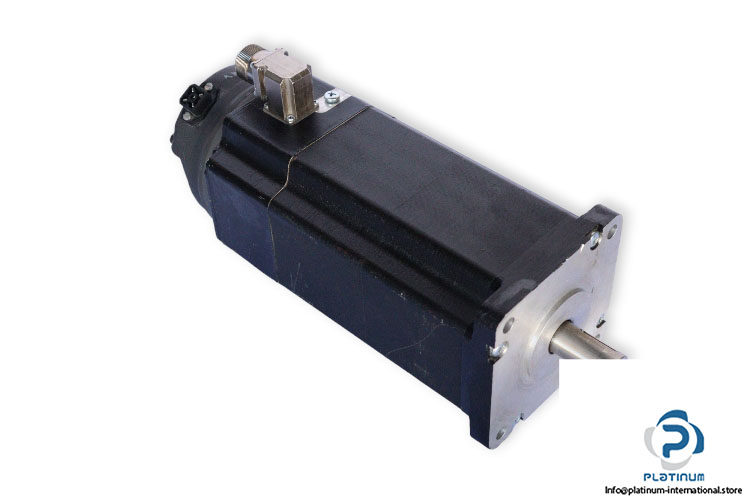

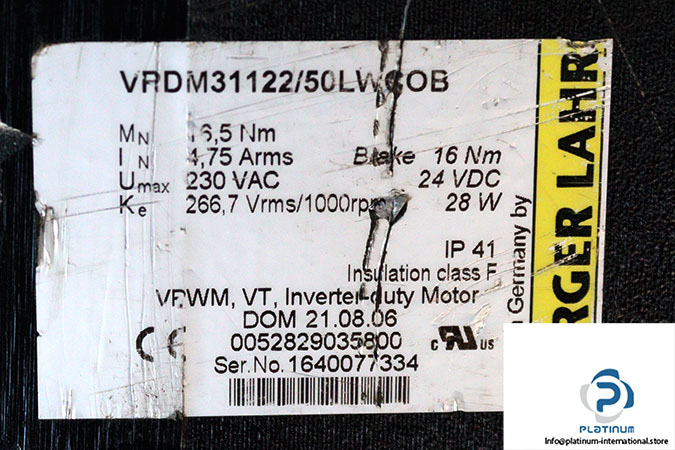

Berger Lahr VRDM31122/50LWCOB 3-PHASE Stepping

Manufacturer: BERGER LAHR
Type: 3-PHASE STEPPING MOTORS
Model: VRDM 31122/50LWCOB

Size (flange): 110 mm
Motor length: 228 mm
Shaft diameter: 19 mm
Pole pair count: 50
Max. Voltage: 230 V AC
Nominal voltage: 325 VDC
Constant voltage: 266.7 Vrms/1000 rpm
Rated Current: 4.75 Arms
Rated Torque: 16.5 Nm
Holding torque M_H: 19.7 Nm
Rotor inertia: 16 kgcm²
Connection type: connector
Protection class: IP41
Thermal Class: F

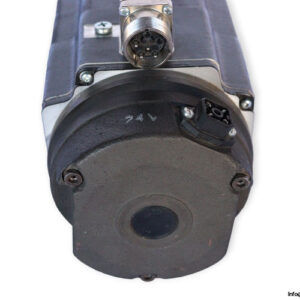

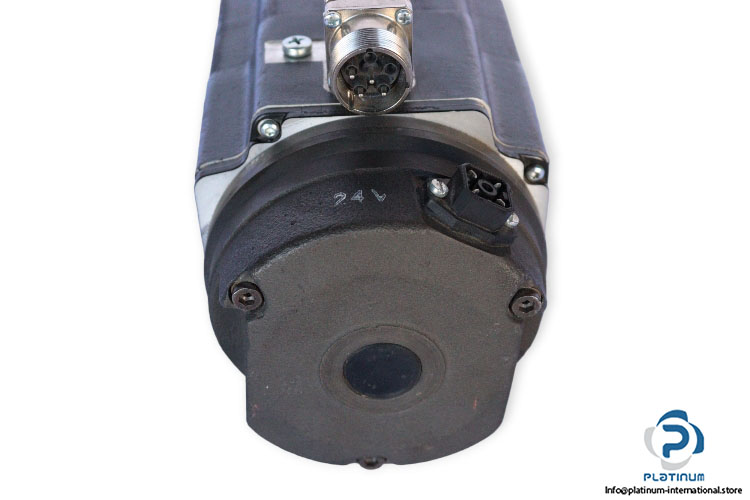

ATTACHMENT:

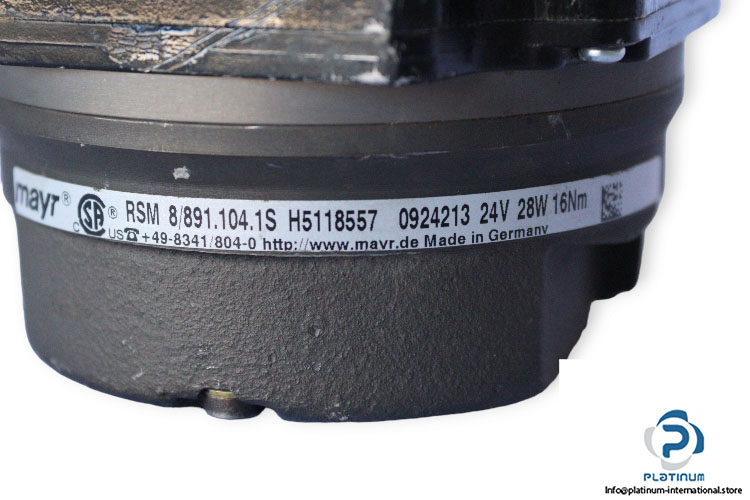

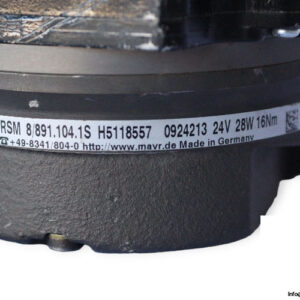

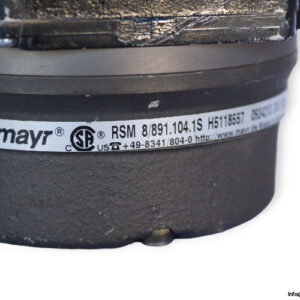

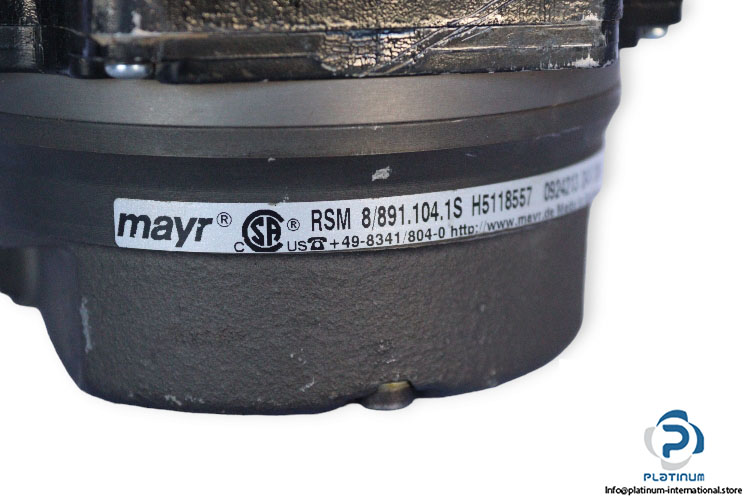

MAYR RSM RSM 8/891.104.1 S H5118557 BRAKE

Manufacturer: MAYR
Type: BRAKE
Model: RSM 8/891.104.1 S H5118557

Brake Voltage: 24 V DC
Brake Power: 28 W
Brake Torque: 16 Nm
