Bernstein C2-U1Z ST Limit Switch
New
In stock15 unitsReady to ship
33,33$
Limit Switch
BERNSTEIN C2-U1Z ST compact limit switch with plunger actuator, 250 VAC rating, and IP20 protection, ideal for accurate and durable position detection in industrial environments.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

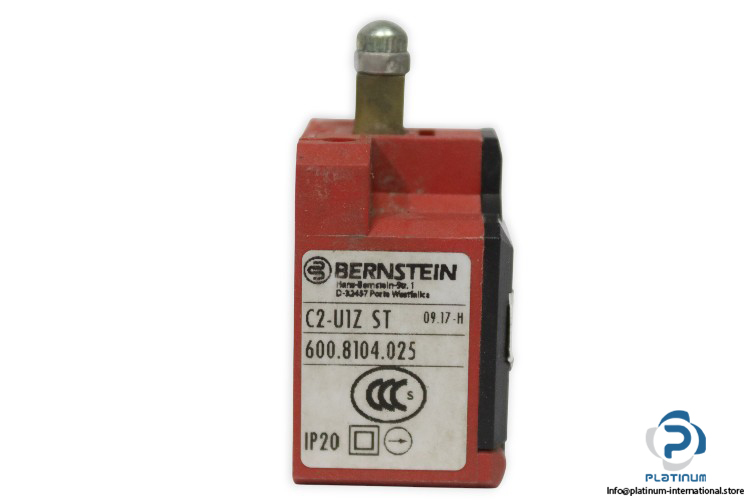

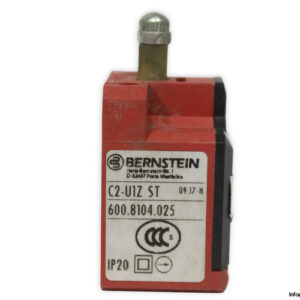

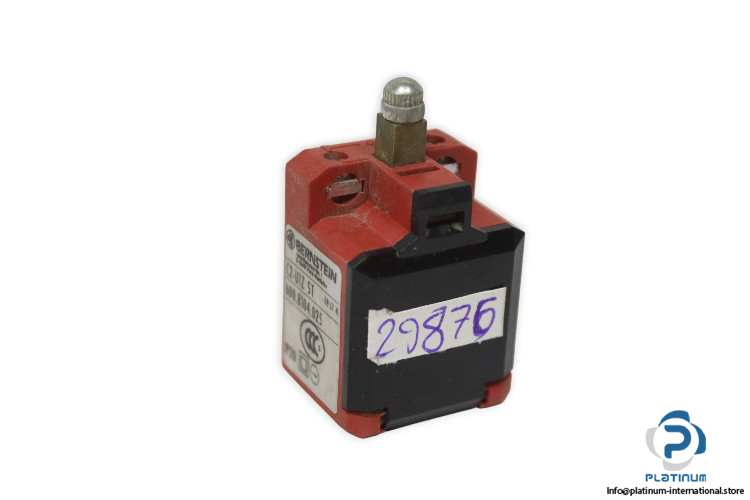

BERNSTEIN C2-U1Z ST Limit Switch
The BERNSTEIN C2-U1Z ST is a compact and durable limit switch designed for precise position detection in industrial applications. Built with a robust PBT enclosure and high-quality components, it ensures reliable operation even under demanding environmental conditions.
Manufacturer: BERNSTEIN
Type: Limit Switch
Model: C2-U1Z ST
MRN: 600.8104.025
Series: C2
Ref No.: 09.17-h
| Enclosure | PBT, glass fibre reinforced |
| Cover | PC, black |
| Actuator Type | Plunger |
| Ambient Air Temperature | -30°C / +80°C |
| Contact Type | 1NC-contact, 1NO-contact |
| Switch Frequency | Max. 100/min |
| Mounting | From the top 2xM4, from the front 2xM3 |
| Connection Type | 4 screw connections (M3.5) |
| Conductor Cross-section | Single core 0.5“1.5mm² / Litz wire with connector sleeve 0.5“1.5mm² |
| Max. Voltage | 250 VAC |
| Cable Entry Size | Rectangle 8.5x3.5 mm |
| Max. Enduring Current | Ith 10 A |
| Max. Inrush Current | According to IEC 947-5-1 |
| Protection Class | IP20 |
| Dimensions | 21 × 26 × 34 mm |

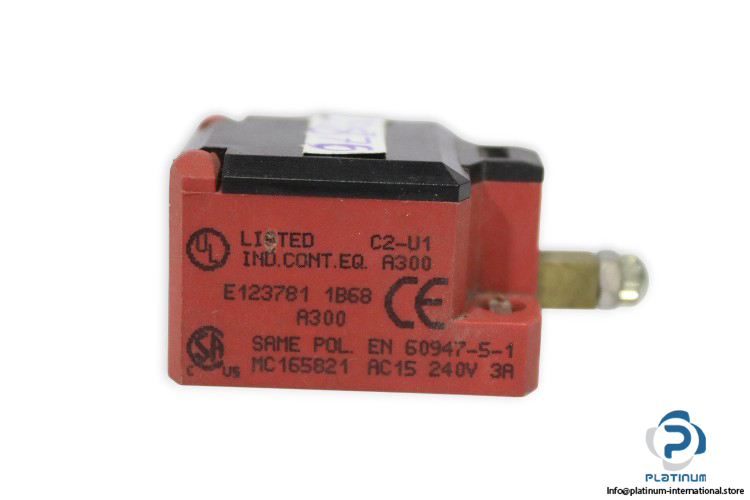

| Standard | E123781, CSA, CE, EN 60947-5-1 |
