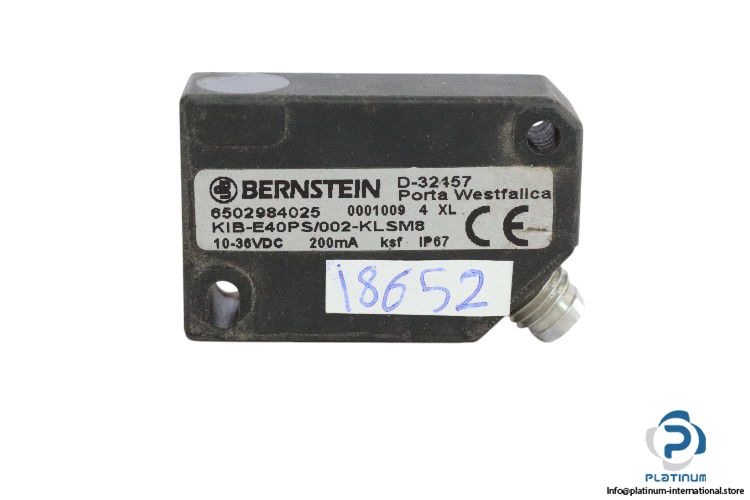

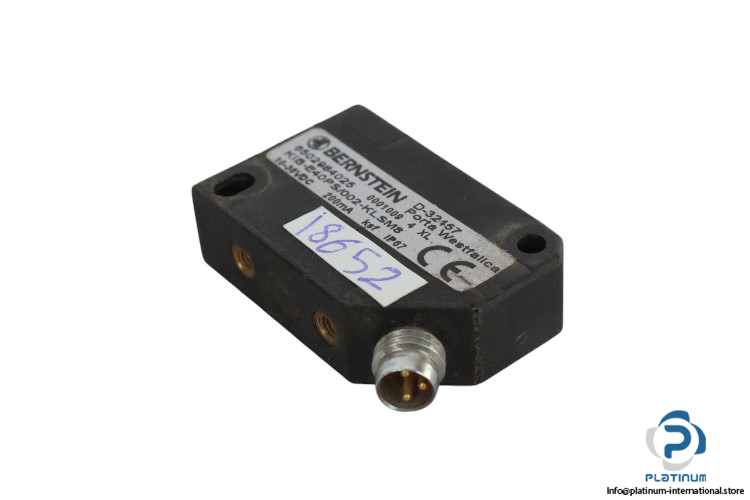

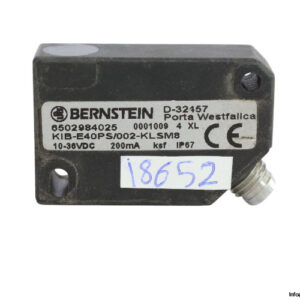

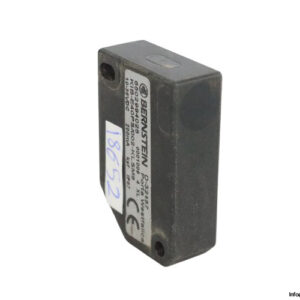

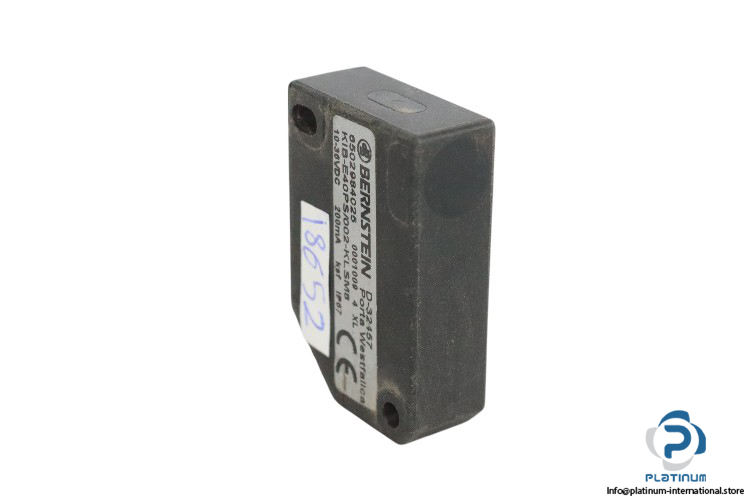

Bernstein KIB-E40PS/002-KLSM8 Inductive Proximity Switch
Inductive Proximity Switch
The Bernstein KIB-E40PS/002-KLSM8 Inductive Proximity Switch features 10-36V operational voltage, 75V rated insulation voltage, and a 200mA operational current. It offers LED indication, PNP design, and IP67 protection, making it ideal for industrial automation and control systems.Bernstein KIB-E40PS/002-KLSM8 Inductive Proximity Switch
The Bernstein KIB-E40PS/002-KLSM8 Inductive Proximity Switch is designed for reliable detection of metallic objects in industrial and automation applications. With an operational voltage range of 10 to 36V DC and a rated insulation voltage of 75V DC, this proximity switch offers efficient and accurate sensing capabilities. The switch operates at a rated current of 200mA at 20°C and features a short-circuit protection function for enhanced durability. Its LED indication (yellow) and PNP electrical design provide clear visibility and compatibility for seamless integration into control systems.
Manufacturer: Bernstein
Type: Inductive Proximity Switch
Model: KIB-E40PS/002-KLSM8
Part No.: D-32157 / 6502984025
This proximity switch is ideal for harsh industrial environments, offering high durability with an IP67 rating, and ensuring reliable performance in detecting metal objects in automated systems.
| Operational Voltage Range (UB) | 10 “ 36V DC |
| Rated Insulation Voltage (Ui) | 75V DC |
| Rated Impulse Withstand Voltage (Uimp) | 500V |
| Rated Operational Current (Ie) | 200mA @ 20°C |
| Off-state Current (Ir) | 0.3mA |
| Short-circuit Protection | Pulsed |
| Rated Operating Distance (sn) | 2mm |
| Housing | PBT, black |
| Indication | LED, yellow |
| Termination Type | Plug socket |
| Electrical Design | PNP |
| Mounting | Flush |
| Degree of Protection | IP 67 |
| Ambient Temperature | -25 ... 70°C |
| Screw Size for Mounting | M3x6" |
| Mounting Hole Diameter | 3.2 mm |
| Dimensions (WxH) | 12 x 40 mm |
