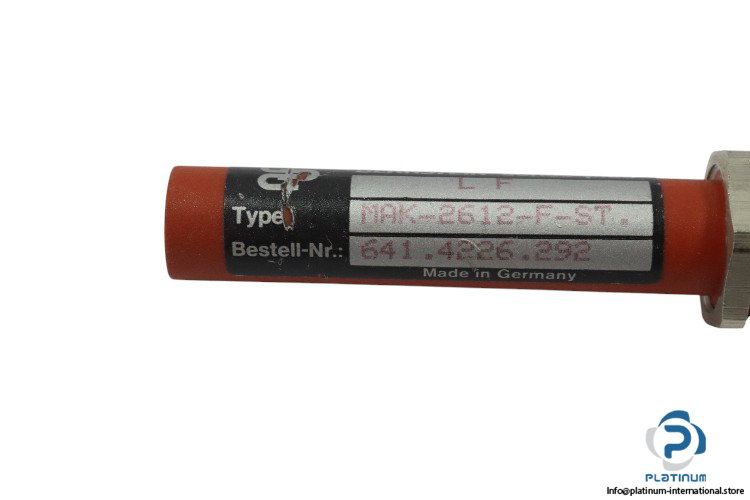

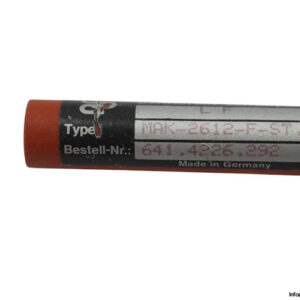

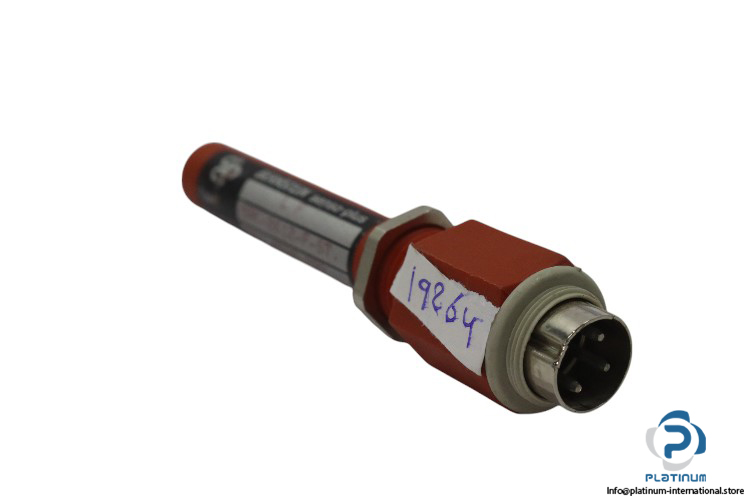

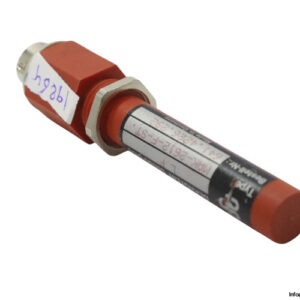

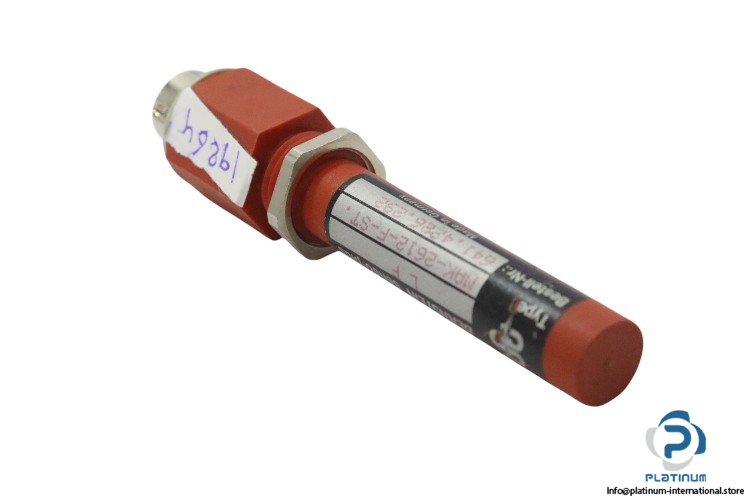

Bernstein MAK-2612-F-ST Magnetic Switch

BERNSTEIN MAK-2612-F-ST Magnetic Switch

The BERNSTEIN MAK-2612-F-ST is a high-quality magnetic switch designed for precise and reliable position detection in industrial automation systems. With a compact enclosure and robust performance, it is ideal for demanding applications requiring high switching accuracy and consistent operation.

Manufacturer: BERNSTEIN

Type: Magnetic Switch

Series: MAK-26

Model: MAK-2612-F-ST

Part No.: 641.4226.292

Technical Data:

• Switching Function: Normally Open (N.O.)
• Assured Operating Distance ON: 7 mm
• Assured Operating Distance OFF: 28 mm
• Repeat Accuracy: ± 0.1 mm
• Max. Voltage: 250V AC/DC
• Max. Switching Current: 3 A
• Max. Switching Capacity: 120 VA
• Enclosure Material: PA 6, Red
• Temperature Range: -5°C to +70°C
