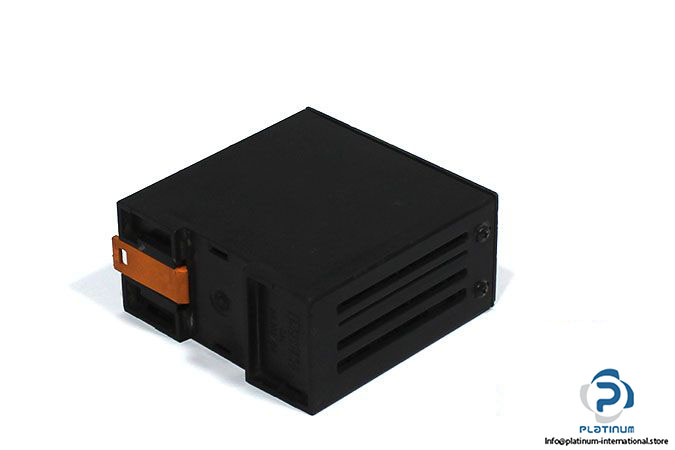

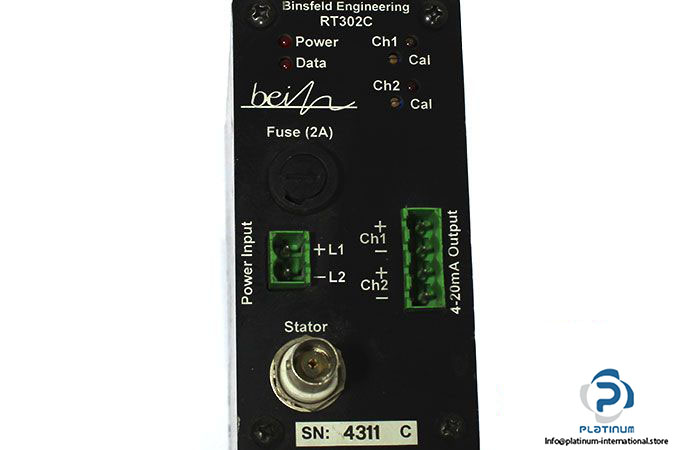

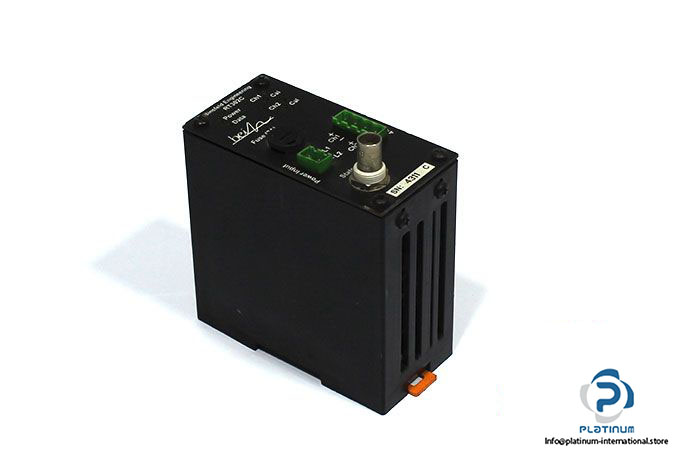

Binsfeld RT302C Rotary Temperature Transmitter

Manufacturer: Binsfeld Engineering

Type: Rotary Temperature Transmitter

Model: RT302C



Number of Sensors: 1-2

Input Sensor Type: PT100 RTD (100 Ω at 0°C, α = .00385, two wire)

Speed: 10000 RPM

Sensor Range: 0…300 °C

Sensor Connection: M3-0.5 Screw Terminals with Socket-Head Cap Screws

Connector: Coaxial Interconnect (BNC)

Output Connection: Quick Connect Screw Terminal Block.

Output Signal: 4…20 mA (Linear with 0° to 300° C)

Power Input: 23-30 VDC or 18-23 VAC, 2 A max, 1 A nominal

Max Load Resistance: 400 Ω

Operating Temperature: 0…100 °C

Dimensions: 103 x 50 x 103 mm
