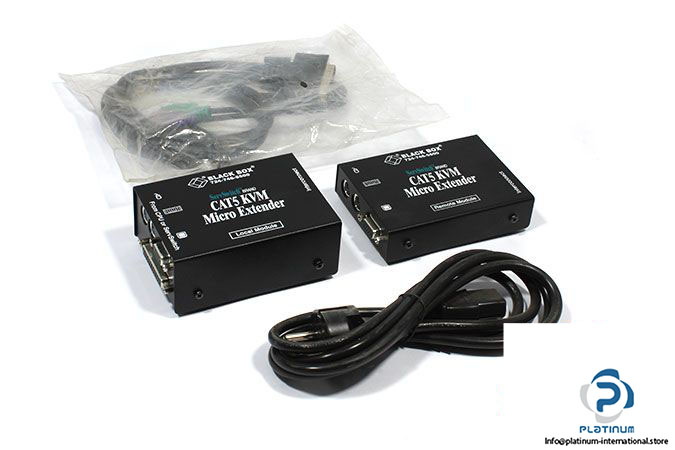

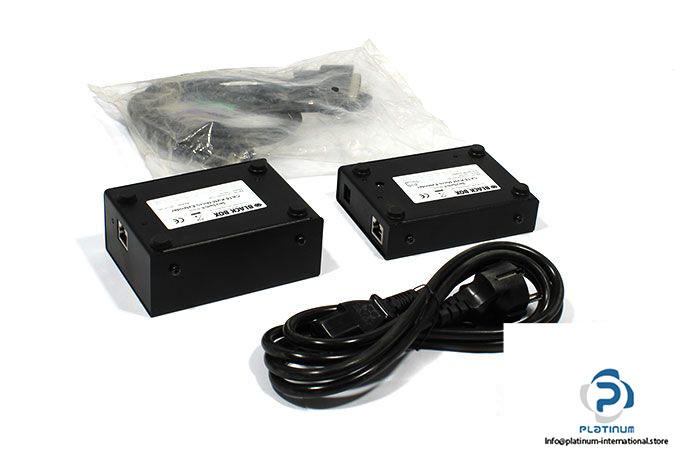

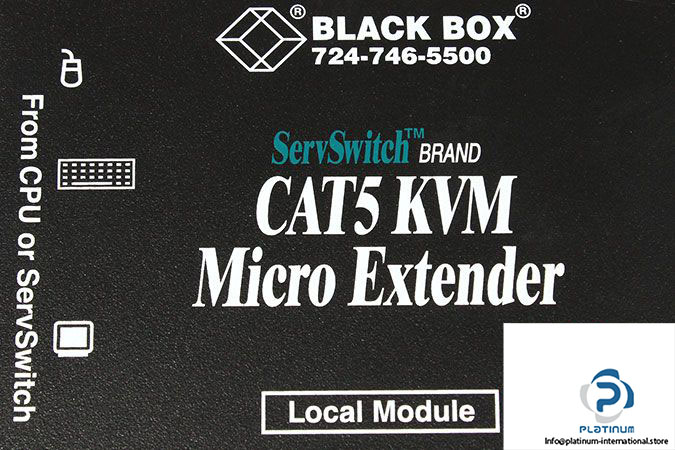

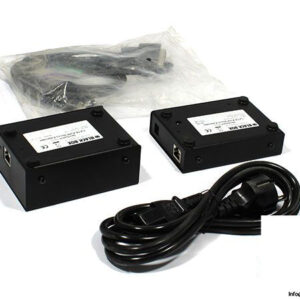

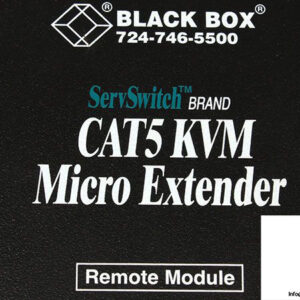

Black BOX ACU3009A Micro Extender

Manufacturer: Black Box

Type: Micro Extender

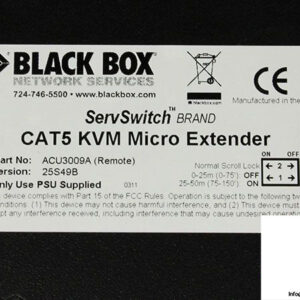

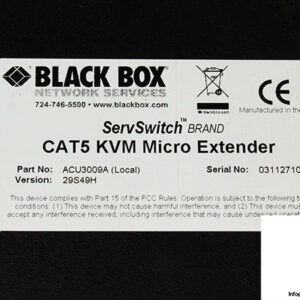

Model: ACU3009A

Part No: 724-746-5500



Single Video Channel, PS/2 KB & Mouse Local Unit (Dual Access) + Remote Unit

Power Supply

• Local Unit: 5V at up to 200mA
• Remote Unit: 9V, 2A (18W)

Maximum Resolution: 1600×1200@60Hz up to 30m / 1280×1024@75Hz up to 50m

Video Compatibility: VGA to UXGA, RGB

Video I/O: 0.7V P-P

Video Compensation: 2-stage

Video Coupling: DC

Video Input Connectors: DB25 female (CPU KVM)

DB25 female (CPU KVM): HD15 (Female)

KB Compatibility: PC/AT, PS/2

B/Mouse Connectors: 6-Pin MiniDIN Socket / DB25 female (CPU KVM)

Local Unit Connector: DB9 Female (DCE)

Remote Unit Connector: DB9 Male (DTE)

Signal levels Audio: Line level (4 Volts Pk-Pk maximum)

Local Unit: 84 x 110 x 44 mm

Remote Unit: 84 x 110 x 26 mm

Operating Temperature: 0…40 °C

Weight: 1.10 kg
