Bonfiglioli Freno FD05 Electric Brake Coil
Used
In stock1 unitReady to ship
Electromagnetic Brake Coil

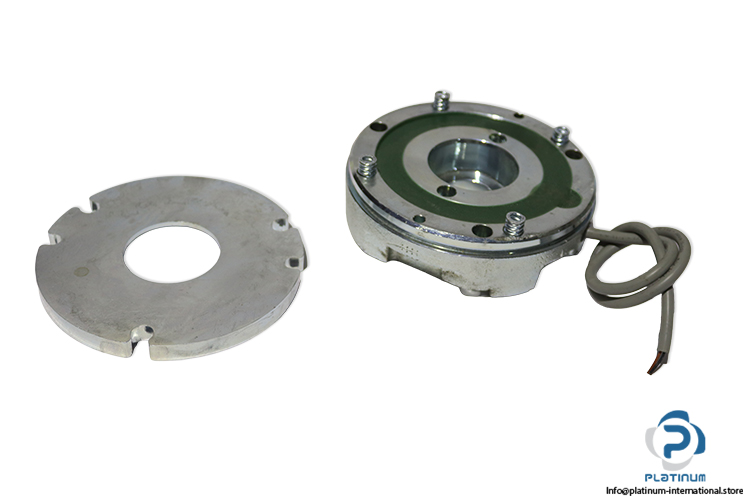

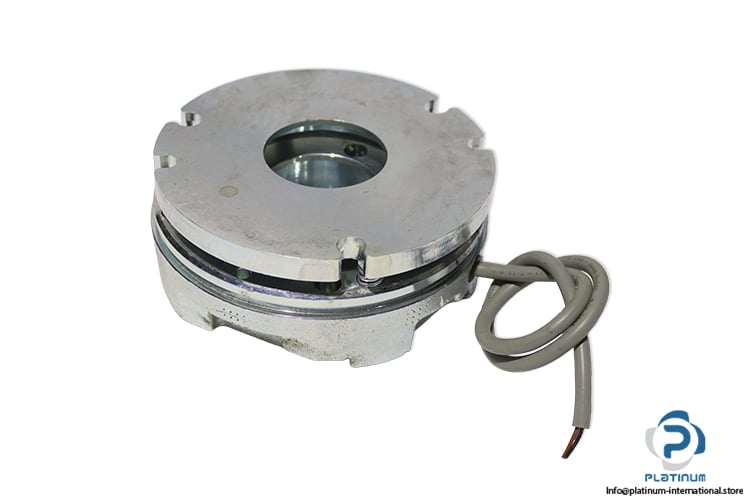

Bonfiglioli FRENO FD05 spring-applied brake coil, 220 V DC, 26 Nm braking torque, through-bore shaft design with cable lead output. Ideal for industrial gearmotors and motion control systems requiring reliable stopping performance.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Bonfiglioli Riduttori FRENO FD05 Electromagnetic Brake Coil
The Bonfiglioli Riduttori FRENO FD05 is an electromagnetic spring-applied brake coil designed for reliable braking performance in industrial drive and motion control systems.
Manufacturer: Bonfiglioli Riduttori
Type: Electromagnetic Spring-Applied Brake Coil
Model: FRENO FD05
Code: KM0010406
Certifications & Compliance
CE Marking
cURus Recognized
Recommended for integration with industrial gearmotors and drive systems requiring controlled stopping and secure holding torque.

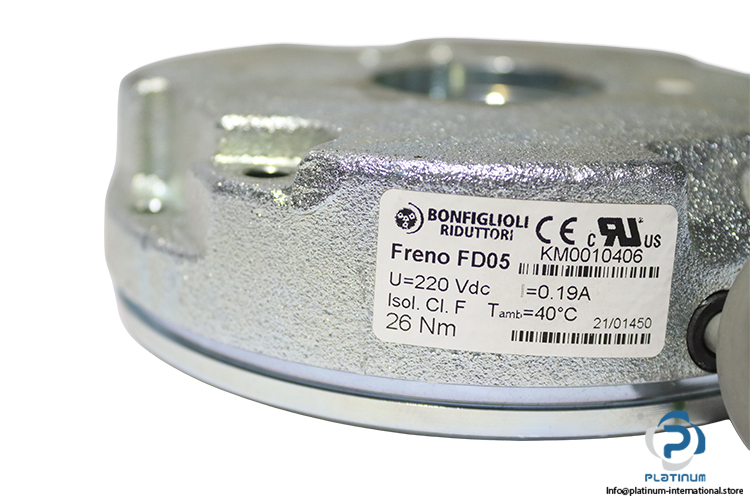

| Rated Voltage | 220 V DC |
| Rated Current | 0.19 A |
| Braking Torque | 26 Nm |
| Shaft Type | Through Bore (Internal Hub) |
| Connection Type | Cable Lead Output |
| Insulation Class | F |
| Ambient Temperature (Tamb) | 40°C |
