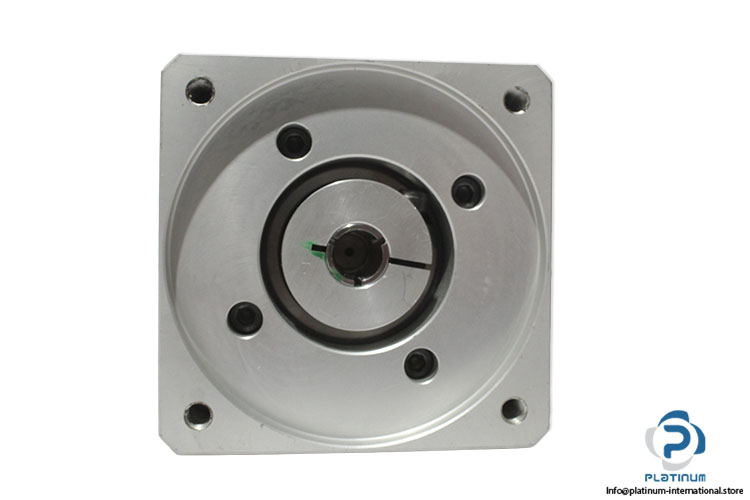

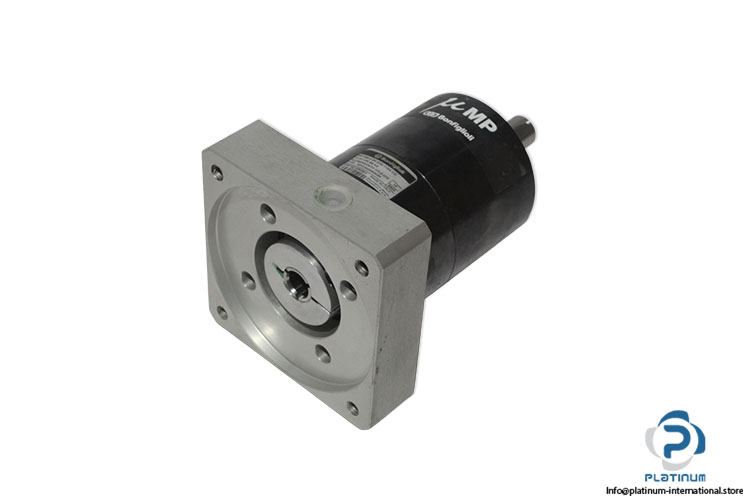

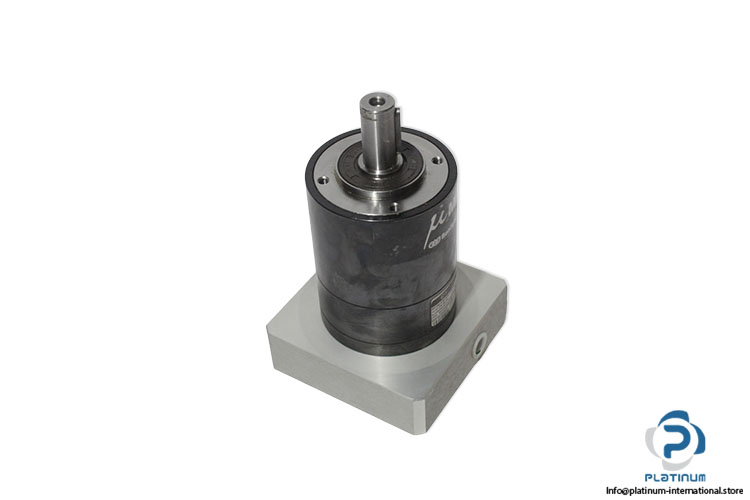

Bonfiglioli MP 080 2 20 STD 110A CD 14 S1 OR SB KE Planetary Gearbox
Used
In stock4 unitsReady to ship
499,99$
BONFIGLIOLI Planetary Gearbox The BONFIGLIOLI MP Series planetary gearbox is a high-precision motion control gearbox designed for servo applications requiring accurate positioning, high torque transmission, and reliable long-term performance. Featuring a compact coaxial design, low backlash, and synthetic grease lubrication for demanding industrial automation systems.
Frame Size:
80 mm
Ratio:
10:1
Number Of Stage:
2
Standard Backlash:
15 Arcmin
Motor Coupling:
Clamping Device
Version:
Coaxial
AutomationBacklashBonfiglioliCoaxialControlGearGearboxIndustriallowMMotionMPPlanetaryPrecisionReducerSeriesServoTransmission
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

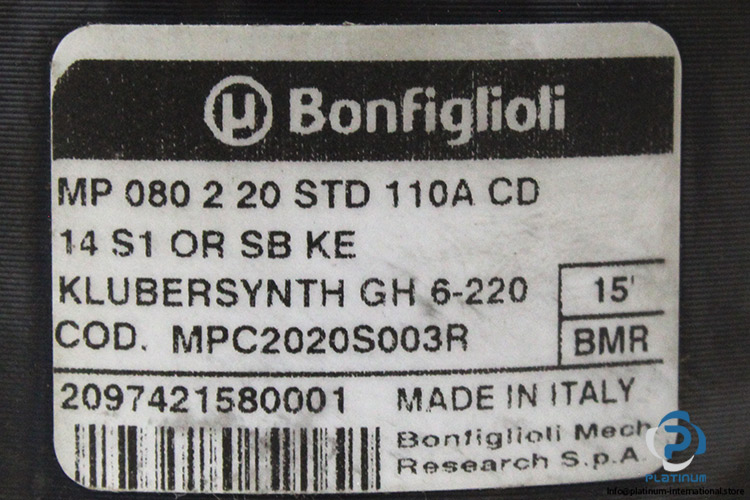

| Code | MPC2020S003R |
| Series | MP |
| Production Code | 2097421580001 |
| Frame Size[mm] | 80 |
| Ratio [i] | 10 |
| Number of Stage | 2 |
| Shaft [mm] | 19 |
| Hollow Shaft [mm] | 14 |
| Flange Diameter [mm] | 115 |
| Standard backlash | 15 arcmin |
| Motor coupling | clamping device |
| Version | coaxial |
| Lubrication Type | Klubersynth GE 6-220 synthetic grease |
| Stock Key | JO-004 |
| Condition | Used |
| SKU | 1099028 |
| Weight | 5,15 |
