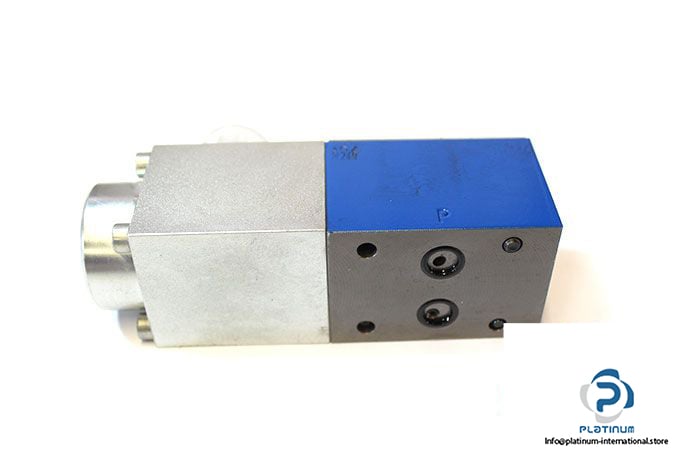

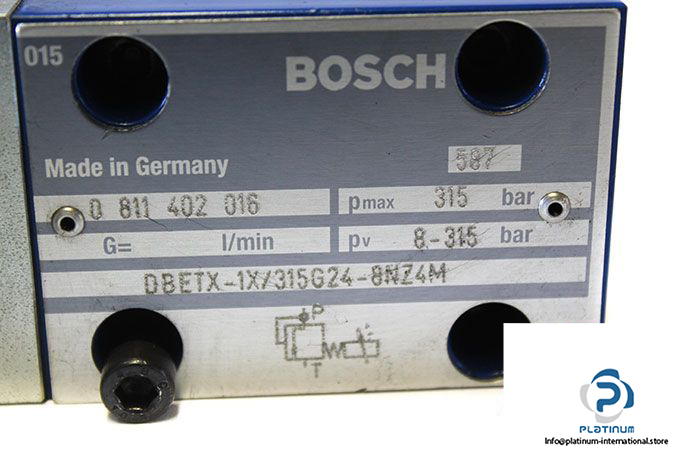

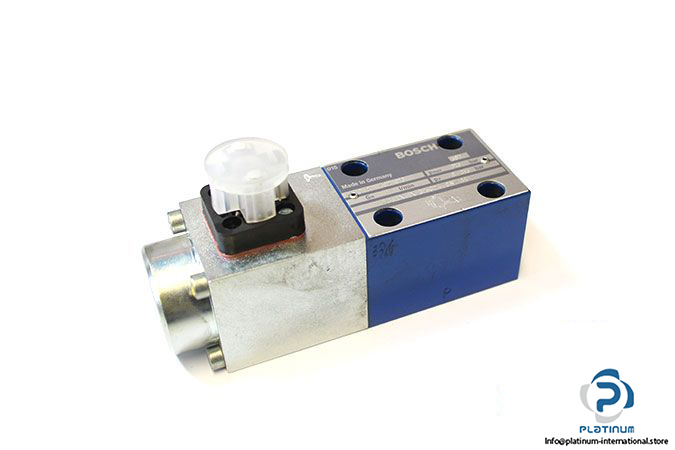

Bosch 0 811 402 016 Proportional Pressure Relief Valve

Manufacturer: BOSCH

Type: Proportional Pressure Relief Valve

Model: DBETX-1X/315G24-8NZ4M

MNR: 0811402016

Nominal Size: 6

Type of Actuation: Electrical

Ambient Temperature Range: -20 …. +50 °C

Maximum Operating Pressure Port P: 315 bar

Maximum Operating Pressure Port T: 250 bar

Max. Pressure Stage: 315 bar

Nominal Flow Rate: 1 I/min

Fluid Temperature Range: -20 …. +80 °C

Viscosity Range: 20…100 mm²/s

Hydraulic Connection: Sub-plate

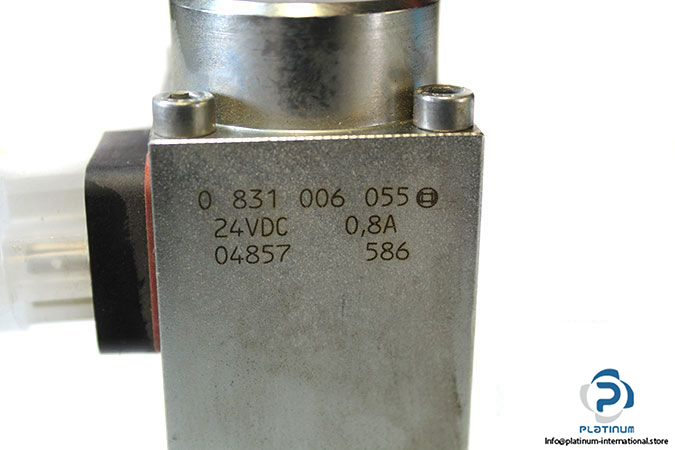

Attachment: BOSCH 0 831 006 055 SOLENOID COIL

Manufacturer: BOSCH

Type: Solenoid Coil

MNR: 0831006055

Voltage: 24 VDC

Current: 0.8 A

Weight: 1.75 kg
