Bosch 0 811 405 106 Valve Amplifier Module
Used
Available on request
175,00$
VALVE AMPLIFIER MODULE
Advanced Bosch Rexroth amplifier module engineered for hydraulic control systems. Delivers 24 V DC operation with dual output stages, optimized ramp times, and rugged 13-pole screw terminal connection.010613-Pole24v405811AmplifierBoschConnectorControlDualElectronicsHydraulicIndustrialModuleOutputRexrothscrewStageterminalUnitValve
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

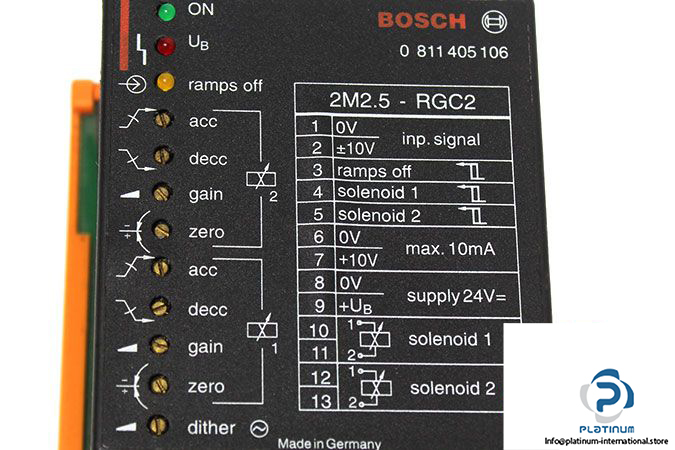

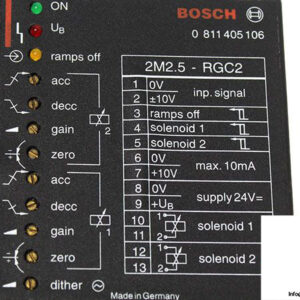

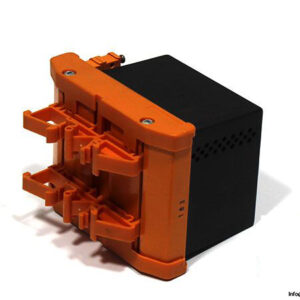

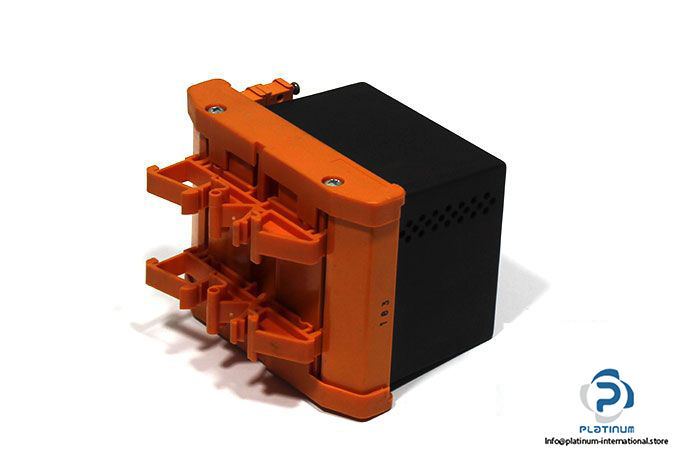

BOSCH / REXROTH 0811405106 VALVE AMPLIFIER MODULE
The Bosch Rexroth 0 811 405 106 Valve Amplifier Module is designed for precision control in hydraulic systems. With dual output stages, robust screw-terminal connections, and configurable ramp times, it offers dependable performance in automation and control environments.
Manufacturer: BOSCH / REXROTH
Type: Valve Amplifier Module
Model: 0 811 405 106
| Supply Voltage | 24 V DC |
| Current Consumption Max. | 2.5 A |
| Power Consumption Max. | 60 VA |
| Ramp Times | 0.05 / 5 s |
| Output Stages | 2 Output Stages |

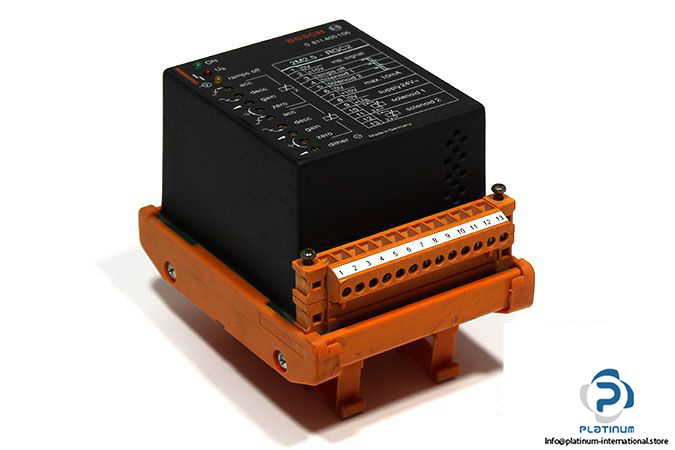

| Plug-In Connection | Connector, 13-Pole (Screw Terminal) |
| Ambient Temperature | 0 / 70 °C |
| Dimensions | 86 x 110 x 95.5 mm |
