Hydraulic System Hydraulic Valves Directional Control Valves

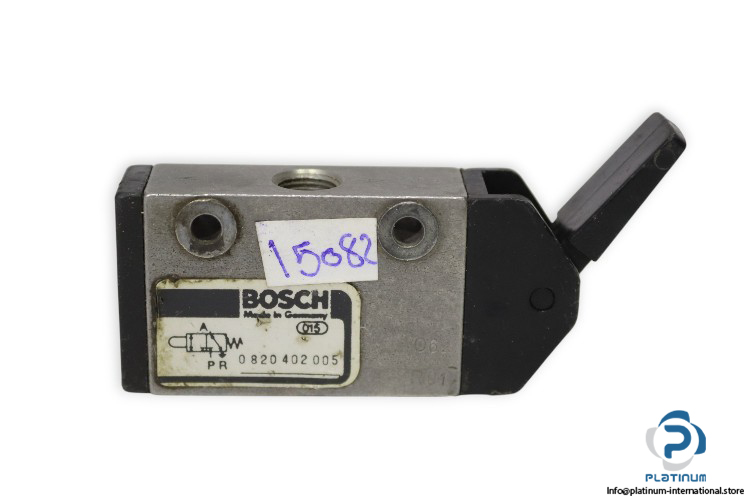

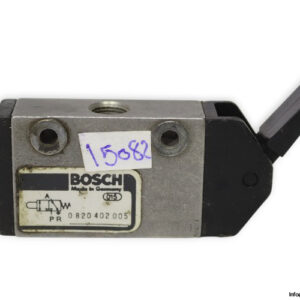

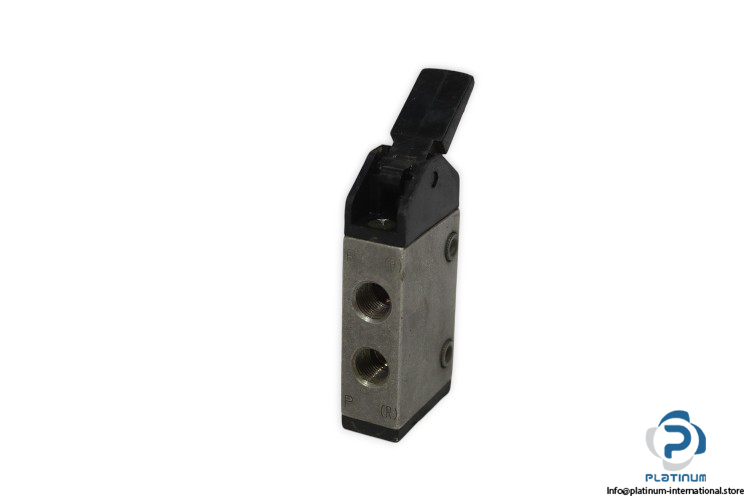

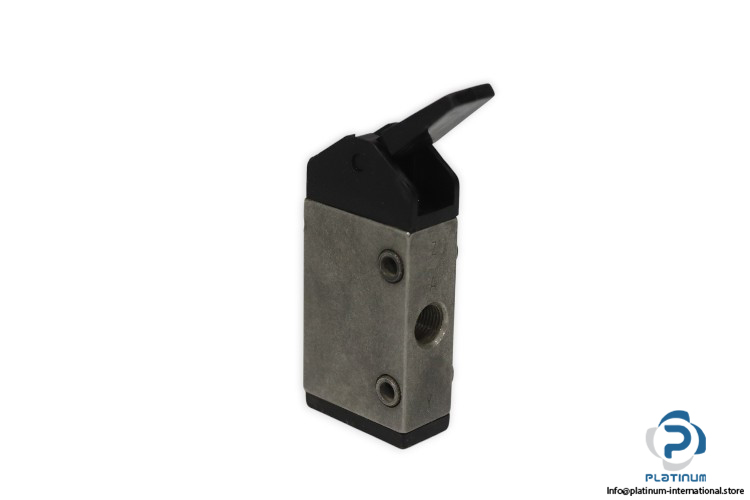

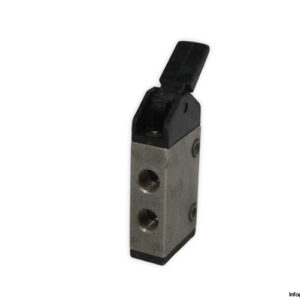

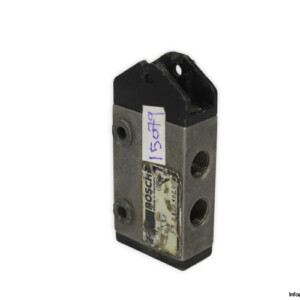

Bosch 0 820 402 005 Hand Lever Valve

Name: BOSCH 0 820 402 005 HAND LEVER VALVE
SKU: 1085878
Availability: LimitedAvailability

bosch-0-820-402-005-directional-valve-used-hand

bosch-0-820-402-005-directional-valve-used-hand-1

bosch-0-820-402-005-directional-valve-used-hand-2

Used

In stock1 unitReady to ship

DIRECTIONAL VALVE

Bosch 0 820 402 005 hand lever directional valve for pneumatic control. 1/8″ connection, 1“10 bar pressure, polyamide body, 280 l/min flow rate. Suitable for air-based systems.

Manufacturer

BOSCH?

SKU

1085878

Category

Directional Control Valves

Condition

Used

0 005 1/8 280 402 820 Bosch connection Directional flow Hand inch Industrial l/min Lever Pneumatic Polyamide Rate Valve

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

BOSCH 0 820 402 005 DIRECTIONAL VALVE

The Bosch 0 820 402 005 is a high-performance directional valve with hand lever operation, ideal for precise pneumatic control in industrial automation systems. Built with durable polyamide material, it ensures reliable performance under demanding conditions.

Manufacturer: Bosch

Type: Directional Valve (Hand Lever Valve)

Model: 0 820 402 005

Connection	1/8 inch
Operating Pressure	1 to 10 bar
Fluid	Air
Flow Rate	280 l/min
Ambient Temperature	-15 to 80 °C
Max. Particle Size	5 µm
Material	Polyamide
Mounting Screw Tightening Torque	2.5 Nm
