Bosch 0821200207 Check-Choke Valve
New
In stock1 unitReady to ship
Check-Choke Valve
BOSCH CC02-AL check-choke valve for exhaust air throttling, featuring high nominal flow, G 1/2 ports, and durable anodized aluminum housing.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

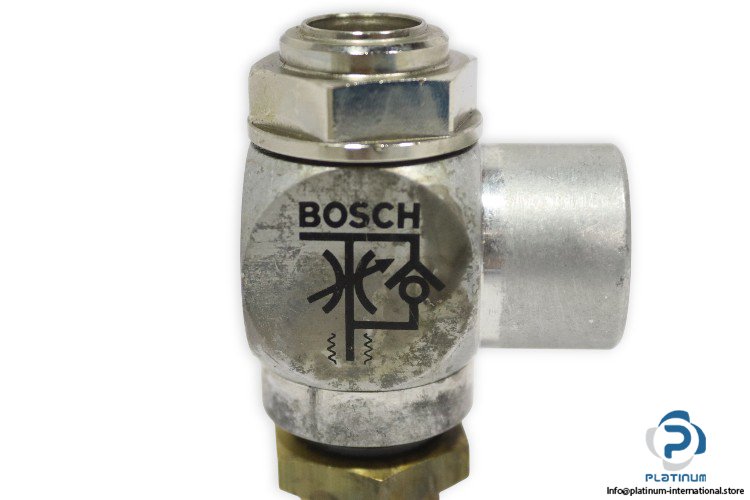

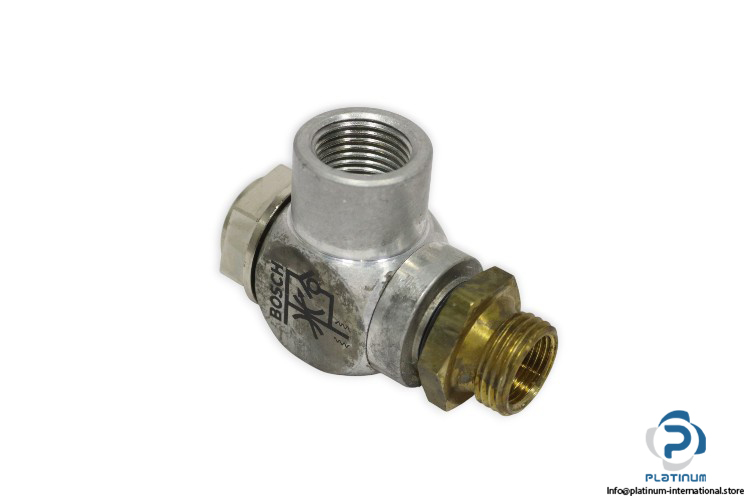

BOSCH Check-Choke Valve CC02-AL
The BOSCH CC02-AL check-choke valve is designed for precise exhaust air throttling in compressed air systems. It enables controlled airflow in one direction while allowing free flow in the opposite direction, ensuring stable and efficient pneumatic operation.
Manufacturer: BOSCH
Type: Check-Choke Valve
MRN: 0 821 200 207
Series: CC02-AL
| Direction of Throttle | 2 > 1 |
| Nominal Flow Qn (2 to 1) | 2691 l/min |
| Throttle Type | Exhaust Air Throttling |
| Throttle Bore | 10 mm |
| Medium | Compressed Air |
| Working Pressure Min. | 0.5 bar |
| Working Pressure Max. | 10 bar |
| Compressed Air Connection Type 1 | Internal Thread |
| Compressed Air Connection Type 2 | External Thread |
| Port 1 | G 1/2 |
| Port 2 | G 1/2 |
| Min. Ambient Temperature | -10 °C |
| Max. Ambient Temperature | 70 °C |
| Housing Material | Aluminum, Anodized |
| Material, Flow Control Screw | Brass |
