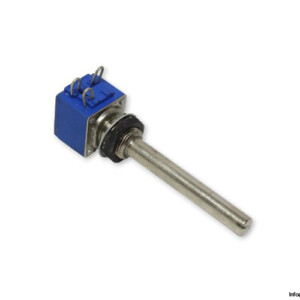

Bourns 82R1AR50A13 Potentiometer
Used
In stock1 unitReady to ship
Potentiometer
Single-turn panel-mount potentiometer with 5 kOhm resistance, cermet element, and smooth/slotted shaft, suitable for industrial and electronic control applications.
New
In stock
This product is also available brand new
View New Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

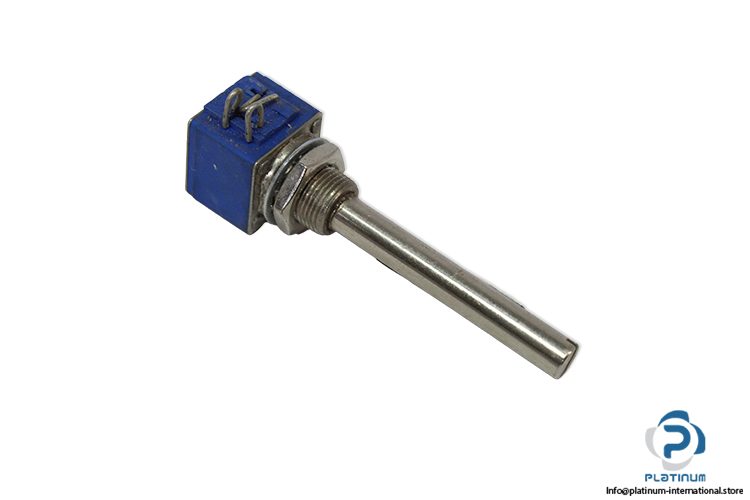

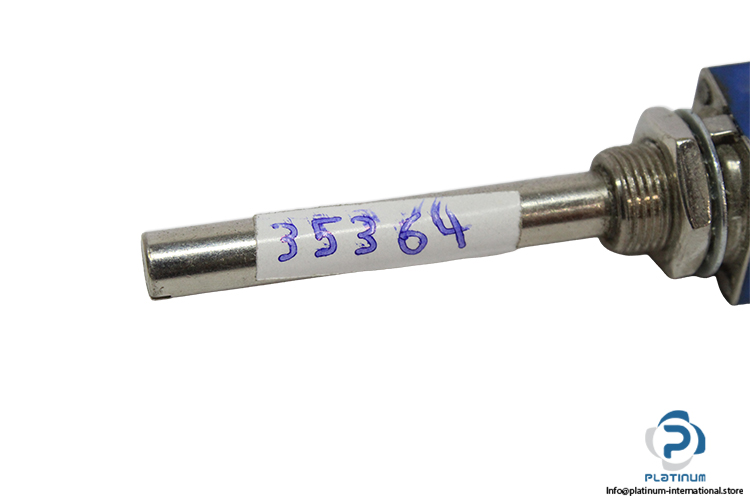

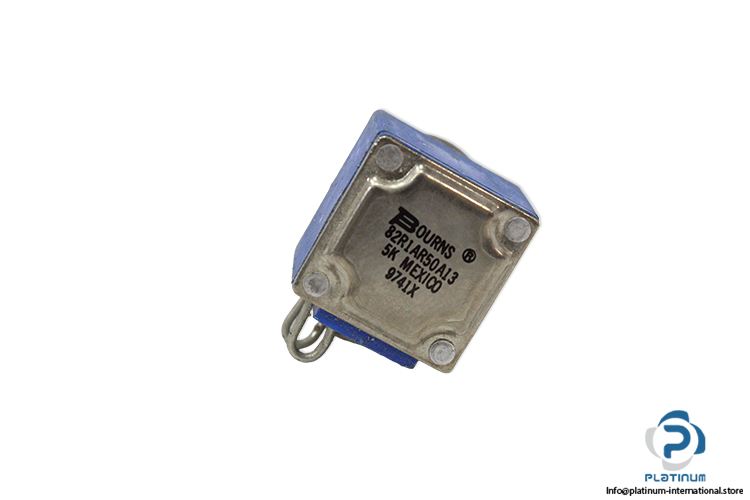

BOURNS 82R1A-R50-A13 Potentiometer
The BOURNS 82R1AR50A13 is a high-quality panel-mount potentiometer designed for precise manual adjustment in industrial and electronic applications. Built with a durable cermet element, it offers stable resistance characteristics, reliable performance, and wide operating temperature capability.
Manufacturer: BOURNS
Type: Potentiometer
Model: 82R1A-R50-A13
Series: 82
| Shaft Diameter | 6 mm |
| Shaft Length | 50 mm |
| Element Type | Cermet |
| Tolerance | 10 % |
| Resistance | 5 kOhm |
| Insulation Voltage | 500 V |
| Power Rating | 2 W |
| Number of Turns | 1 Turn |
| Shaft Type | Smooth / Slotted |
| Mounting Style | Panel Mount |
| Termination Style | Solder Lug |
| Protection Class | IP40 |
| Ambient Temperature | -40 / 125 °C |
