B&R X67CA0E61.0050 ETHERNET CONNECTION CABLE
New
In stock11 unitsReady to ship
POWERLINK / Ethernet Connection Cable

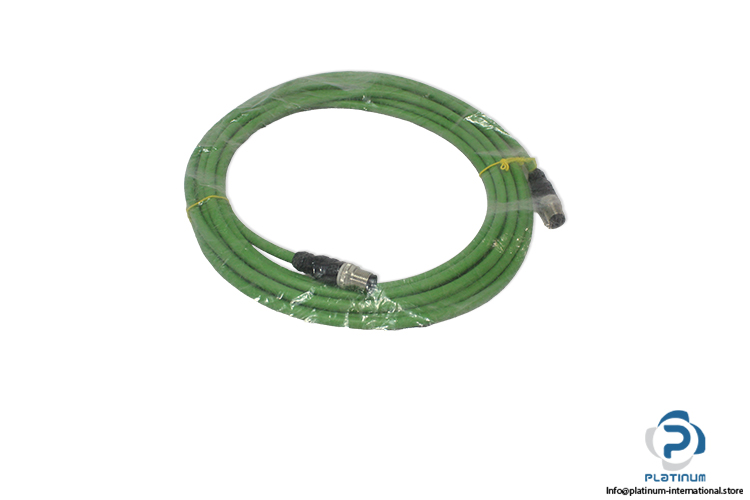

B&R X67CA0E61.0050 industrial Ethernet cable, 5 m length, 4-pin connectors, Cat 5 Class D, IP67 protection, and PUR jacket for reliable automation communication.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

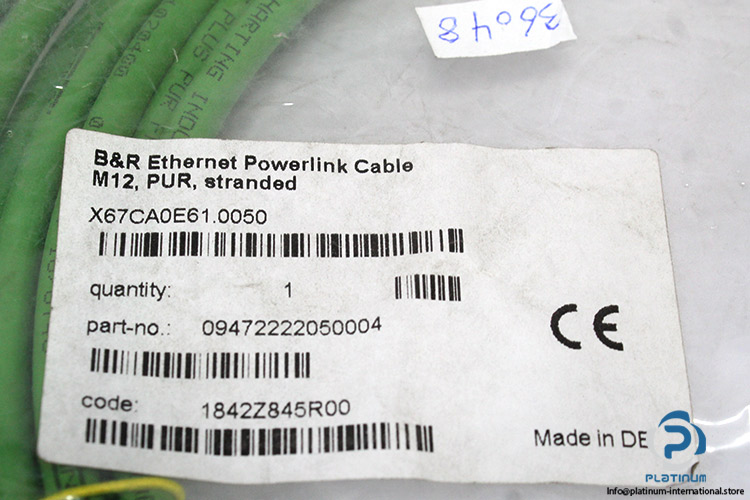

| Part No. | 09472222050004 |
| Code | 1842Z845R00 |
| Wires | 4 wires to the star quad |
| Cable Length | 5 m |
| Connector 1 | 4-pins |
| Connector 2 | 4-pins |
| AWG | 4 x 22 AWG |
| Cable Cross Section mm² | 4 x 0.34 mm² |
| Cable Shield | Overlapping aluminum-clad foil, tinned copper braiding, 85% coverage |
| Material | Polyurethane (PUR) |
| Color | Green |
| Wire Insulation | FRNC (Flame-Retardant Non-Corrosive) |
| Wire Colors | White, Yellow, Blue, Orange |
| Fine Stranded Wire | 7 x 0.25 mm / 7 x 30 AWG |
| Stranding | Complete stranding |
| Operating Voltage | Max. 60 V for PoE |
| Cable Construction Wire - Wire | 2000 V |
| Cable Construction Wire - Shield | 2000 V |
| Conductor Resistance | ¤120 Ω/km at 20°C |
| Transfer Properties | Category 5 / Class D up to 100 MHz per ISO/IEC 11801 (EN 50173-1), ISO/IEC 24702 (EN 50173-3) |
| Transfer Rate | 10/100 Mbit/s |
| Insulation Resistance | ¥500 MΩ/km at 20°C |
| Cables | IP67 |
| M12 Connector | IP67, only when screwed in |
| RJ45 Connector | IP20, only when properly connected |
| Transport | -50 to 75°C |
| Fixed Installation | -40 to 75°C |
| Flexible Installation | -30 to 70°C |
| Condition | New |
| Stock Key | JO-004 |
