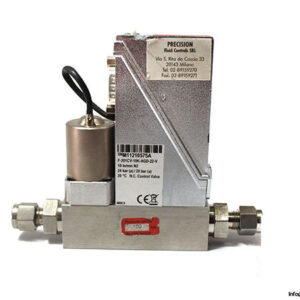

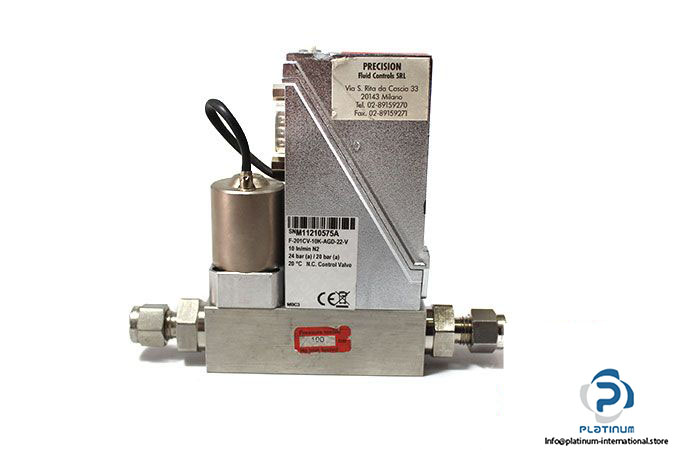

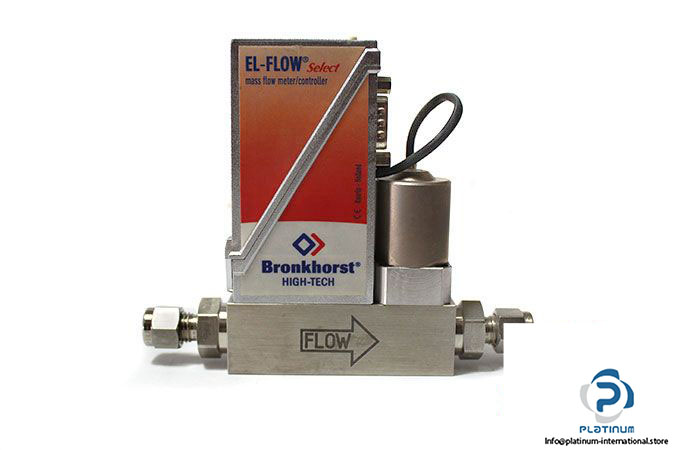

Bronkhorst El-Flow Select F-201CV Mass Flow Controller

Manufacturer: BRONKHORST

Type: DIGITAL THERMAL MASS FLOW CONTROLLER FOR GASES

Model: EL-FLOW SELECT F-201CV

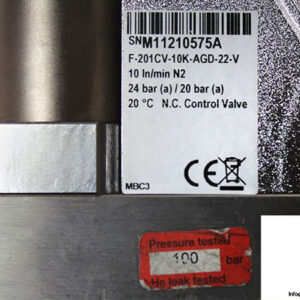

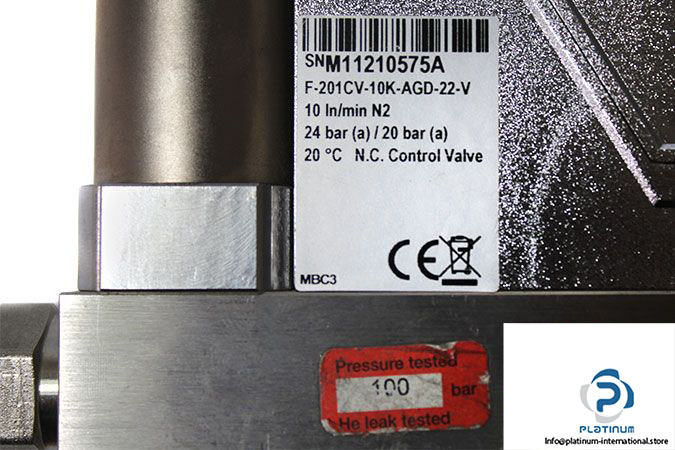

MRN: F-201CV-10K-AGD-22-V

General El-Flow®Select Features:

• High accuracy
• Fast response, excellent repeatability
• Optional Multi Fluid / Multi Range functionality
• Virtually pressure and temperature independent
• Compact design

Material (wetted parts): Stainless Steel 316L Or Comparable

Power supply: 15 … 24 VDC

Flow Range, based on N2:

Min. 0,16 … 8 mln /min

Max. 0,5… 25 ln /min

Pressure Rating: 64 bar abs

Electrical connection: Analog, 9-pin D-connector (male)

PROFIBUS DP:

bus: 9-pin D-connector (female)

power: 9-pin D-connector (male)

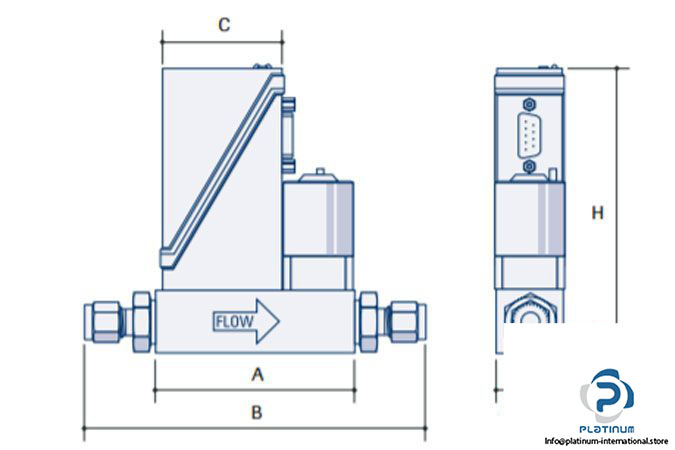

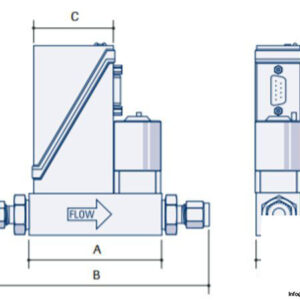

Dimensions ( B x K x H ): 143 mm x 25 mm x 111 mm

Control Stability: < ±0,1% FS
Settling Time (Controller): standard, 1 … 2 seconds

Warm-Up Time: 30 min, for optimum accuracy

Accuracy: ± 0.5%

Pressure Sensitivity: 0,1% Rd/bar

Repeatability: < 0.2% Rd

Protection Proof: IP40

Temperature Range: -10 … +70°C

Weight: 0.6 kg
