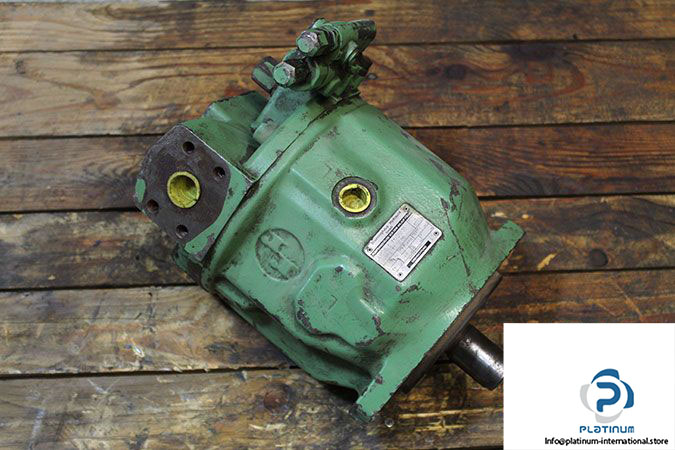

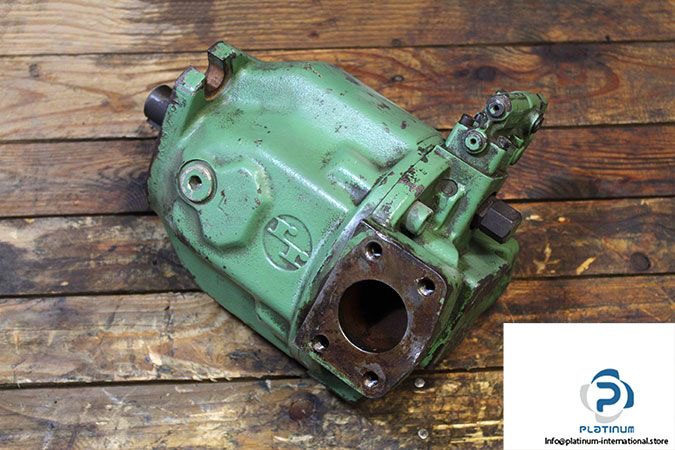

Brueninghaus Hydraulik A10VSO 71 DR/30R-PPA12N00 Axial Piston Variable Pump

Manufacturer: Brueninghaus Hydraulik / Rexroth

Type: Axial Piston Variable Pump

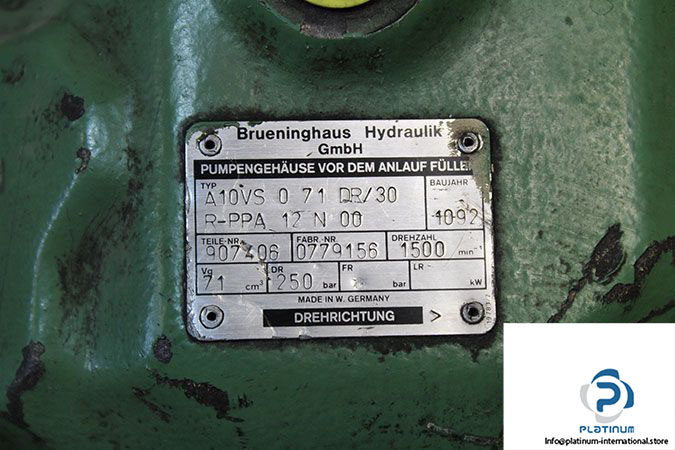

Model: A10VSO 71 DR/30R-PPA12N00

Size: 71

Displacement: 71 cm³

Direction of Rotation: Clockwise

Mounting Flange: ISO 3019-2 (2 holes)

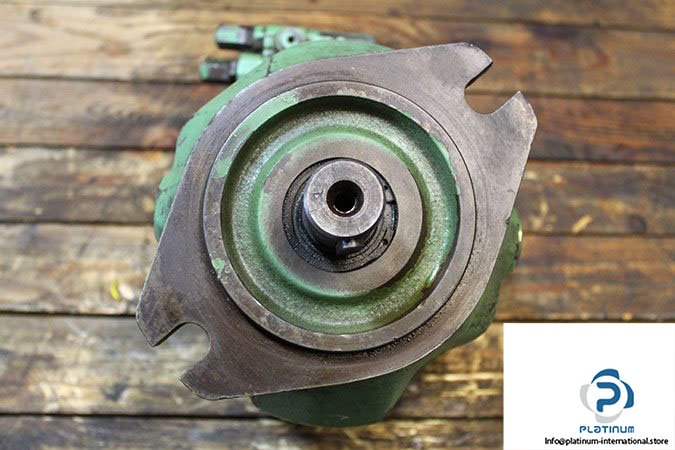

Shaft Diameter: 32 mm

Speed: 2200 …. 2600 rpm

Flow Rate at 1500 rpm: 107 l/m

Power at 280 bar, 1500 rpm: 50 KW

Torque at 280 bar: 316 N.M

Viscosity Range: 16 ….  36 mm²/s

Weight: 34.5 Kg
