Brueninghaus Hydromatik A10VSO 45 DFR1/31R-PPA12N00 Axial Piston Variable Pump

Manufacturer: Brueninghaus Hydromatik / Rexroth

Type: Axial Piston Variable Pump

Model: A10VSO45DFR1/31R-PPA12N00

Size: 45

Displacement: 45 cm³

Maximum Speed: 2600 rpm

Flow Rate at 1500 rpm: 68 l/m

Power at 280 bar, 1500 rpm: 32 KW

Torque at 280 bar: 200 N.M

Nominal pressure: 280 bar

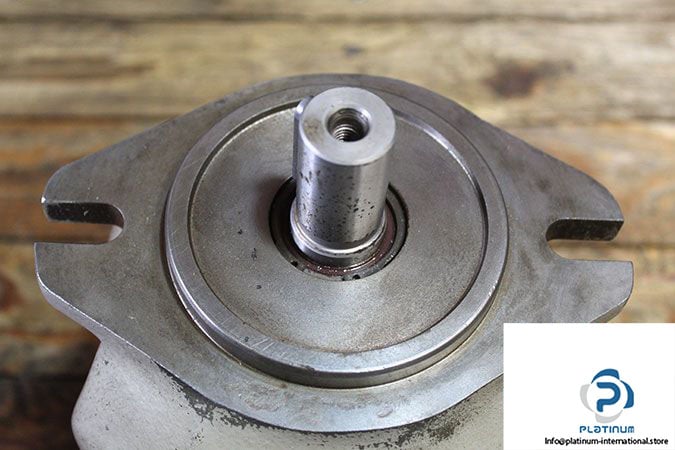

Shaft Diameter: 25 mm

Control Device: X-T plugged, with flushing function

Direction of Rotation: Clockwise

Mounting Flange: ISO 3019-2 (2 holes)

Viscosity Range: 16 ….  36 mm²/s

Weight: 22.5 Kg
