Brugg DLR-G M Overpressure Leak Detector
BRUGG / SGB DLR-G M Pressure Leak Detector A reliable gas pipeline pressure leak detector with 230V input voltage, dry relay contacts, and IP67 protection, designed for industrial safety applications.

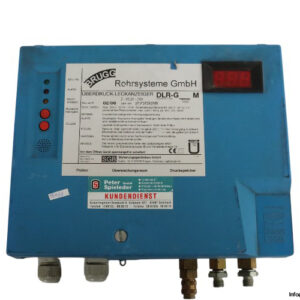

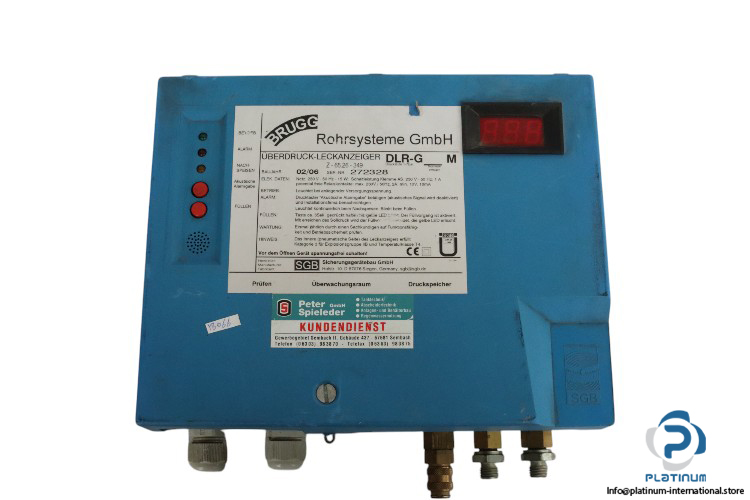

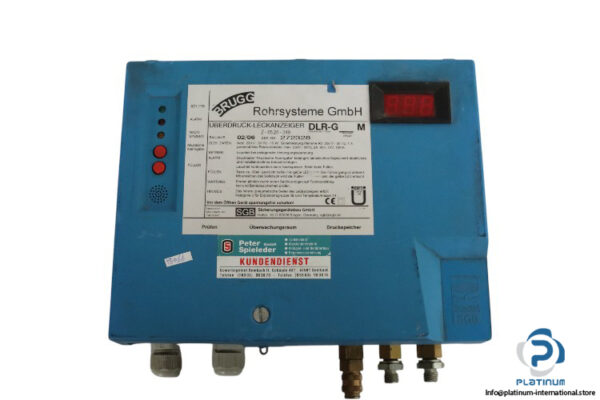

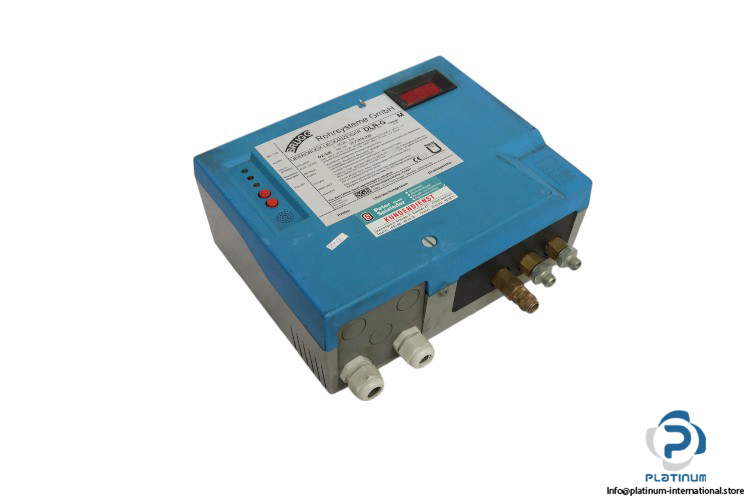

BRUGG / SGB DLR-G M Pressure Leak Detector
The BRUGG / SGB DLR-G M Pressure Leak Detector is a highly reliable device designed for detecting pressure leaks in gas pipelines. It uses a pressure cylinder (nitrogen) for pressure build-up and ensures precise monitoring of the system™s integrity. Ideal for industrial applications, this detector offers both efficiency and accuracy in detecting leaks, preventing safety hazards and operational disruptions.
The device operates on a 230V input voltage at 50Hz, consuming just 20W of power. The switching contact load on the AS terminals is rated for 230V at 1A, while the dry relay contacts offer a higher switching capacity of up to 230V at 2A maximum and 10V at 10mA minimum. This makes the unit highly versatile and compatible with various setups.
With a nominal size of at least 100 and a precision class of at least 1.6, the BRUGG / SGB DLR-G M Pressure Leak Detector guarantees top-tier performance in leak detection. The compact dimensions of 300×200 mm make it easy to install and integrate into your system.
- Manufacturer: BRUGG / SGB
- Type: Pressure Leak Detector
- Model: DLR-G M

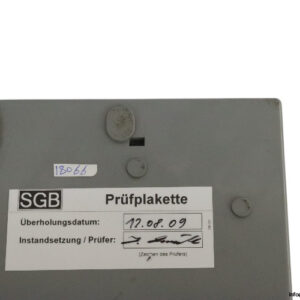

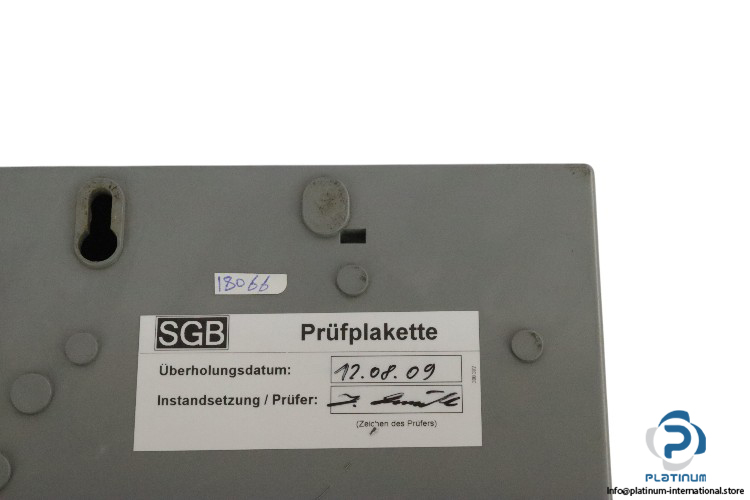

- Part No.: 12.08.09
- Input Voltage: 230V – 50Hz – 20W
- Switching Contact Load (Terminals AS): 230V – 50Hz – 1A
- Switching Contact Load (Dry Relay Contacts): Maximum: 230V – 50Hz – 2A, Minimum: 10V “ 10mA
- Nominal Size: At least 100
- Class Precision: At least 1.6
- Dimensions: 300 x 200 mm
Designed for robust performance, the BRUGG / SGB DLR-G M Pressure Leak Detector is the perfect tool for monitoring gas pipelines and ensuring operational safety in various industrial applications.
