B&R X67CA0P00.0010 POWER CABLE
Power Connection Cable

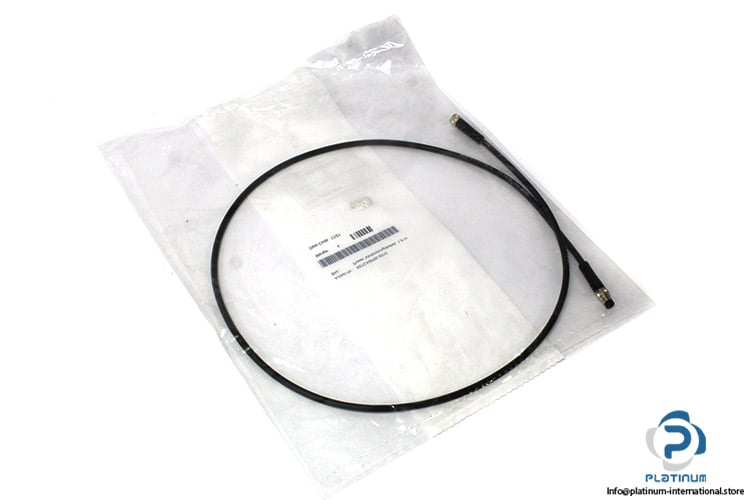

B&R X67CA0P00.0010 1-meter power connection cable with 4-pin male to 4-pin female connectors, PUR jacket, IP67 protection, and 4 x 20 AWG conductors for industrial automation applications.B&R X67CA0P00.0010 Power Connection Cable
The B&R X67CA0P00.0010 is a high-quality industrial power connection cable designed for reliable signal and power transmission in automation systems. With a robust PUR outer jacket and IP67 protection when properly connected, this cable ensures durability and stable electrical performance in demanding environments.
Manufacturer: B&R
Type: Power Connection Cable
Model: X67CA0P00.0010
Part No.: 10227650

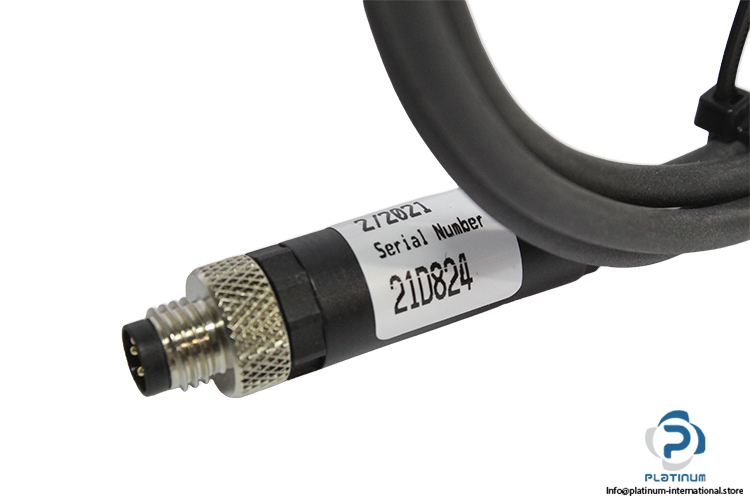

Serial No.: 21D824

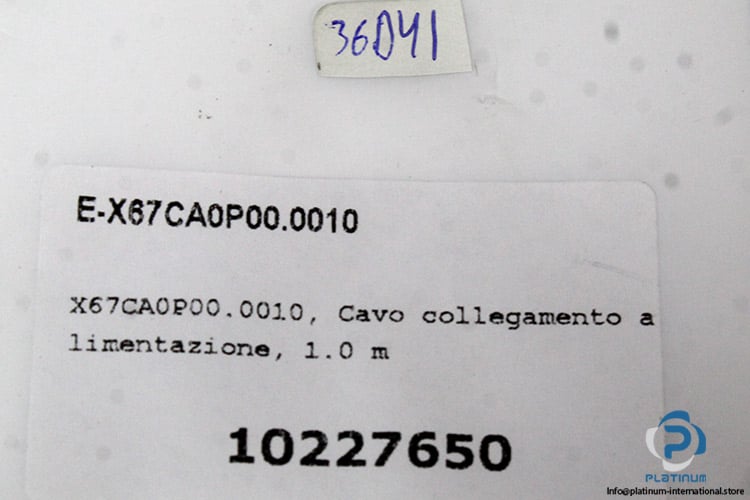

Code: E- X67CA0P00.0010
Cable Cross Section
Cable Construction
Outer Jacket:
Wires:
Electrical Properties
Nominal Current:
Max. 4 A per EN / Contact at 40°C
Max. 3 A per UL / Contact
Operating Conditions
Degree Of Protection (EN 60529):
Ambient Conditions
Temperature:
Mechanical Properties
Bend Radius:
| Cable Length | 1 m |
| Connector 1 | 4-Pins, Male |
| Connector 2 | 4-Pins, Female |
| Cable Info | Rev G0, E253359 |
| AWG | 4 x 20 AWG |
| mm² | 4 x 0.5 mm² |
| Cable Shield | Not Shielded |
| Material | Polyurethane (PUR) |
| Color | Black |
| Wire Insulation | Polypropylene (PP) 9Y |
| Wire Colors | Brown, Black, Blue, White |
| Fine Stranded Wire | 42 x 0.1 mm / 42 x 38 AWG, Class 6 |
| Stranding | Not Stranded |
| Operating Voltage | Max. 60 V |
| Degree Of Insulation | Category II per IEC 61076-2 |
| Conductor Resistance | ‰¤57 Ω/km |
| Insulation Resistance | ‰¥100 MΩ |
| Connector/Coupling | IP67, Only When Screwed In |
| Transport | -40 to 90°C |
| Fixed Installation | -30 to 90°C |
| Flexible Installation | -25 to 60°C |
| Diameter | 5 mm ±0.2 mm |
| Fixed Installation | ‰¥5x Outer Diameter |
| Flexible Installation | ‰¥10x Outer Diameter |
