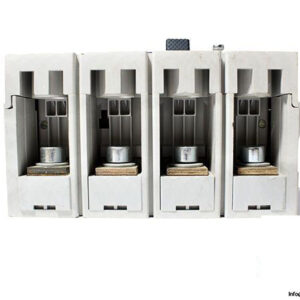

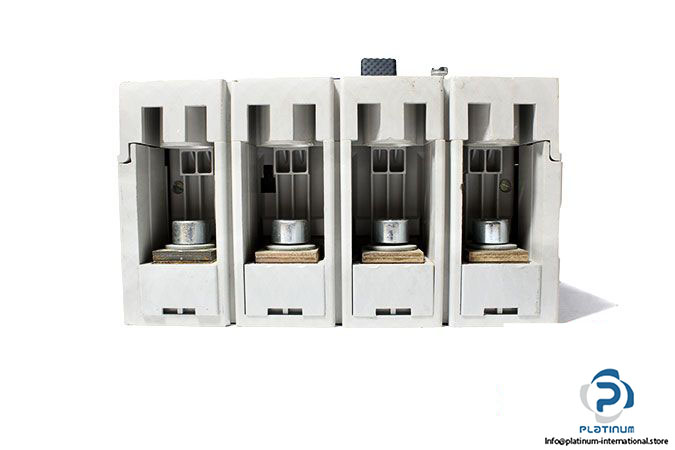

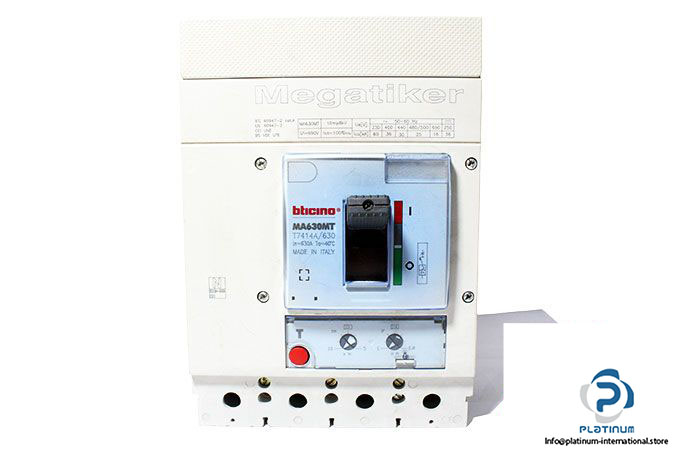

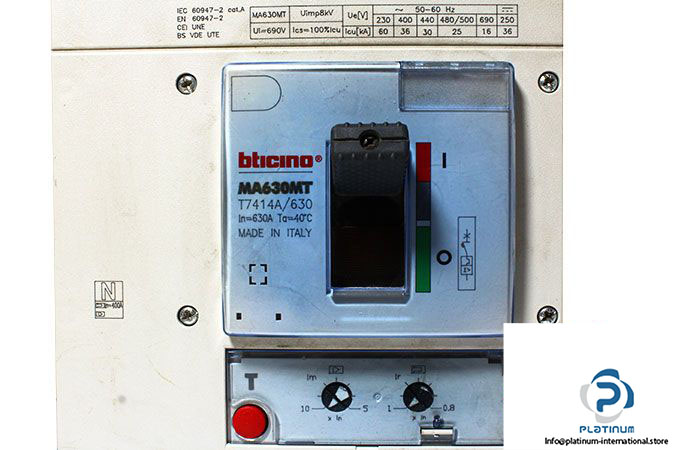

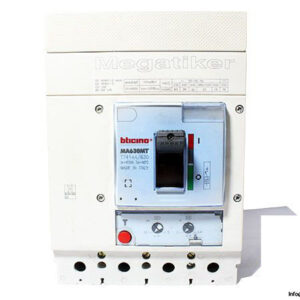

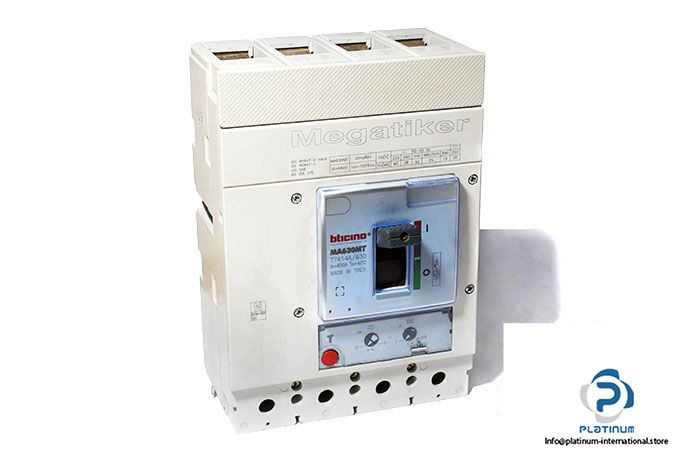

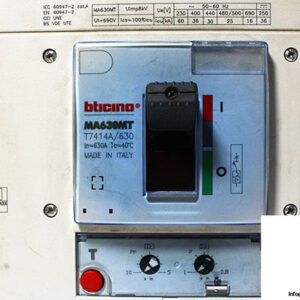

Bticino MA630MT Molded Case Circuit Breaker

Manufacturer: Bticino

Type: Molded Case Circuit Breaker

Series: Megatiker

Model: MA630MT

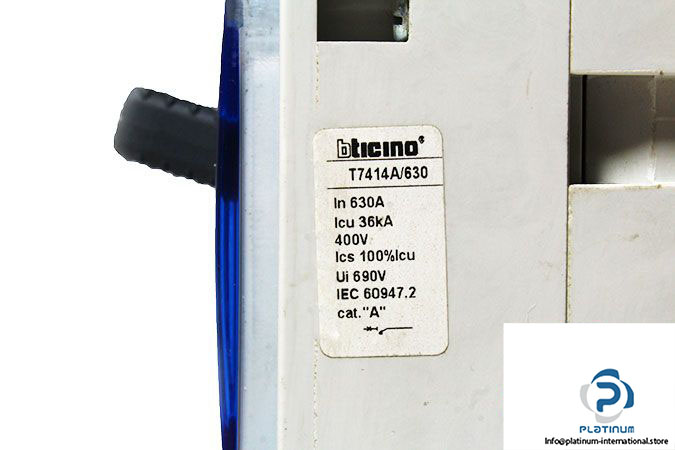

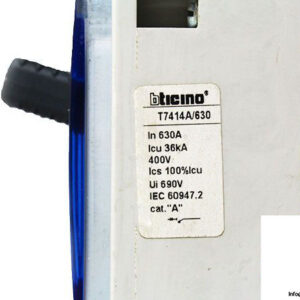

Product Code: T7414A / 630

Number Of Poles: 4

Rated Current (I_n): 630 A

Rated Operational Voltage (U_e): 690 V AC / 250 V DC

Rated Insulation Voltage (U_i): 690 V AC

Rated Impulse Voltage (U_imp): 8 kV

Breaking Capacity (I cu ):

60 KA (230/240 V AC)

36 KA (400/415 V AC)

16 KA (690 V AC)

36 KA (250 V DC)

Tripping Relay Current (I_m): 1600 / 3200 A

Service Frequency: 50/60 Hz

Trip Unit Release: Thermomagnetic

Mounting: Fixed Installation

Standard: IEC / EN 60947-2

Dimensions (W x D x H): 182 x 141 x 260 mm

Weight: 6.8 kg
