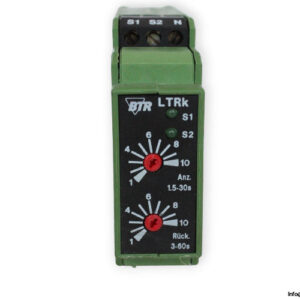

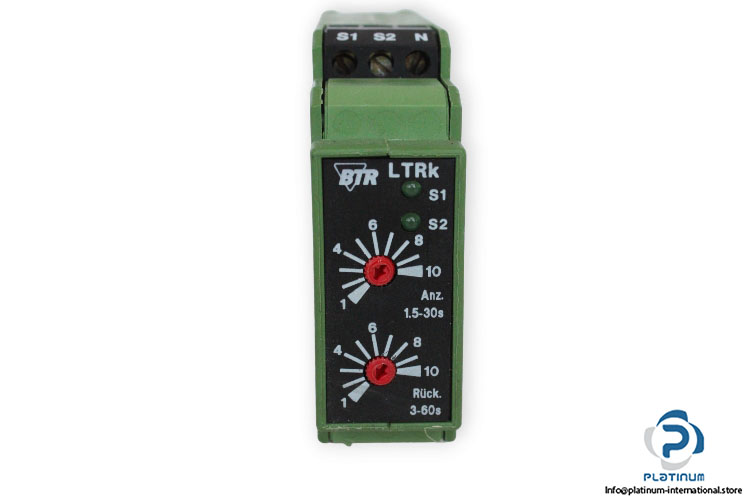

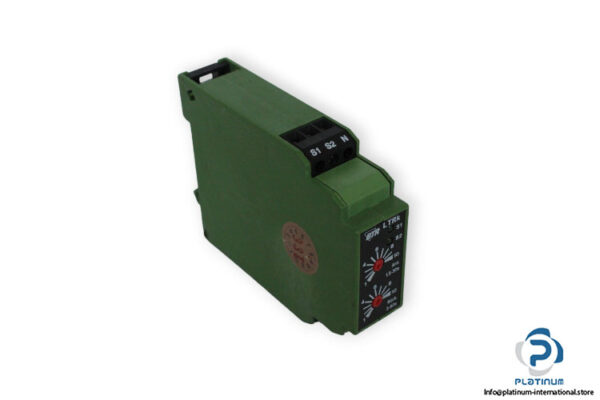

BTR LTRK-E12 Timer Relay
Manufacture: Btr
Type: Timer Relay
Model: LTRK-E12
Operating Voltage: 230 V AC,50 Hz
Continuous Current max.: 6 A
Contact material: AgSnO2
Degree of pollution: 2
Connection type: Screw type terminal blocks
Material Housing: Polyamide 6.6 V0
Start-up delay: Adjustable time of up to 30 s
Switch-off delay: adjustable time of up to 60 s
Response time for level 1: 0 ms
Response time for level 2: approx. 30 ms
Operation temperature: -5 … 55°C
Protection degree: Housing IP40,Terminal IP20
Dimensions: 22.5 x 75 x 95 mm
