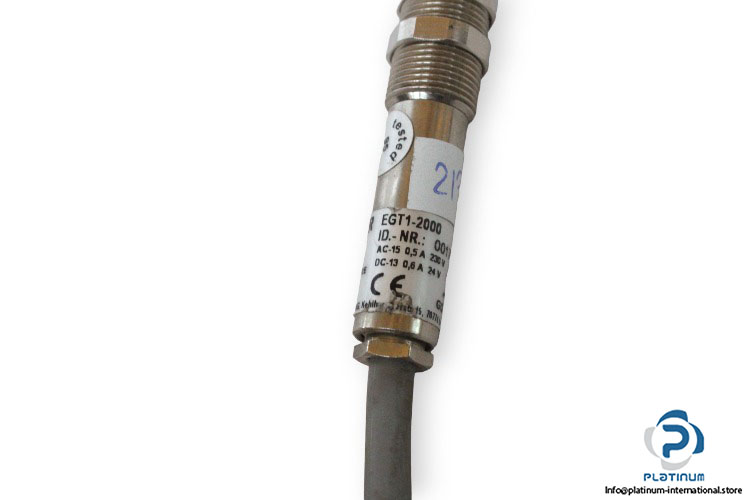

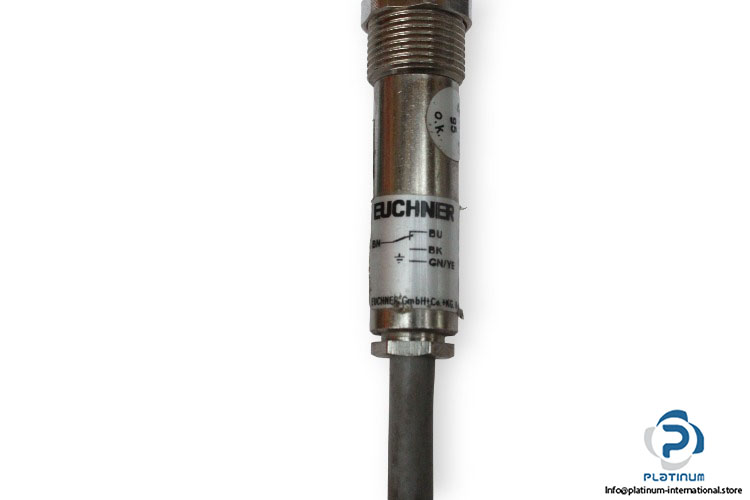

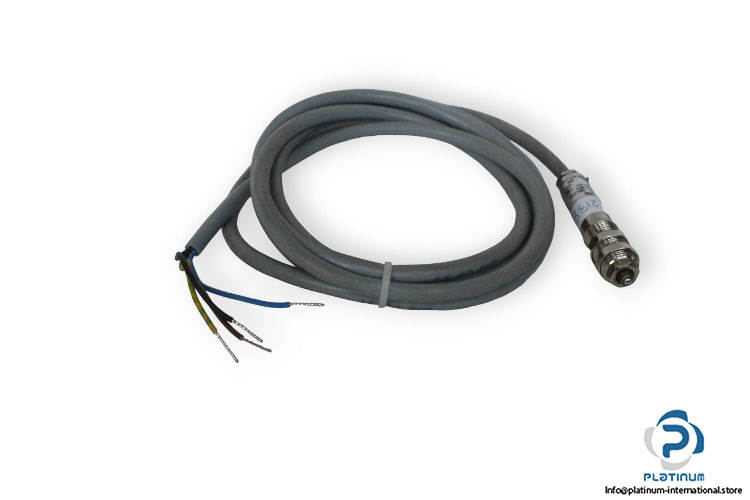

Euchner EGT1-2000 Limit Switch
Manufacturer: EUCHNER
Type: Limit Switch
Model: EGT1-2000
Part No.: 001732
Rated insulation voltage Ui: 250 V
Rated impulse withstand voltage Uimp: 2.5 kV
Switching voltage min.: 12 V
Switching current: min. at 24 V, 10 mA
Approach speed: 0.01 … 8 m/min
Connection type: PUR cable
Connection cross section: 0.5 mm²
Number NC contacts: 1
Number of NO contacts: 1
Design: Thread M14 x 1
Actuating element: Ball plunger
Actuating force approx.: 20 N
Cable length: 2 m
Switching principle: Snap-action switching contact
Degree of protection: IP67
ambient temperature: -25 … +80 °C
