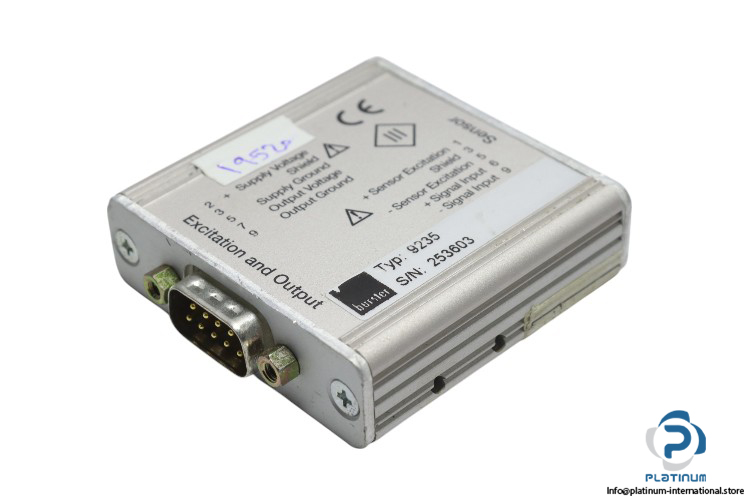

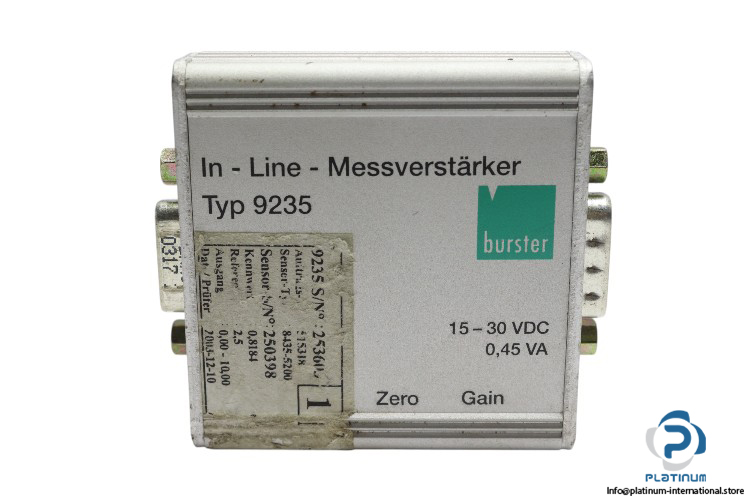

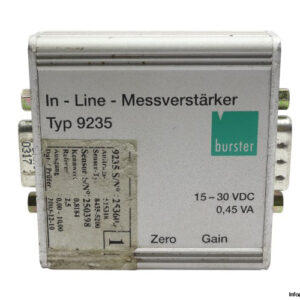

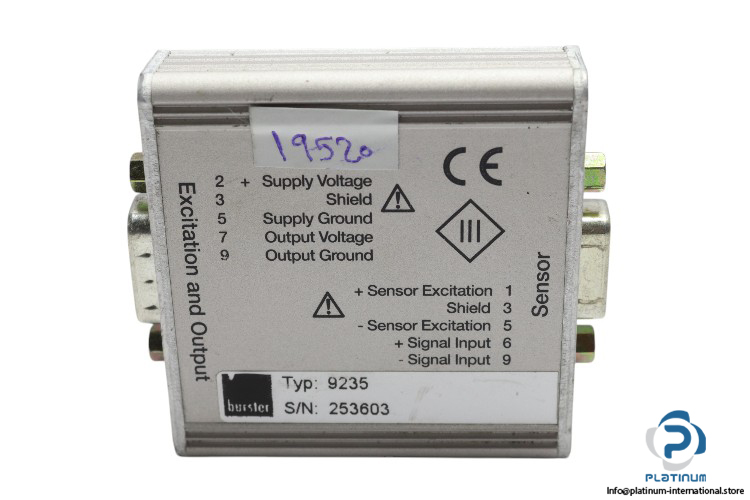

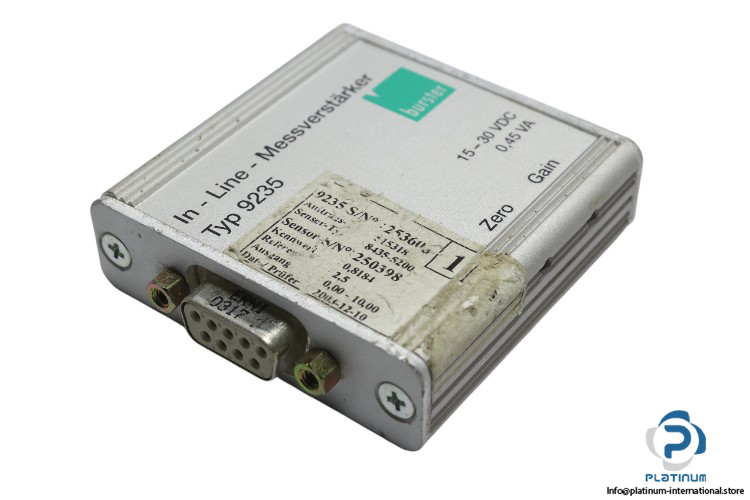

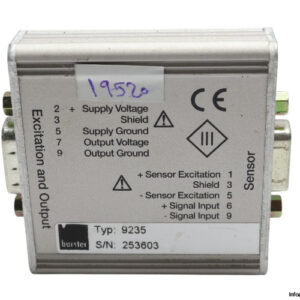

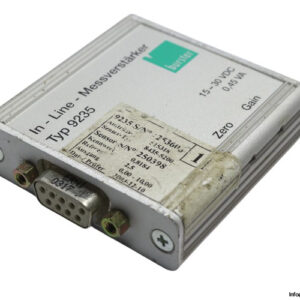

Burster 9235 IN-Line Amplifier
In-Line Amplifier
The Burster In-Line Amplifier 9235 provides precise signal amplification with 4-wire connection, 2.5V excitation voltage, and IP40 protection. It operates with a power supply of 15-30V DC and is suitable for temperatures between 0°C and 60°C.Burster In-Line Amplifier 9235
The Burster In-Line Amplifier 9235 is a high-performance, compact unit designed for precise signal amplification in industrial applications. Featuring a 4-wire connection technology, this amplifier provides an excitation voltage of 2.5 V and a maximum excitation current of 10 mA, ensuring optimal performance for various sensor types. It has a low power consumption of 0.3 VA and operates within a wide input voltage range of 15 to 30 V DC.
Built with durability in mind, the 9235 amplifier is constructed from high-quality aluminium, offering reliable performance even in challenging environments. With a protection class of IP40, it is designed to withstand dust and other environmental factors. The operating temperature range of 0 to 60°C ensures its suitability for a variety of industrial conditions, providing consistent performance in temperature-sensitive processes.
Manufacturer: Burster
Type: In-Line Amplifier
Model: 9235
The Burster In-Line Amplifier 9235 is ideal for applications that require precise signal amplification and stable performance in a wide range of industrial environments.
| Connection Technology | 4-wire |
| Sensor Excitation Voltage | 2.5 V |
| Excitation Current | 10 mA max. |
| Power Consumption | 0.3 VA |
| Power Supply | 15 ... 30 V DC |
| Protection Class | IP40 |
| Operating Temperature | 0 ... 60 °C |
| Material | Aluminium |
| Dimensions (W x H x D) | 62 x 55 x 16 mm |
