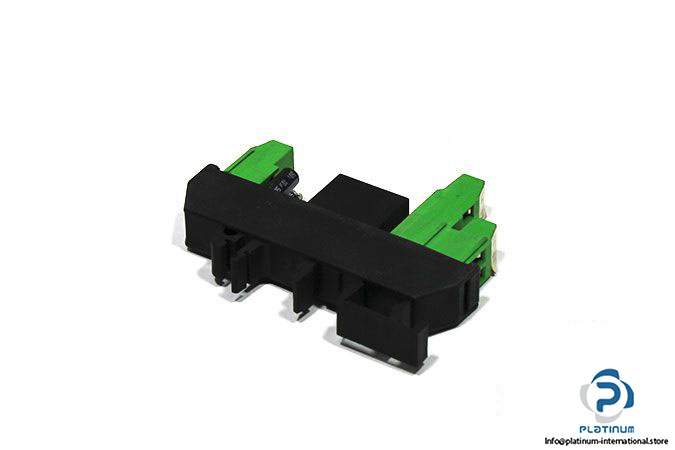

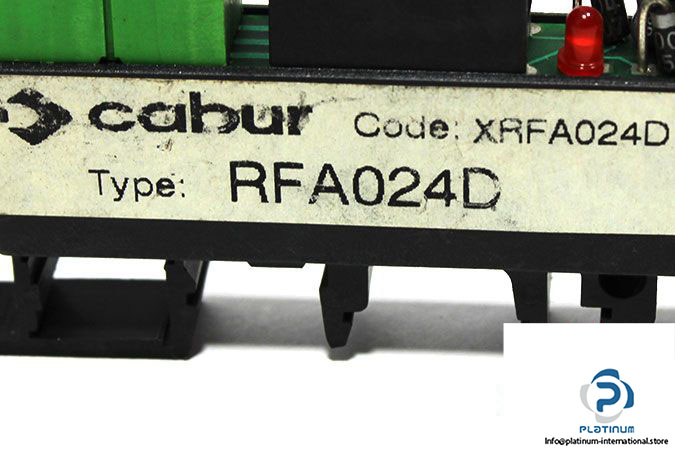

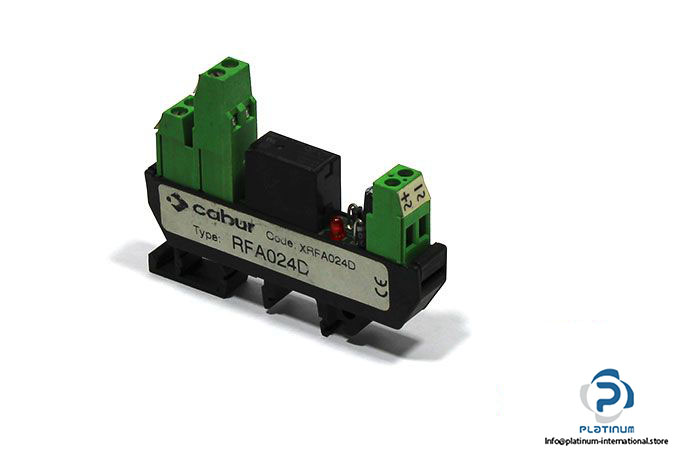

Cabur RFA024D Electromechanical Relay Modules Single Channel

Manufacturer: Cabur

Type: Electromechanical Relay Modules Single Channel

Model: RFA024D

Code: XRFA024D

Input Rated Voltage: 24 Vdc ±10%

Pull Indrop Out Voltage Type: 18.4 V / 2.4 V

Current Consumption: 15 mA ±10%

Output Nominal Current: 5 A (250 Vac)

Max Output Current: 10 A

Turn ON OFF Time: 15 ms / 5 ms

Connection Type: 2.5 mm² screw type

Input Channels: 1 not pluggable

Operating Temperature: -20…70 °C

Material: UL94V-0 plastic material

Dimensions: 12 x 77 x 52 mm

Weight: 35 g
