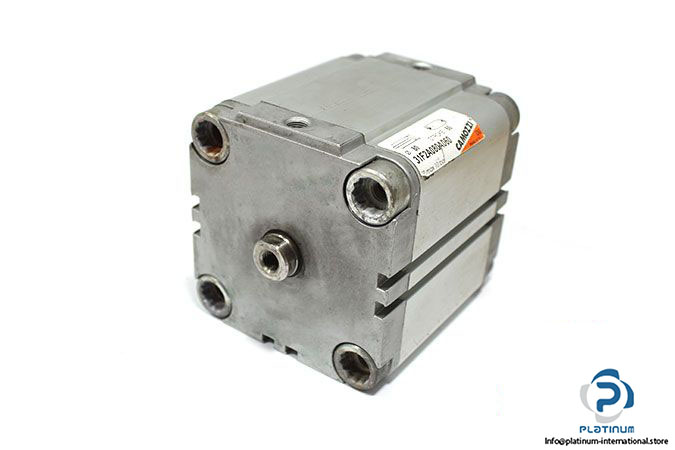

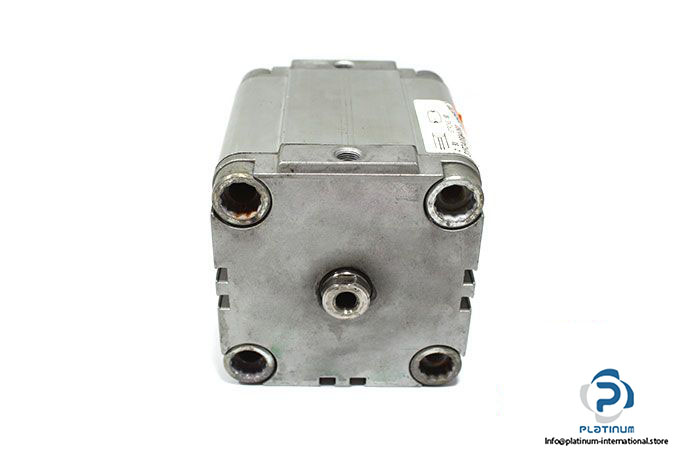

Camozzi 31F2A080A060 Compact Cylinder
Manufacturer: CAMOZZI
Type: Double-Acting Compact Cylinder

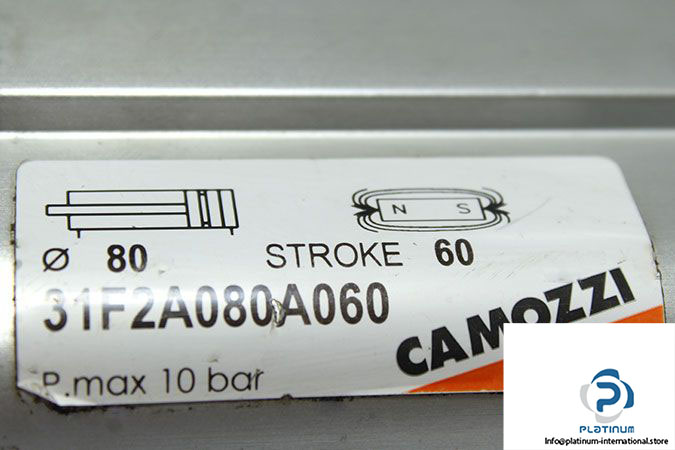

Model: 31F2A080A060
Materials
,,Rod: Rolled Stainless Steel AISI 303
,,Tube Profile: Aluminum
Stroke Length: 60 mm
Bore Diameter: 80 mm
Piston-rod Thread: M10
Piston rod end: Female thread
Max. Operating Pressure: 10 bar
Mode of operation: Double-Acting
Pneumatic Connection: G 1/8
Design Type: Standard
Temperature: 0 … 80 °C
Weight: 2.70 kg
