Camozzi 40N2A040A0300 ISO Cylinder
Used
In stock1 unitReady to ship
ISO Cylinder
CAMOZZI 40N2A040A0300 ISO Cylinder is designed for high-precision pneumatic applications. With a 40 mm bore and 300 mm stroke, it features double-acting operation, a male piston rod end, and a square-shaped frame for enhanced stability and durability.1/4300mm40mm40N2A040A0300ActuatorAirAutomationboreCamozziComCompressedconnectionControlCylinderdouble-actingEndGhigh-precisionIndustrialISOmaleMotionPistonPneumaticRODSquareStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

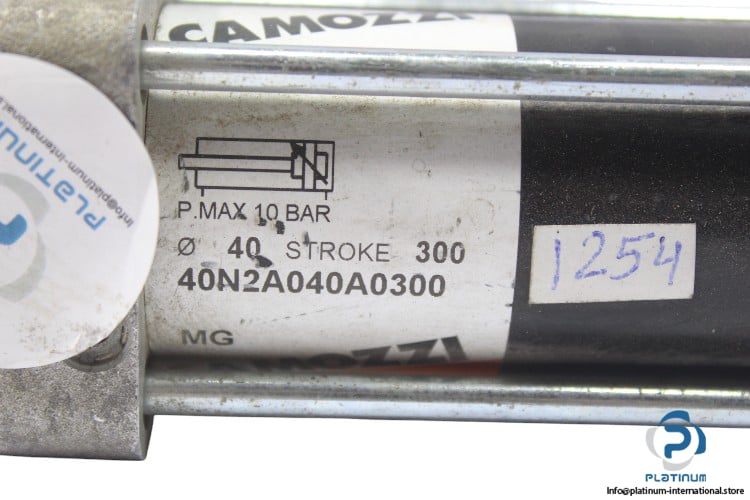

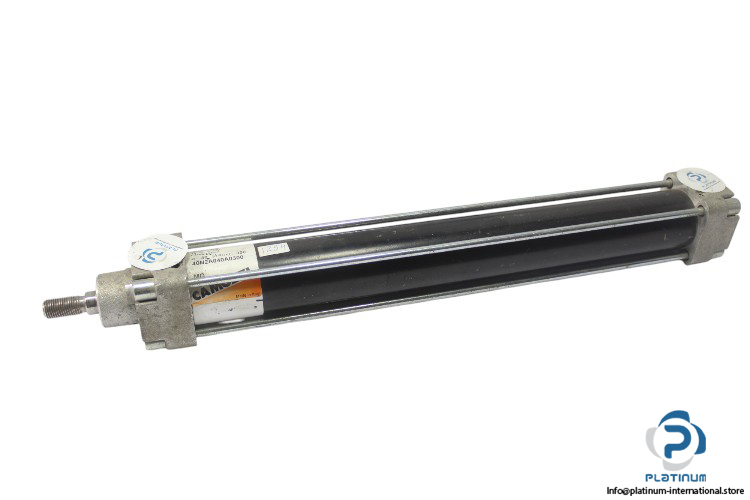

CAMOZZI 40N2A040A0300 ISO Cylinder
The CAMOZZI 40N2A040A0300 ISO Cylinder is a high-performance pneumatic actuator designed for precision motion control in industrial applications. Built for durability and efficiency, this double-acting cylinder ensures reliable operation in automation systems requiring smooth and consistent movement.
Manufacturer: CAMOZZI
Type: ISO Cylinder
Model: 40N2A040A0300
| Media | Compressed Air |
| Bore Diameter | 40 mm |
| Stroke | 300 mm |
| Bore x Stroke | 40 x 300 mm |
| Rod Diameter | 16 mm |
| Frame Dimensions | 54 x 435 mm |
| Pneumatic Connection | G 1/4 |
| Pressure Max. | 10 bar |
| Operation Mode | Double |
| Piston Rod End | Male |
| Shape | Square |
| Rod Direction | One Side |
