Camozzi 60N2L050A0320 ISO Cylinder
Used
In stock2 unitsReady to ship
ISO Cylinder
The Camozzi 60N2L050A0320 ISO Cylinder delivers precise pneumatic motion with a 50 mm bore, 320 mm stroke, square shape, and double-acting operation mode.1/4203205060N2L050A0320ActingActuatorAirAutomationboreCamozziCompressedconnectionCylinderdiameterDoubleframeGIndustrialISOmmPneumaticRODSquareStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

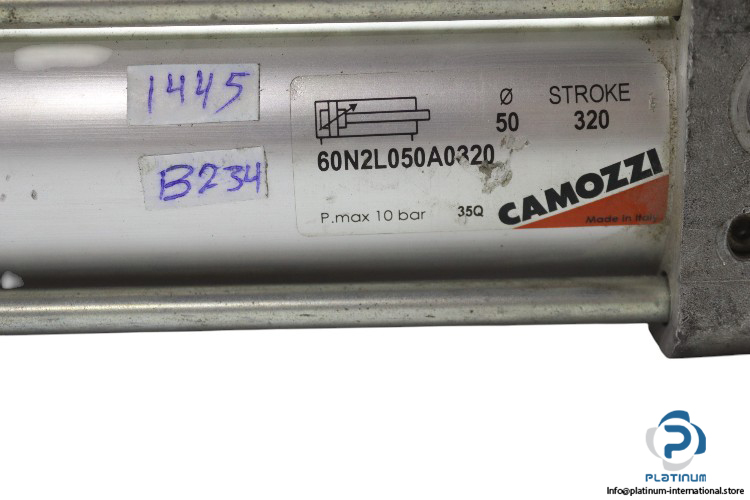

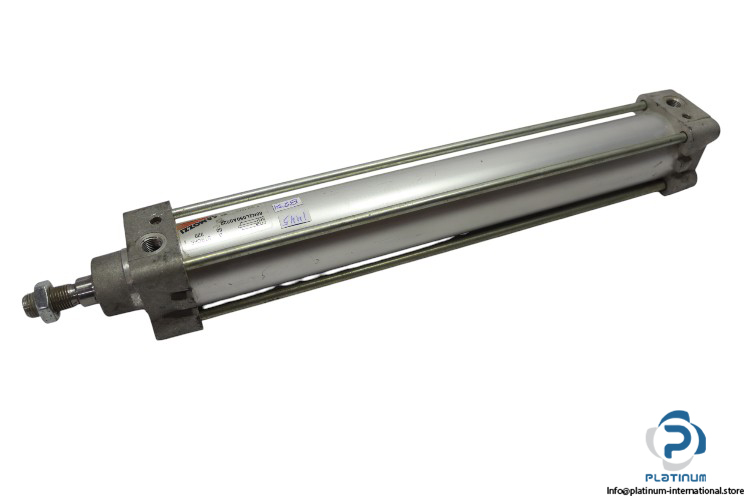

Camozzi 60N2L050A0320 ISO Cylinder
The Camozzi 60N2L050A0320 ISO Cylinder is designed for reliable and precise linear motion using compressed air. With a robust square shape and double operation mode, this pneumatic actuator is suitable for demanding industrial applications.
Manufacturer: CAMOZZI
Type: ISO Cylinder
Model: 60N2L050A0320
| Media | Compressed Air |
| Bore Diameter | 50 mm |
| Stroke | 320 mm |
| Bore x Stroke | 50 x 320 mm |
| Rod Diameter | 20 mm |
| Frame Dimensions | 64 x 455 mm |
| Pneumatic Connection | G 1/4 |
| Pressure Max. | 10 bar |
| Operation Mode | Double |
| Piston Rod End | Male |
| Shape | Square |
| Rod Direction | One Side |
