Camozzi 61M2P063A0300 ISO Cylinder
Used
In stock1 unitReady to ship
ISO Cylinder
CAMOZZI ISO Cylinder 61M2P063A0300 is designed for use with compressed air. With a 63 mm bore diameter, 300 mm stroke, and a square shape, it offers reliable performance in industrial systems. Features include a G 3/8 pneumatic connection, male piston rod end, and a pressure rating of 10 bar.3/830061M2P063A030063AirboreCamozziCompressedconnectionCylinderdiameterDoubleEndGIndustrialISOmalemmOperationPistonPneumaticRODSquareStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

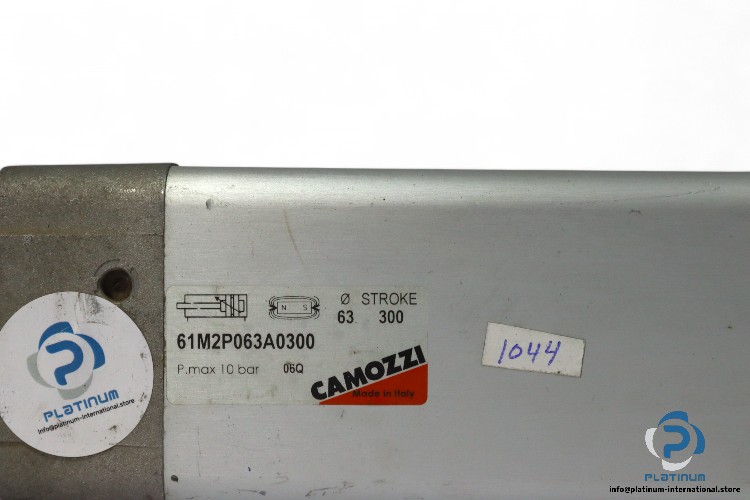

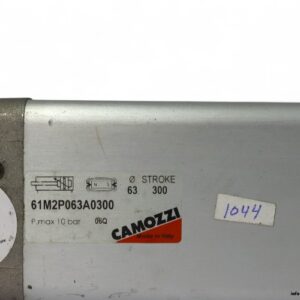

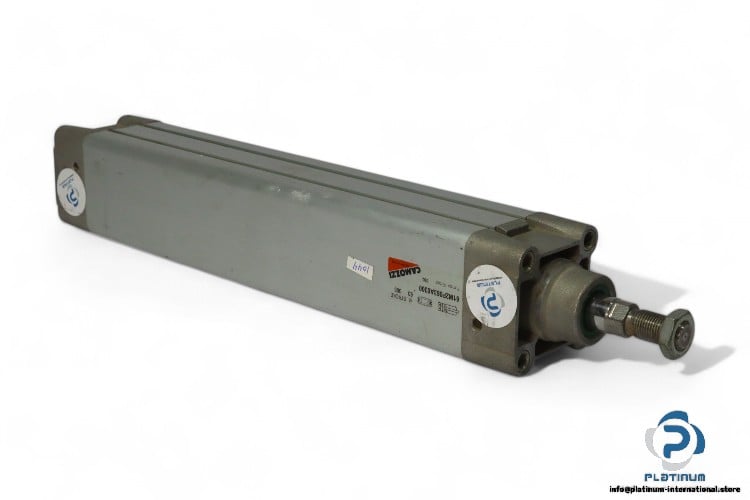

CAMOZZI ISO Cylinder 61M2P063A0300
The CAMOZZI ISO Cylinder 61M2P063A0300 is a high-performance pneumatic cylinder designed for industrial applications. With a 63 mm bore diameter and a 300 mm stroke, this cylinder delivers reliable and efficient performance with compressed air, meeting the demands of various machinery and automation systems.
Manufacturer: CAMOZZI
Model: 61M2P063A0300
Technical Specifications
- Media: Compressed Air
- Bore Diameter: 63 mm
- Stroke: 300 mm
- Bore x Stroke: 63 x 300 mm
- Rod Diameter: 20 mm
- Frame Dimensions: 75 x 450 mm
- Pneumatic Connection: G 3/8
- Pressure Max.: 10 bar
- Operation Mode: Double
- Piston Rod End: Male
- Shape: Square
- Rod Direction: One Side
