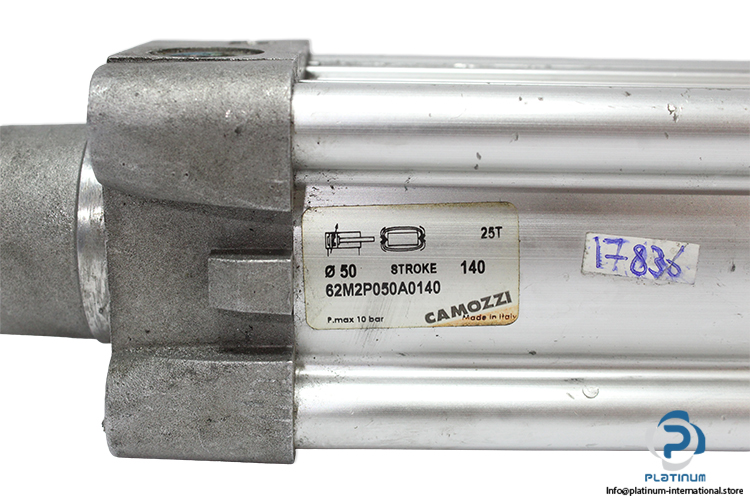

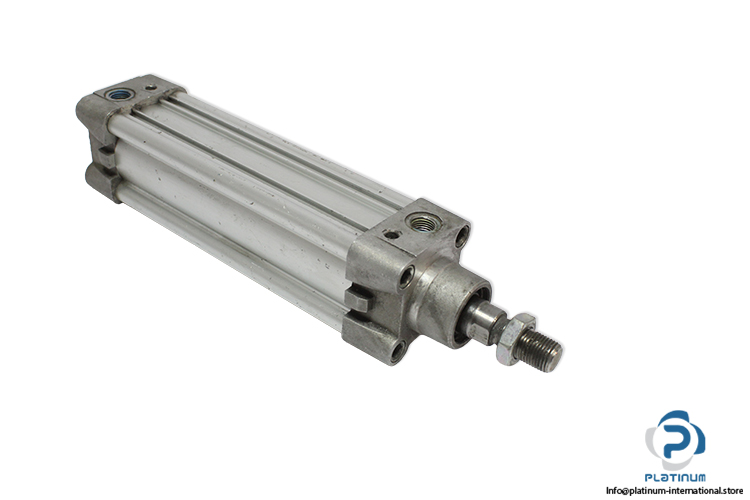

Camozzi 62M2P050A0140 Pneumatic Cylinder
Pneumatic Cylinder
Camozzi Series 62 double-acting pneumatic cylinder with 50 mm piston diameter and 140 mm stroke for industrial automation applications.Camozzi 62M2P050A0140 Pneumatic Cylinder
A high-quality pneumatic cylinder manufactured by Camozzi, designed for reliable linear motion in industrial automation systems. Part of the Series 62 range, this double-acting cylinder delivers smooth operation, precise control, and long service life under demanding pneumatic applications.
Manufacturer: Camozzi
Type: Pneumatic Cylinder
Series: 62
Model: 62M2P050A0140
Code: 25T
Materials:
AL End-Blocks
Techno Polymer Piston
Rolled Stainless Steel AISI 420B Piston Rod
Zinc-Plated Steel Piston Rod Nut
Anodized Aluminum Profile Tube
Zinc-Plated Steel Tie-Rods and Nuts
NBR Piston Rod and Piston Seals
Application:
Linear motion and actuation in pneumatic automation systems, machinery, and industrial equipment
Recommendation:
This Camozzi pneumatic cylinder is ideal for automation systems requiring accurate and durable linear actuation. For optimal performance and extended service life, it is recommended to combine this cylinder with high-quality Air Filters to ensure clean compressed air and reliable Sensors for position monitoring and system control, all available from Platinum International.
| Operating Medium | Filtered Air |
| Mode of Operation | Double Acting |
| Stroke Length | 140 mm |
| Piston Diameter | 50 mm |
| Piston Rod End | Male Thread |
| Variants | Piston Rod at One End |
| Shape | Square |
| Maximum Operating Pressure | 10 bar |
| Pneumatic Connection | G 1/4 |
| Operating Temperature | 0 to 80 °C |
| Speed | 10 to 1000 mm/sec |
