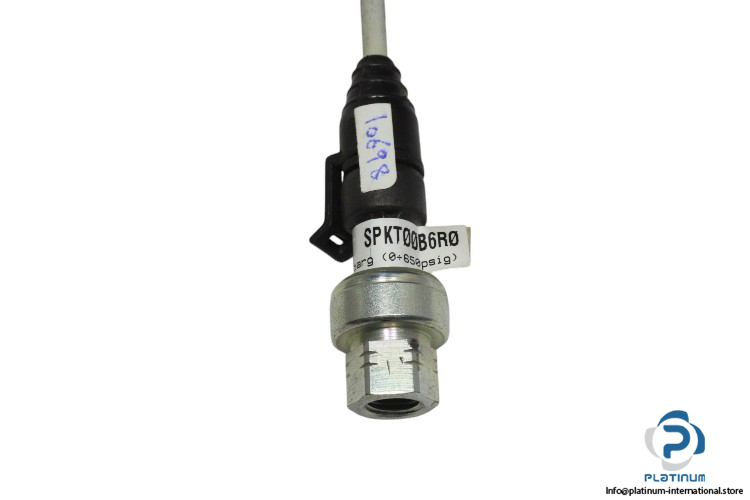

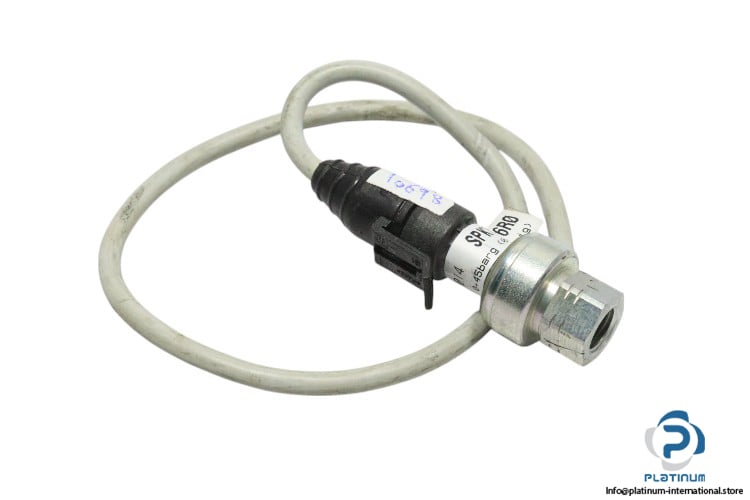

Carel SPKT00B6R0 Pressure Transducer
Pressure Transducer
CAREL Pressure Transducer SPKT00B6R0 with a pressure range of 0 to 45 bar / 0 to 650 PSIG, 5 V DC power supply, and ratio metric 0.5 to 4.5 V DC output signal. Features IP65 protection and operates within a temperature range of -40 to 135°C.CAREL Pressure Transducer SPKT00B6R0
The CAREL Pressure Transducer SPKT00B6R0 is designed to provide precise pressure measurement in pneumatic and hydraulic systems. With a pressure range of 0 to 45 bar / 0 to 650 PSIG, this transducer is ideal for various industrial applications requiring accurate and reliable pressure sensing. The transducer operates with a 5 V DC power supply and provides a ratio metric output signal ranging from 0.5 to 4.5 V DC. It features a G 1/8 pneumatic connection and boasts a protection class of IP65, ensuring durability in harsh environments. With an operating temperature range of -40 to 135°C, this pressure transducer is suited for a wide variety of industrial conditions.
Manufacturer: CAREL
Type: Pressure Transducer
Model: SPKT00B6R0
Technical Specifications
- Pressure Range: 0 / 45 bar / 0 / 650 PSIG
- Power Supply: 5 V DC
- Output Signal: Ratio Metric 0.5 / 4.5 V DC
- Pneumatic Connection: G 1/8
- Protection Class: IP65
- Operating Temperature: -40 / 135 °C
