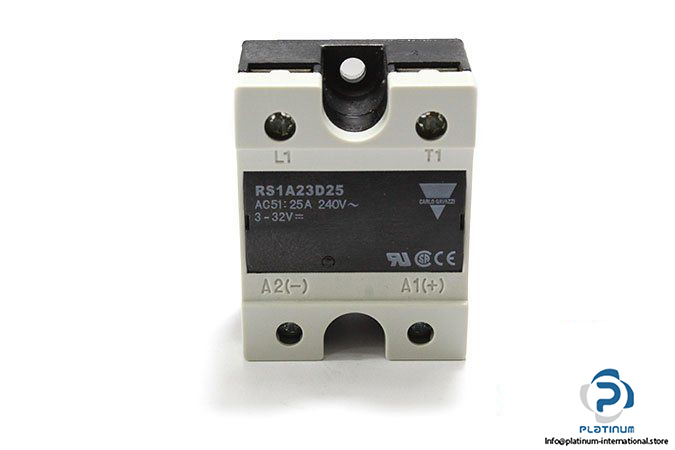

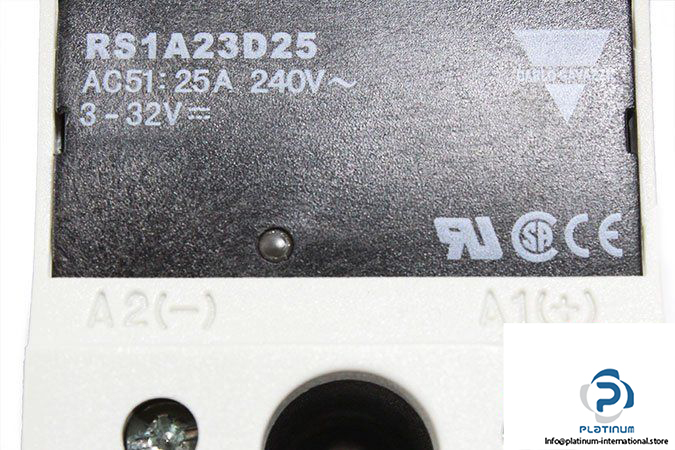

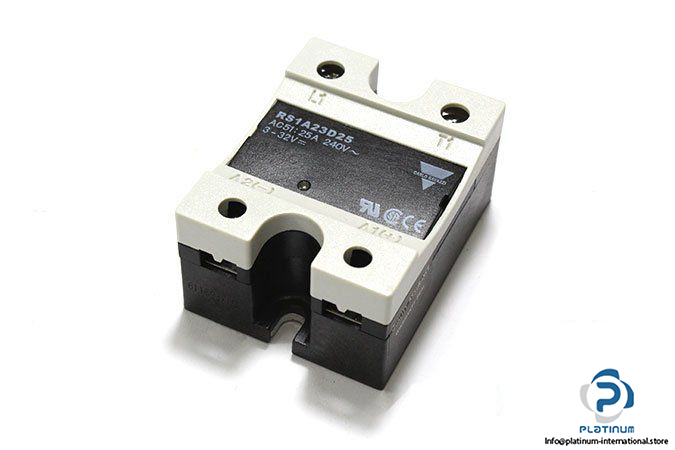

Carlo Gavazzi RS1A23D25 Solid State Relay
Manufacturer: CARLO GAVAZZI
Type: SOLID STATE RELAY
Model: RS1A23D25
Videojet part No.: 240342
Features:
- Zero switching AC Solid State Relay
- LED indication, Clip-on IP 20 protection cover
- Self-lifting terminals
- Housing free of moulding mass
- Operational ratings up to 40 A and 480 VAC
- Blocking voltage: Up to 1200 Vp
Housing material: Noryl GFN 1
Base plate Material: Aluminium
Switching mode: Zero Crossing
Rated operational current: 25 A
Operational voltage range: 42 … 265 V AC
Input Voltage Range: 3-32 V DC
Min. operational current: 150 mA
Number of poles: 1 Pole
Max Power Factor: 0.95
Frequency: 45 … 65 Hz
Operating Temperature: -40 … 80 °C
Weight: 0.06 kg
