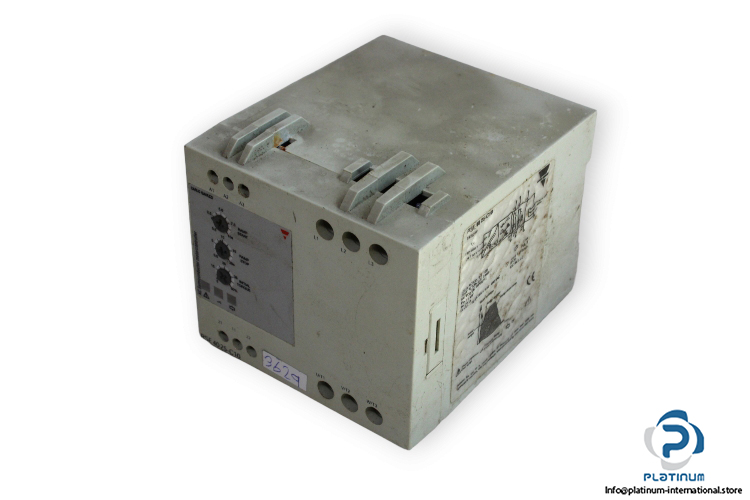

Carlo Gavazzi RSE 4025-C10 Semiconductor Motor Controller

Manufacturer: Carlo Gavazzi
Type: Semiconductor Motor Controller
Model: RSE 4025-C10
Part No.: 143216

Rated operational voltage (Ue): 400 V AC, 50/60 Hz
Rated operational current (Ie): 25 A
Control voltage (Uc): 24 … 110 V AC/DC, 110 … 480 V AC
Rated power (Pe): 11 kW
Rated operational power: 5 VA
Rated insulation voltage (Ui): 630 V rms
Overload current profile (overload relay trip class): 25 A: AC-53b: 4-3: 120/ 25 A: AC-53b: 6-6: 1440
Rated impulse withstand volt. (Uimp): 4 kV (1.2/50 µs)
Pollution degree: 3
Control relay: 2 control relays mounted (1 NO,1 NC)
Terminals: Screw with captive wire clamp
Degree of protection: IP 20
Operating temperature: -20 … +50°C
Dimensions: 90 x 102.5 x 77 mm
