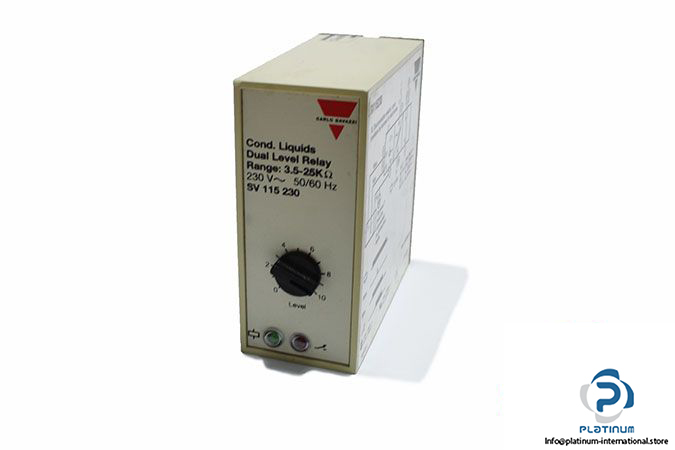

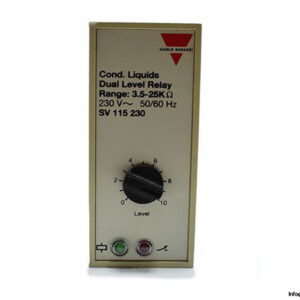

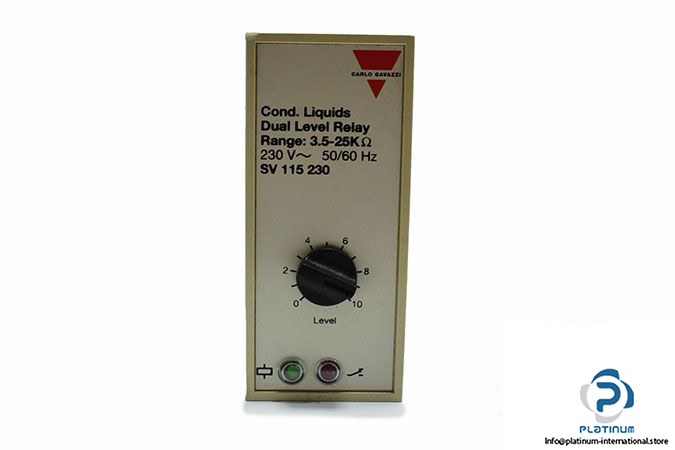

Carlo Gavazzi SV 115 230 Dual Level Relay

Manufacturer: CARLO GAVAZZI

Type: Dual Level Relay

Model: SV 115 230

Supply Voltage: 230 VAC

Output: SPDT

Level Probe Current: max. 2.5 mA

Pollution Degree: 3

Power Consumption: 2.5 VA

Contact Rating:

• AC 1:250 VAC, 10 A
• AC 15: 230 VAC, 2.5 A
• DC 1: 250 VDC, 1 A
• DC 13: 24 VDC, 5 A

Protection Class: IP 20

Operating Temperature: -20 … +50 °C

Dimensions: 35 X 92 X 80 mm

Weight: 0.18 Kg
