Carpanelli MBC56B4 AC Gearmotor
Used
In stock4 unitsReady to ship
566,66$

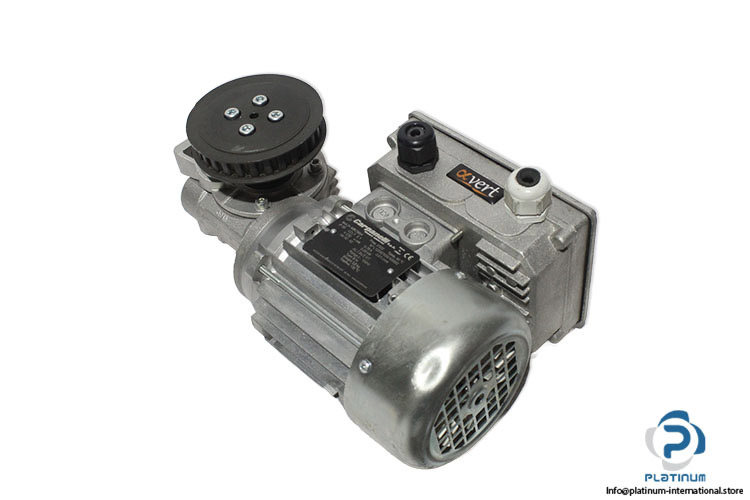

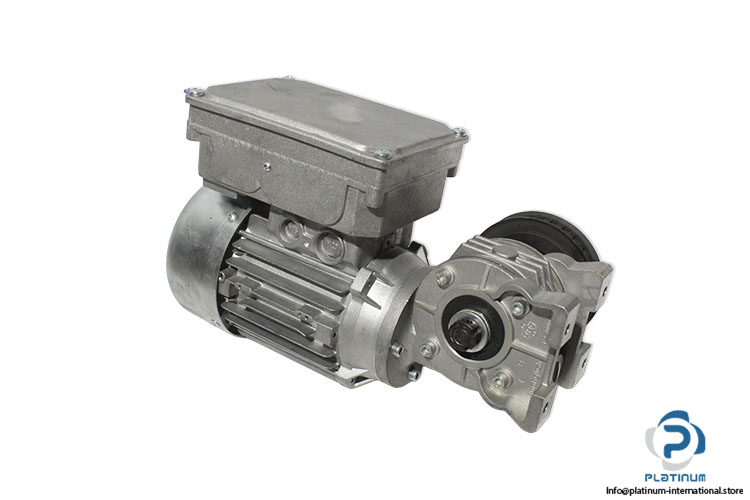

The CARPANELLI MBC56B4 AC Gearmotor with Bonfiglioli VF30 right angle gearbox is a compact and efficient industrial drive solution designed for continuous-duty motion control and power transmission applications. Featuring 0.09kW output, 230V operation, IP55 protection, S1 duty rating, and a 70:1 gearbox ratio for reliable performance.
Rated Power:
0.09 kW
Rated Voltage:
230 V
Rated Current:
0.78 A
Frequency Range:
50 – 60 Hz
Protection Class:
IP55
Mounting Type:
B14 Flange
Gear Ratio:
70
Duty:
S1
ACAngleAutomationBonfiglioliCarpanelliControlDriveElectricFlangeGearGearboxGearmotorIndustrialIP55MotionmotormountPowerRightSystTransmission
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

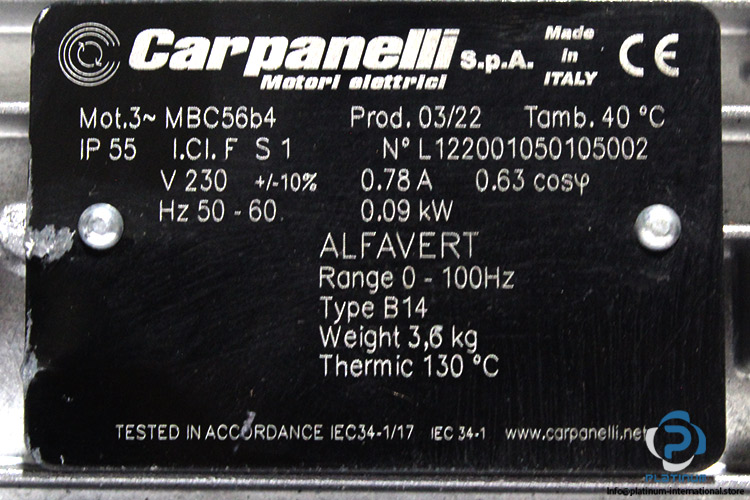

| N L. | 122001050105002 |
| Prod. | 03/22 |

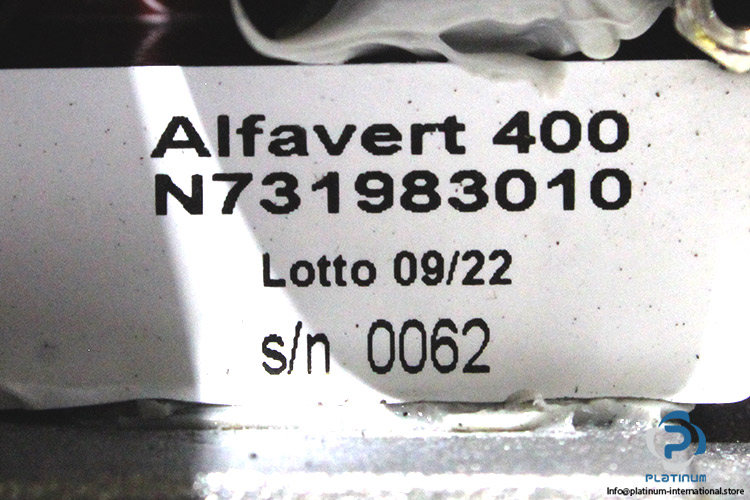

| Code | N731983010 |
| s/n | 0062 |
| Series | ALFAVERT 400 |
| Rated Power [kW] | 0.09 |
| Rated Voltage [V] | 230 |
| Rated Current [A] | 0.78 |
| Power Factor | 0.63 |
| Frequency Range[Hz] | 50 - 60 |
| Duty | S1 |
| Insulation class | F |
| Protection Class | IP 55 |
| Thermal Protection | 130 °C |
| Mounting Type | B14 flange |

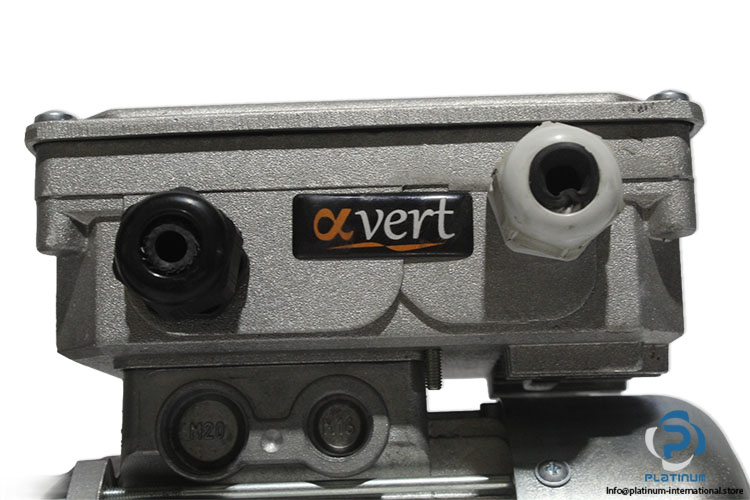

| Connection | Terminal box |
| Frequency setting from[Hz] | 1 to 100 |

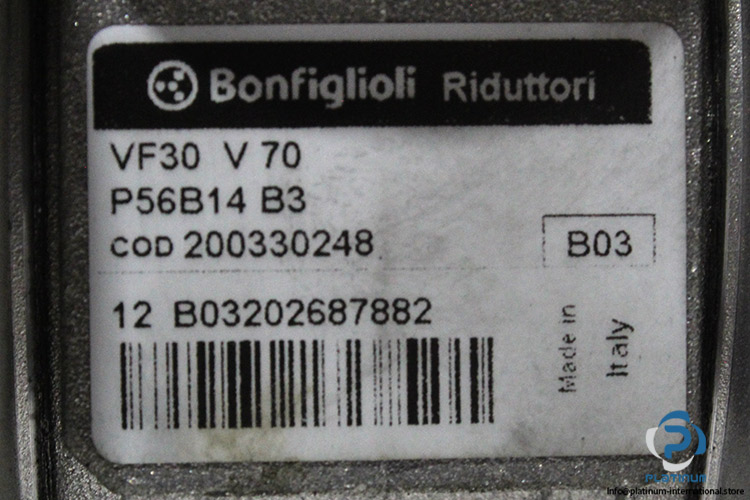

| Attached with | Bonfiglioli Riduttori VF30 V 70 P56B14 B3 Right Angle Gearbox |
| CODE, Gearbox | 200330248 |
| SN, Gearboxes | 12 B03202687882 |
| Series , Gearboxes | VF |
| Frame Size | 30 |
| Ratio | 70 |
| Stock key | jo-004 |
| Condition | Used |
| SKU | 1099023 |
| Weight | 5,75 |
