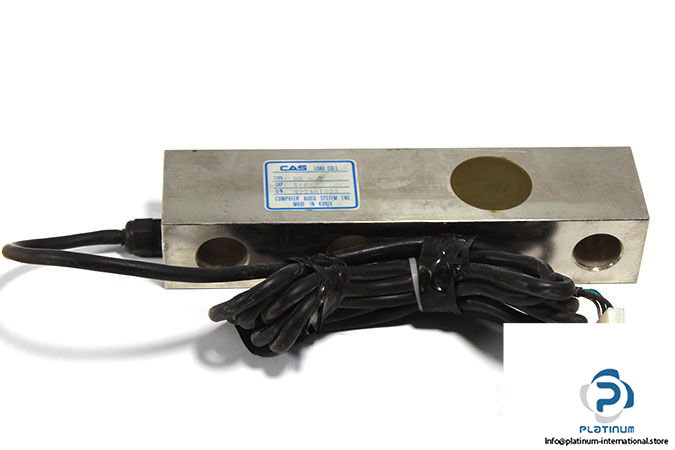

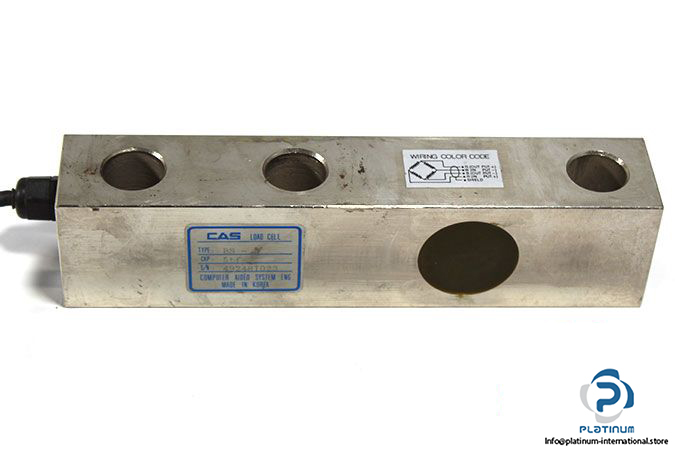

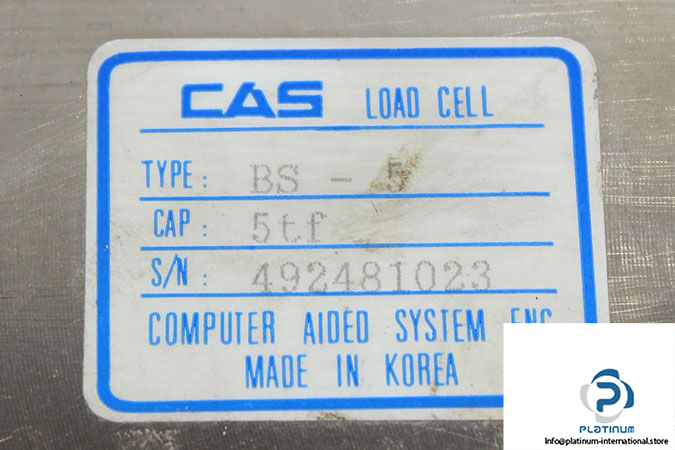

CAS BS-5 MAX 5000 KG Shear Beam Load Cell

Manufacturer: CAS

Type: Shear Beam Load Cell

Model: BS-5

FEATURES

• Low Price High Accuracy
• Protection Class IP65

Maximum weight limit (E max): 5000 kg (5t)

Rated Output: 2.0 ± 0.005 mV/V

Excitation Voltage: 10 V

Max. Excitation Voltage: 15 V

Input Resistance: 400 ± 20 Ω

Output Resistance: 350 ± 5 Ω

Operating Temperature: -20…80 °C

Element Material: Nickel Plated Steel

Protection Class: IP65

Weight: 2.400 kg
