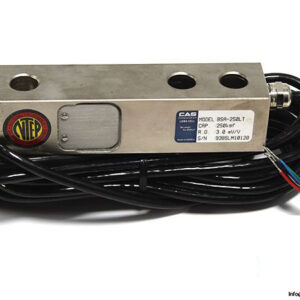

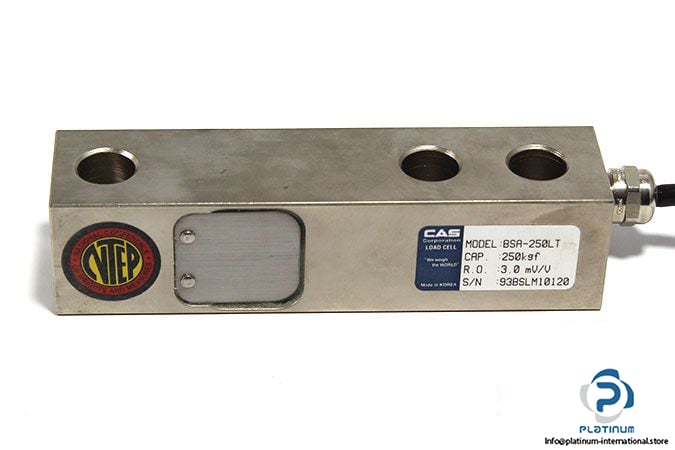

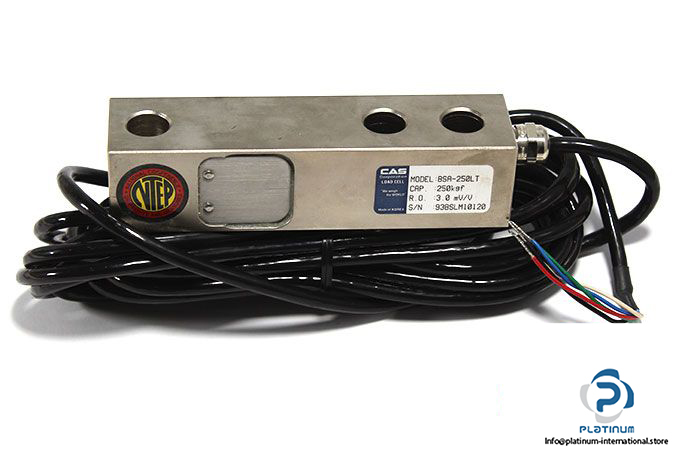

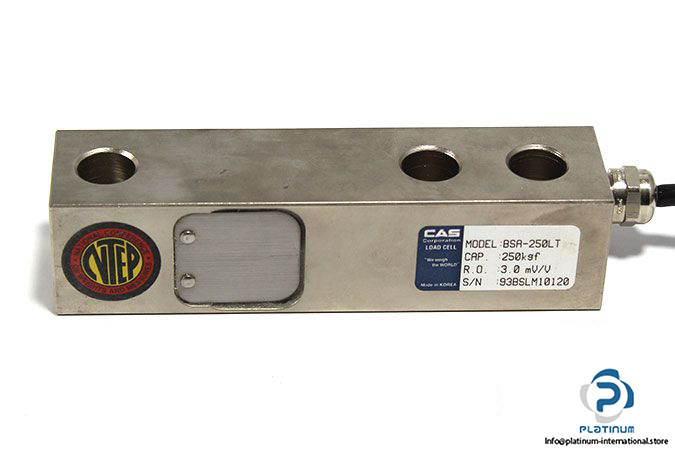

CAS BSA-250LT MAX 250 KG Shear Beam Load Cell

Manufacturer: CAS

Type: Shear Beam Load Cell

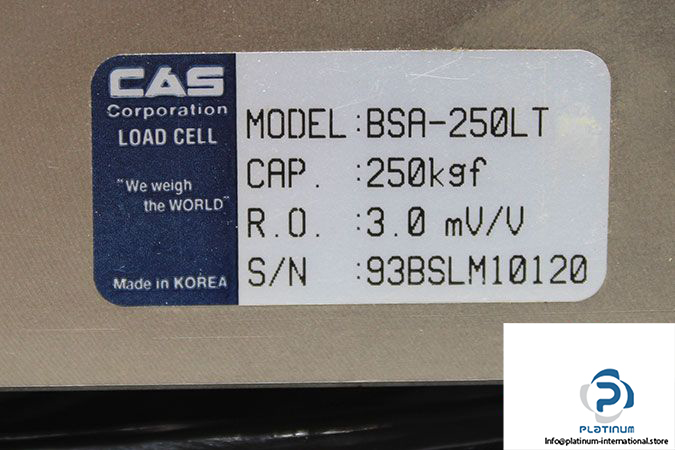

Model: BSA-250LT

FEATURES

• OIML C3 Approved (OIML R60)
• Protection Class IP66
• Option: Imperial Ver
• Option: Tend Ver

Maximum weight limit (E max): 250 kg

Rated Output: 3.0 ± 0.0075 mV/V

Excitation Voltage: 10 V

Max. Excitation Voltage: 15 V

Input Resistance: 350 ± 3.5 Ω

Output Resistance: 350 ± 3.5 Ω

Operating Temperature: -30…80 °C

Element Material: Nickel Plated Steel

Class: D3

Protection Class: IP66

Weight: 1.120 kg
