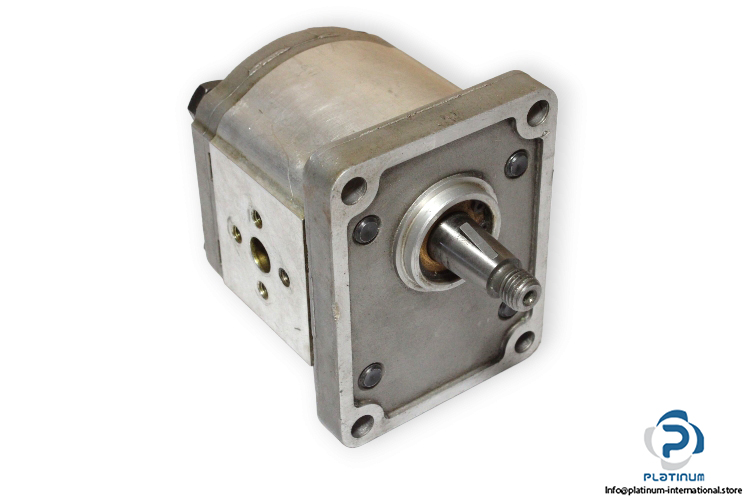

Casappa PLP20.8D-82E2-LEA/EA-N-EL Gear Pump
In stock1 unitReady to ship
249,99$
Manufacturer:
CASAPPA
Type:
Gear Pump
Model:
PLP20.8D-82E2-LEA/EA-N-EL
Part No.:

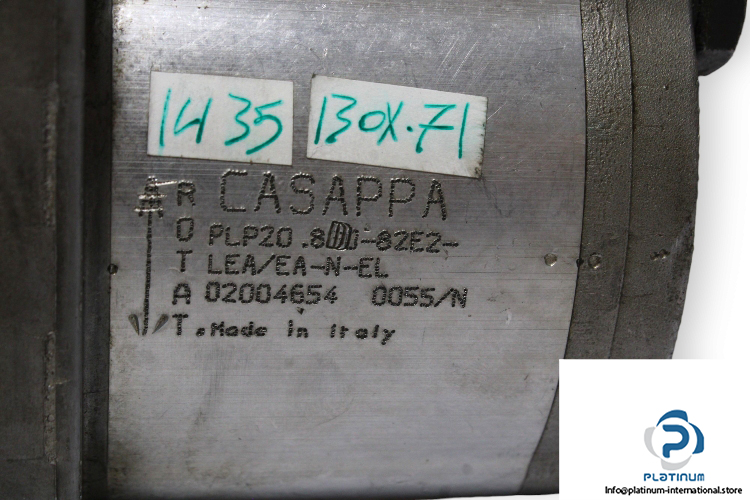

02004654 0055/N
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Manufacturer: CASAPPA
Type: Gear Pump
Model: PLP20.8D-82E2-LEA/EA-N-EL
Part No.: 02004654 0055/N
Number of mounting holes: 4
Shaft type: Tapered
Shaft cone size code: 1:8
Displacement: 8,26 cm³/rev
Max. continous working pressure: 250 BAR
Max intermittend working pressure: 280 BAR
Max pressure peak: 300 BAR
Max rotation speed: 3500 r/min
Prefered rotation direction: Clockwise (CW)
Port position: Side
Housing length: 98 mm
Housing material: Aluminium
Flange and back cover material: Steel
