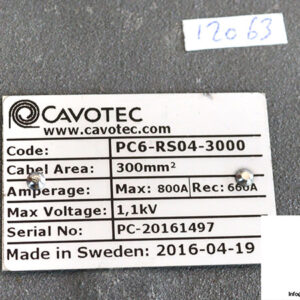

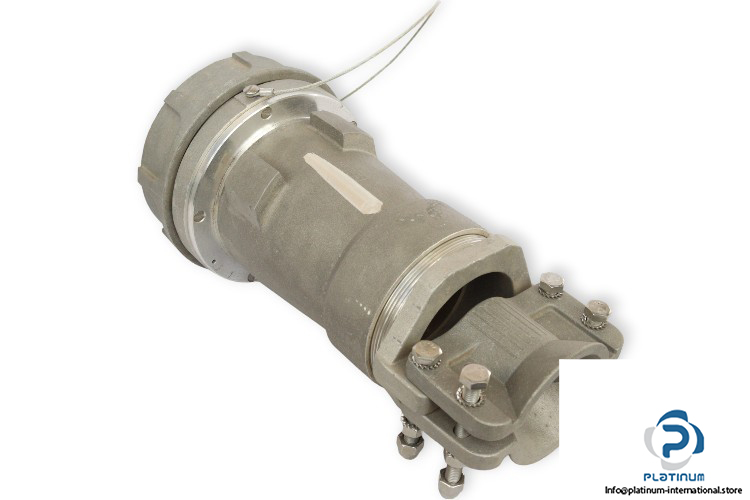

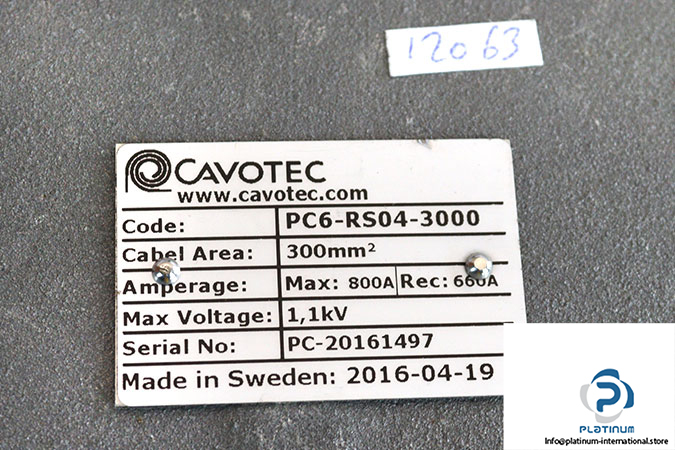

Cavotec PC6-RS04-3000 Power Connector

Manufacture: Cavotec
Type: Power Connector
Model: PC6RS043000
Series: PC6

Applications:
• RTG cranes
• Steel mills
• Mining and tunnelling
• Energy
• Railways
Current: 660 A
Voltage: max. 1,1 kV
Connection: Socket & connector with integrated cover operated by the push & pull arms
Terminal Material: silver plated brass

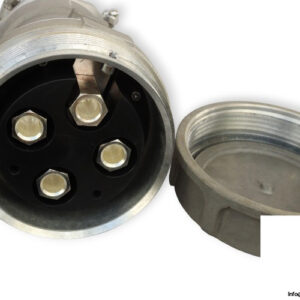

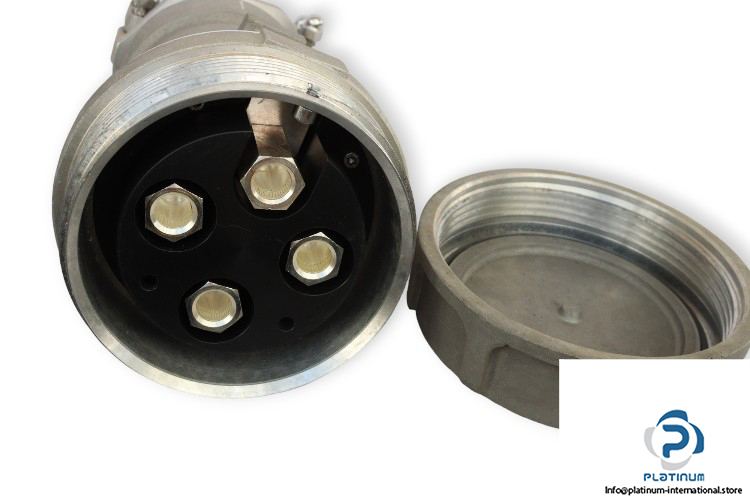

Contact Type: 4 Female contact, male pin and cable
Push & Pull arm material: : Bronze ISO 1338:1977
Push & Pull Size: X6
Cable glands: Cavotec “onion ring” gasket and strain relief covering cable outer diameters from Ø 45-110mm
Protection degree: IP66
Ambient Temperature: -40 … 80°C
Length: 799 mm
Cable Cross section: 300 mm²
Diameter: max. 110 mm
