CCS 604GZ2-7011 Pressure Switch
New
Available on request
189,99$
Pressure Switch
The CCS 604GZ2-7011 pressure switch offers a 0.62 to 5.2 bar range, stainless steel NPT process connection, SPDT switching, and high durability for oil and non-oil media applications.604G604GZ2-7011CCSComponentHighIndustrialMediamonitoringNPToilPressureSeriesSpdtstainlessSteelSwitch
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

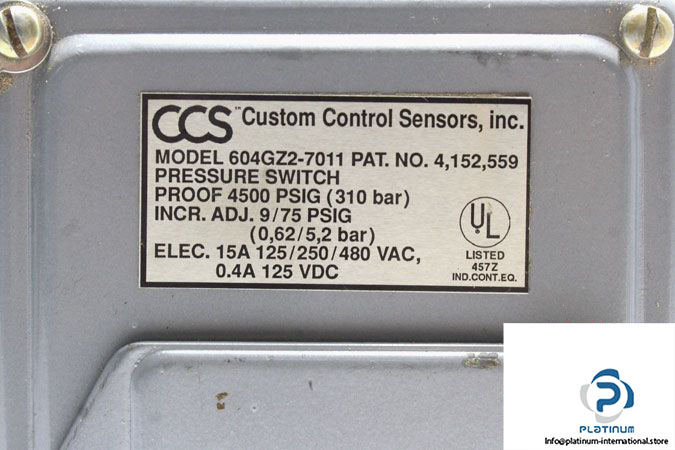

CCS 604GZ2-7011 Pressure Switch
The CCS 604GZ2-7011 Pressure Switch is a high-performance industrial switch designed for reliable pressure monitoring in oil-based and non-oil-based media. With a durable stainless steel process connection, wide pressure range, and robust electrical ratings, it ensures dependable operation in demanding environments.
Manufacturer: CCS
Type: Pressure Switch
Model: 604GZ2-7011
Pa No.: 4,152,559
Series: 604G
| Media | Oil based, Non-oil based |
| Increasing Pressure Range | 0.62 to 5.2 bar |
| Burst Pressure | 310 bar |
| Connection | G 1/2 threaded |
| Electrical Connection | G 3/4 cable entry |
| Supply Voltage | 125, 250, 480 V AC; 125 V DC |
| Maximum Current Rating | 0.4 A DC, 15 A AC |
| Fluid Temperature Range | minus 40 to 186 degrees Fahrenheit |
| Process Connection Fitting Size | Female 1/2 inch NPT |
| Process Connection Material | Stainless steel |
| Housing Enclosure | Aluminum |
| Electrical Connection Type | Female 3/4 inch NPT |
| Electrical Switch Type | SPDT |
