CD Automation CD3000S 1PH/45A/-/480V/NO/SSR/ZC/NF Solid State Relay SSR
New
Available on request
150,00$
Solid State Relay (SSR)
CD AUTOMATION CD3000S SSR, 45A single-phase unit from the SSR9 series, designed for resistance and IR load applications with analog control input and DC logic interface.45A480VACAnalogAutomationCDCD3000SControllerIndustrialInputPhasePowerRelaySeriesSingleSolidSSRSSR9State
Used
In stock
This product is also available used
View Used Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

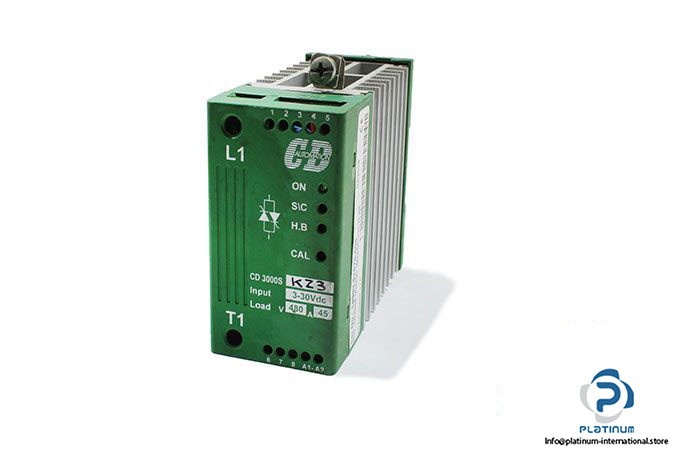

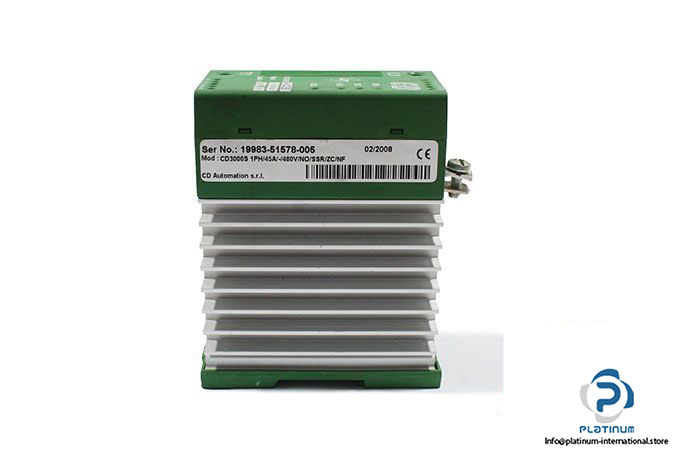

CD AUTOMATION CD3000S Solid State Relay SSR
The CD AUTOMATION CD3000S Solid State Relay from the SSR9 series is designed for precise and reliable power control in industrial heating and resistance load applications. It is ideal for normal resistance, medium wave, and long wave infrared load types, ensuring stable switching performance and efficient thermal management.
Manufacturer: CD AUTOMATION
Type: Solid State Relay (SSR)

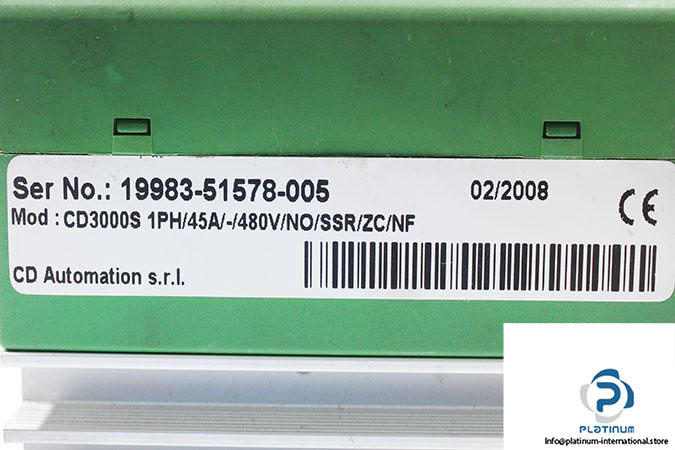

Model: CD3000S 1PH/45A/-/480V/NO/SSR/ZC/NF
| Series | SSR9 |
| Ideal For | Normal Resistance, Medium & Long Wave IR Load Types |
| Voltage Supply | 24 / 480 V AC |
| Frequency | 47 / 70 Hz |
| Current | 45 A |
| Power Loss | 54 W |
| Contact | Normally Open (NO) |
| Analog Input | 4 / 20 mA / 0 / 10 V |
| Input Signal | DC Logic |
| Panel Sealing | IP20 |
| Operating Temperature | 0 / 40 °C |
| Dimensions | 53 x 120 x 96 mm |
